We keep solid wood in shape
When processing large solid wood panels, a ridge strip is required as the swelling and shrinking of solid wood is a challenge in furniture construction.
This is where Pöttker's V-Stabilizer comes in and is the perfect solution to ensure stability and shape.
Do you want to build a table with a pull-out function? The V-Stabilizer is the ideal solution!
It decouples the table top from the frame with the optional M6 thread, creating a smart and stable connection for a functional table.
- V-Stabilizer decouples table top and function

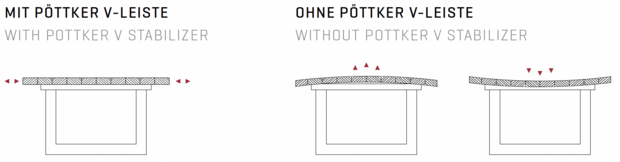

- Unhindered swelling and shrinkage: Table top floats freely on the V-Stabilizer
- Even with strong fluctuations in humidity: Function and stability remain unaffected
- Additional M6 thread: functional fittings are decoupled
- The frame remains precisely positioned: Table leaves are not affected
- 14 mm V-Stabilizer height for top thicknesses from 19 mm
- 16 mm V-Stabilizer height for top thicknesses from 24 mm
- In lengths from 300 to 1850 mm (in increments of 50 mm)

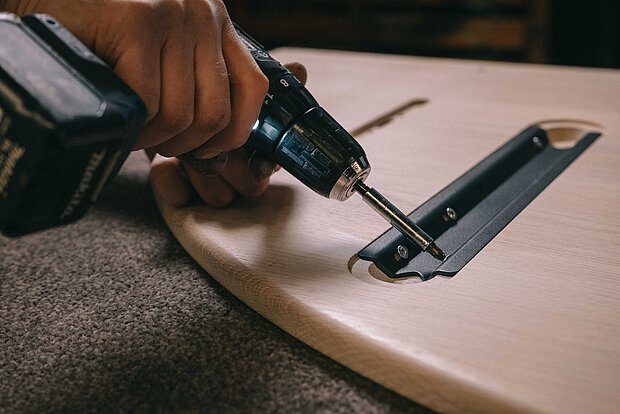

The Pöttker V-Stabilizer can be pre-milled with high precision using a specially developed milling head.
The milling heads are available in two sizes (14 mm and 16 mm), each of which is precisely matched to the V-Stabilizer for a perfect fit.
The milling heads are available for both CNC and manual milling machines, making them extremely versatile.
An outstanding feature of these milling heads is the ability to replace the knives on the CNC milling head, ensuring long service life and high flexibility.
The precise design of the milling head creates a stable and durable connection that meets the highest demands - ideal for professional table projects.
