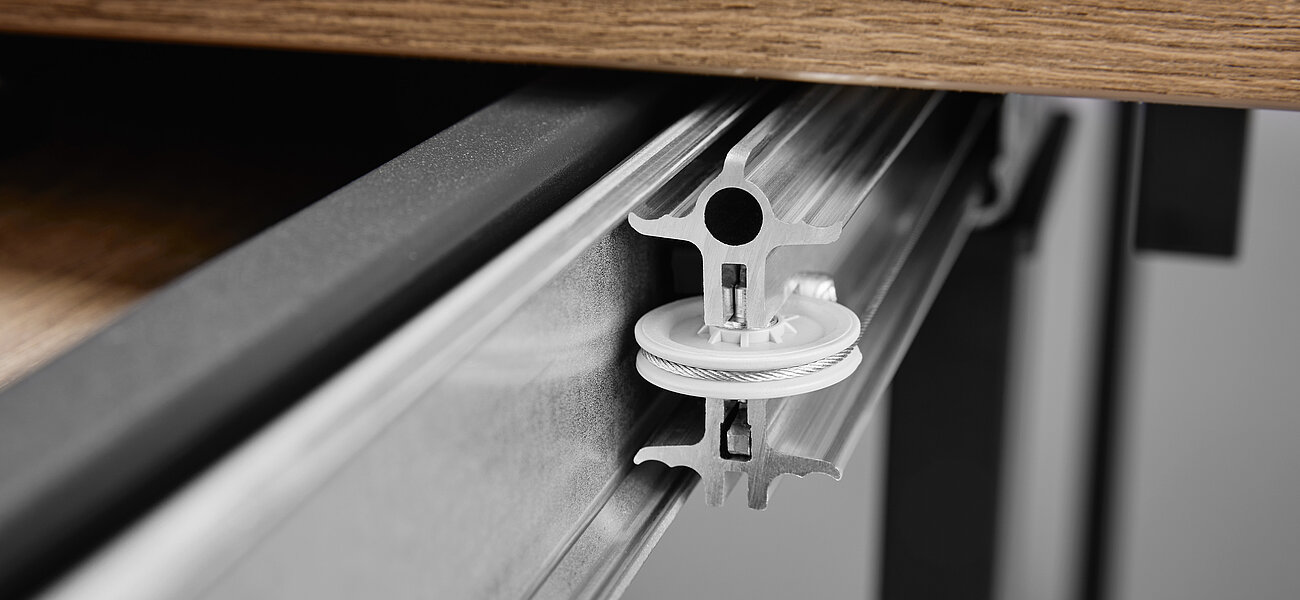

ALU/STEEL SLIDER 47

For tables with horizontal separation as top-against-frame

Benefits

Material

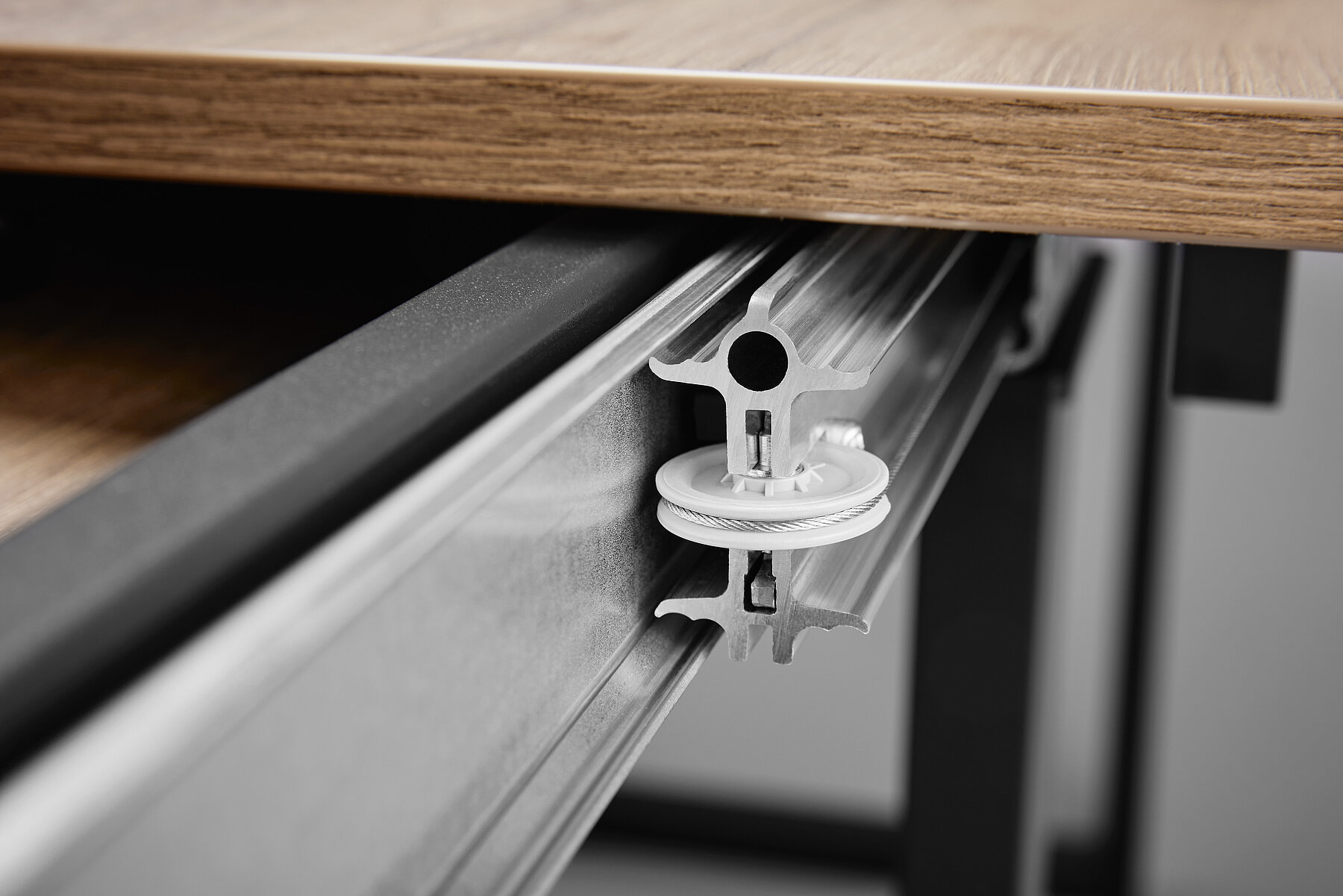

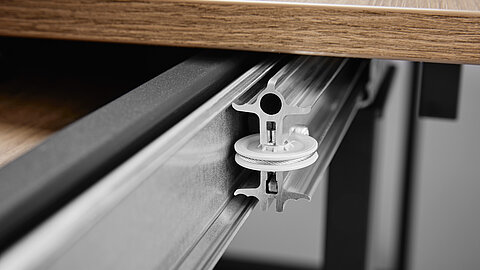

Steel and aluminum - the rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load capacities

The ALU/STEEL SLIDER 47 standard slides are dimensioned for 90 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Central base unit

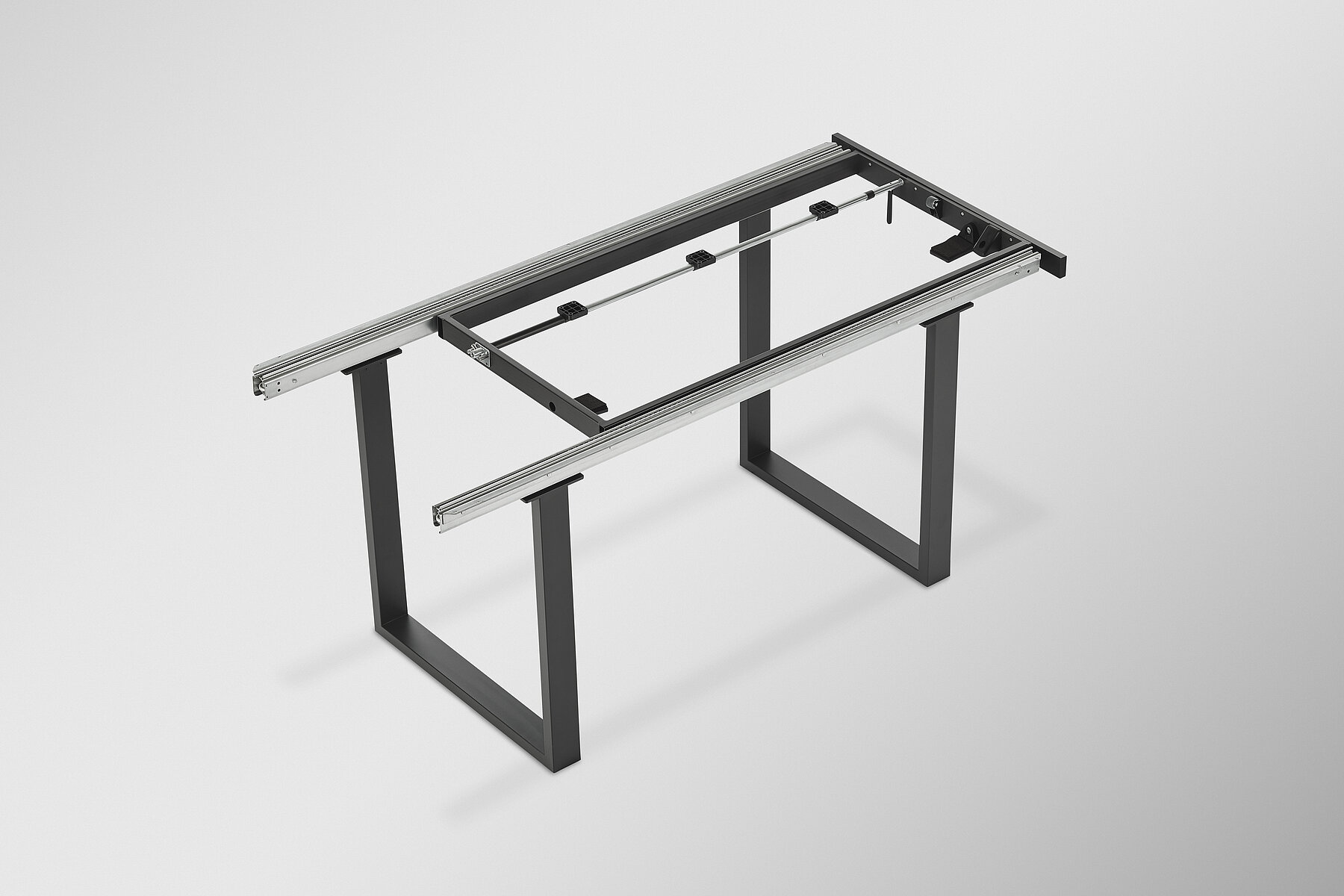

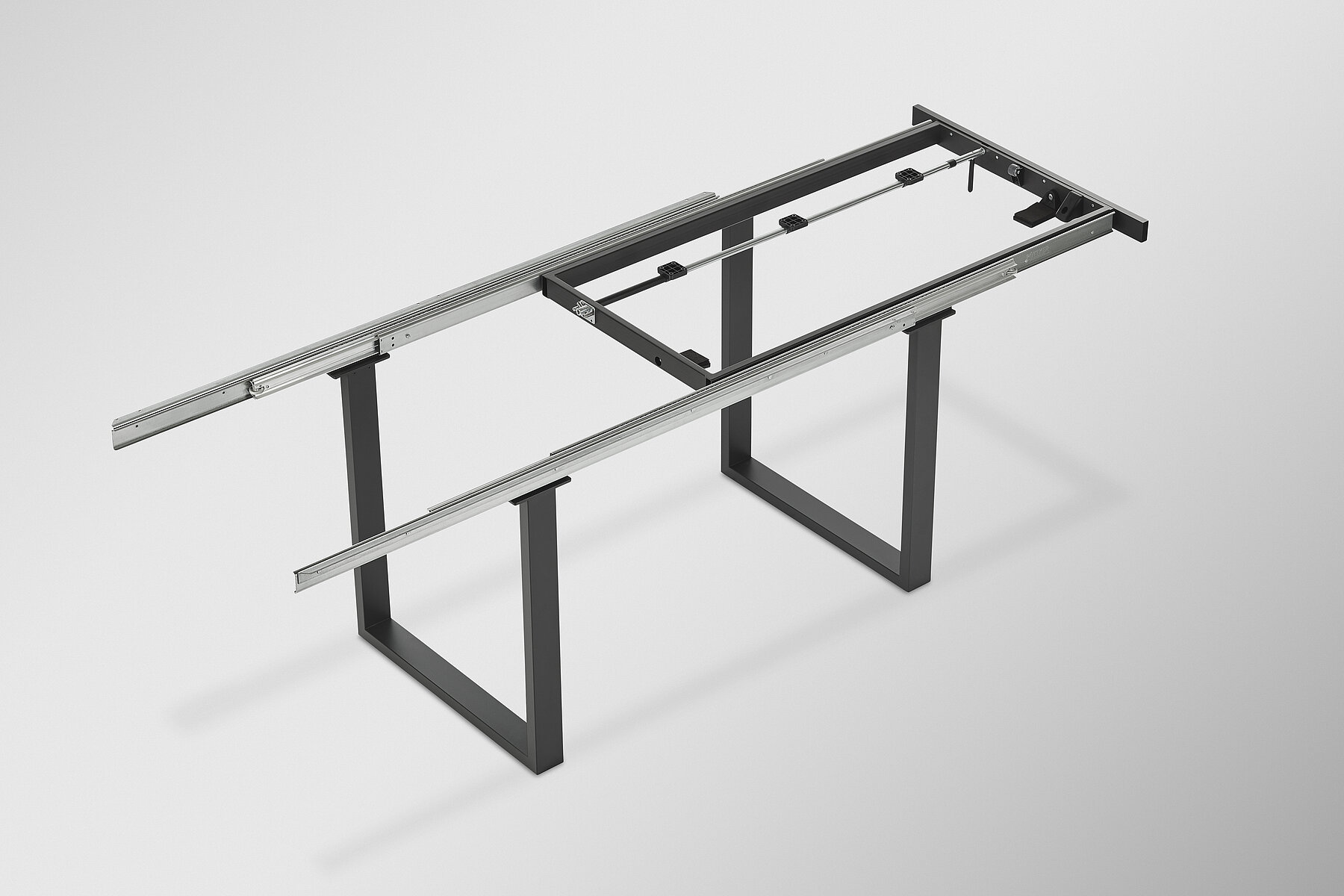

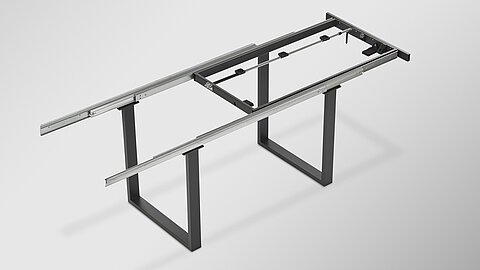

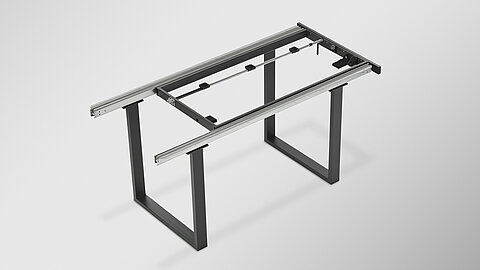

The  SLIDER 47 slide system is suitable for tables with a central base unit and bracket leg. The ALU 55 SLIDER thread positions for the connection to the substructure can be individually selected.

Brake & Accessories

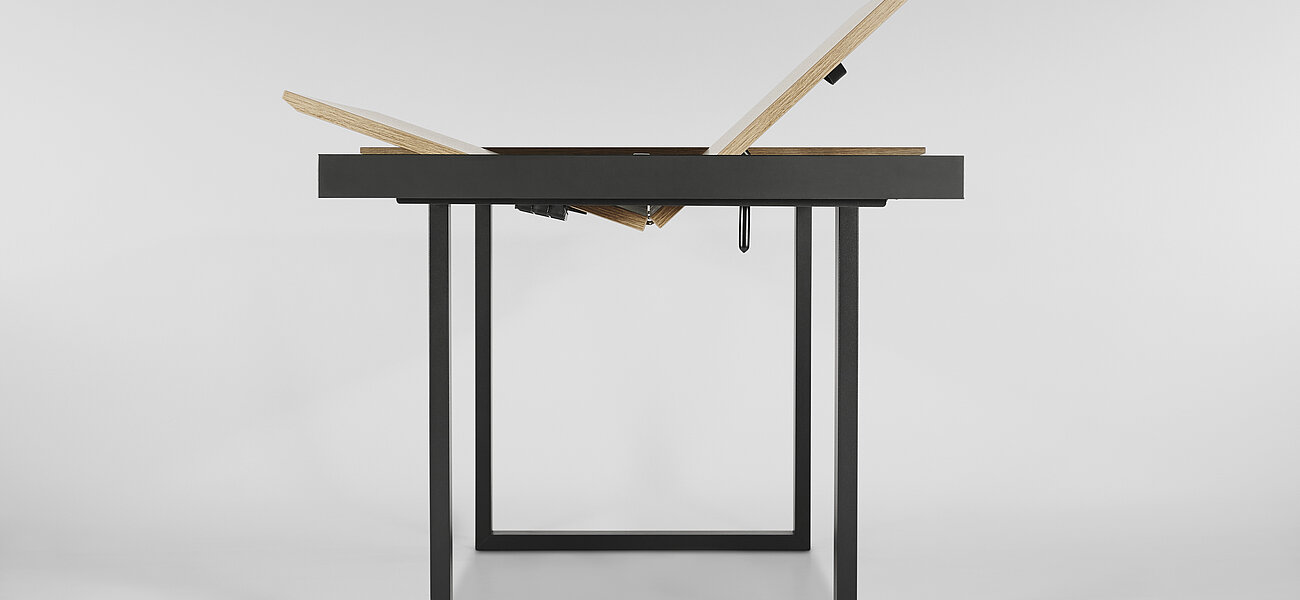

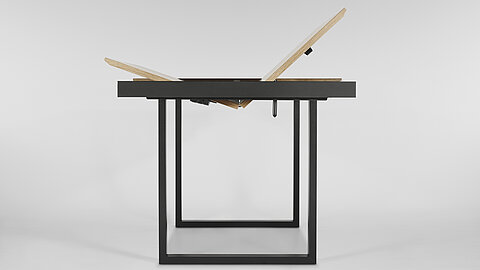

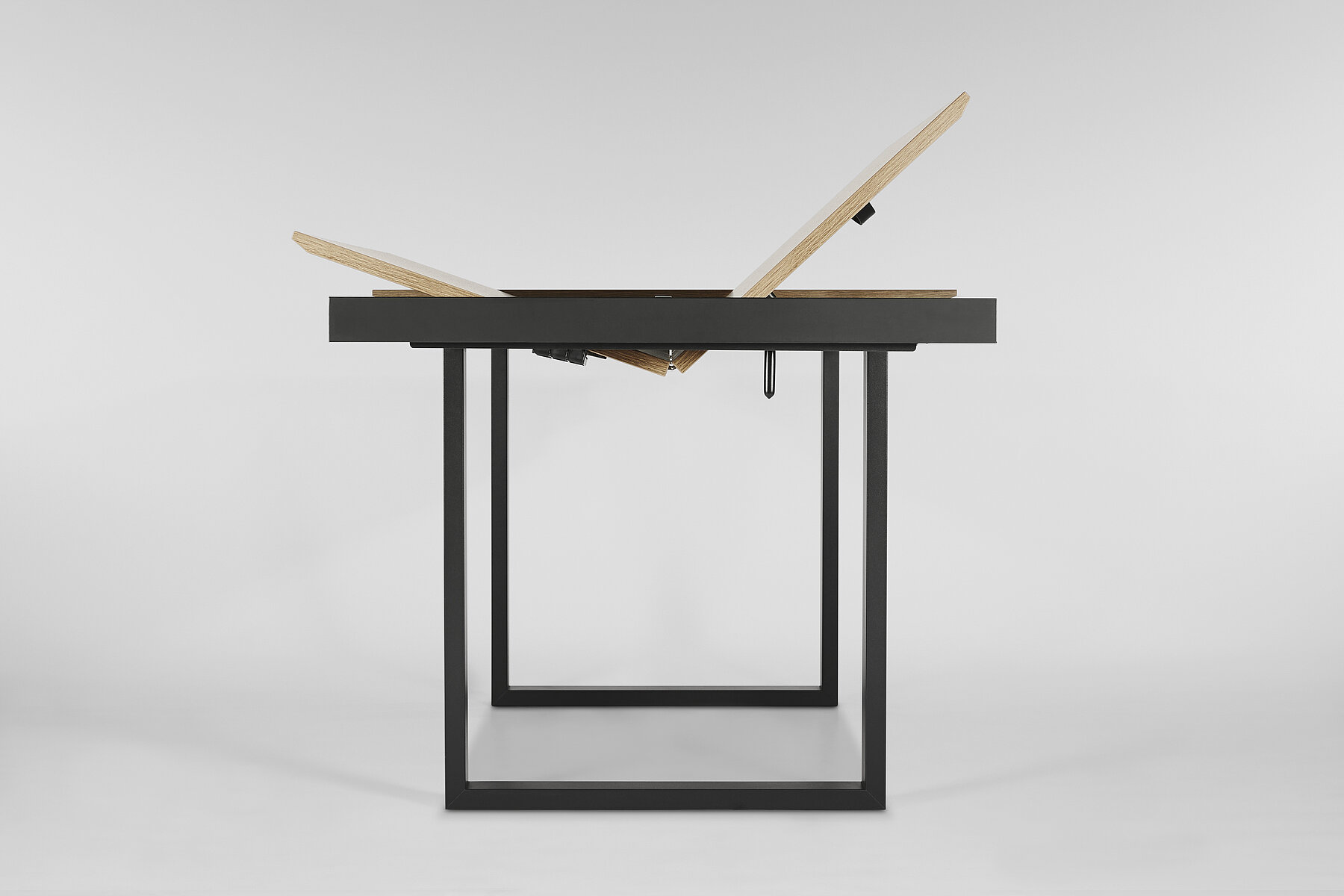

Optimize the SLIDER 47 slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2Way of travelInstallation heightLoad capacity
47 Installation height
 xyz
F-S/1200.41.200 mm1.200 mm54 mm90 kg
F-S/1400.41.400 mm1.300 mm54 mm90 kg
F-S/1600.41.600 mm1.300 mm54 mm90 kg
F-S/1800.41.800 mm1.300 mm54 mm90 kg

1) F-S = Frontslide Synchronous | F-SB = Frontslide Synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

Installation height 47

Extension lengths
