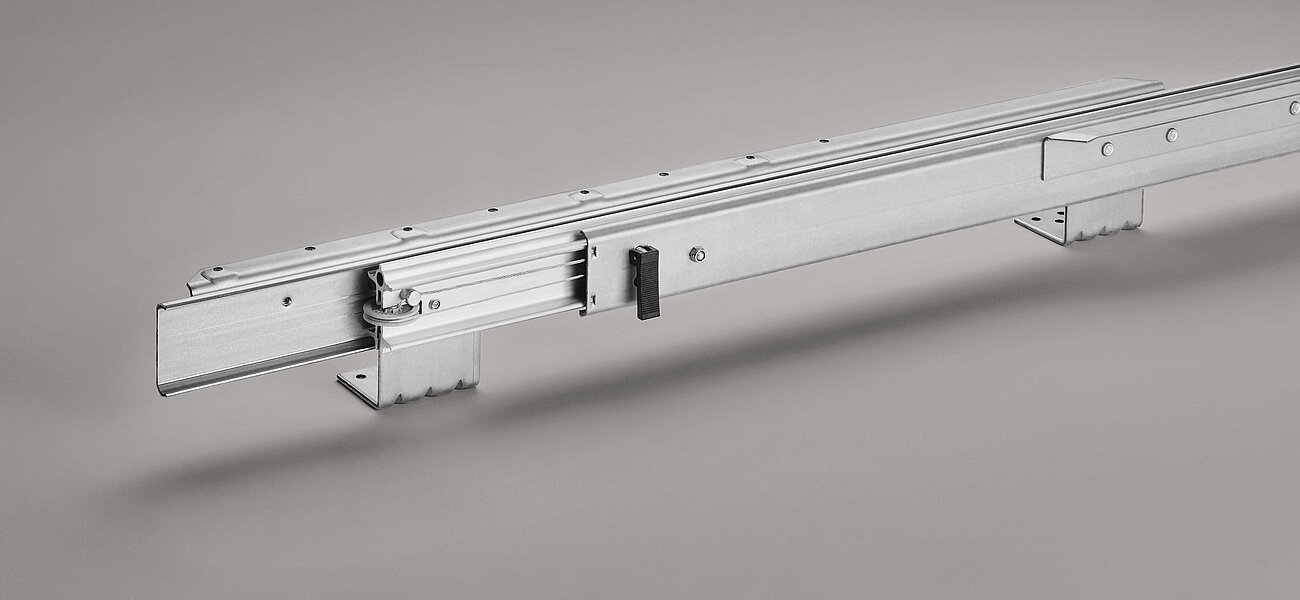

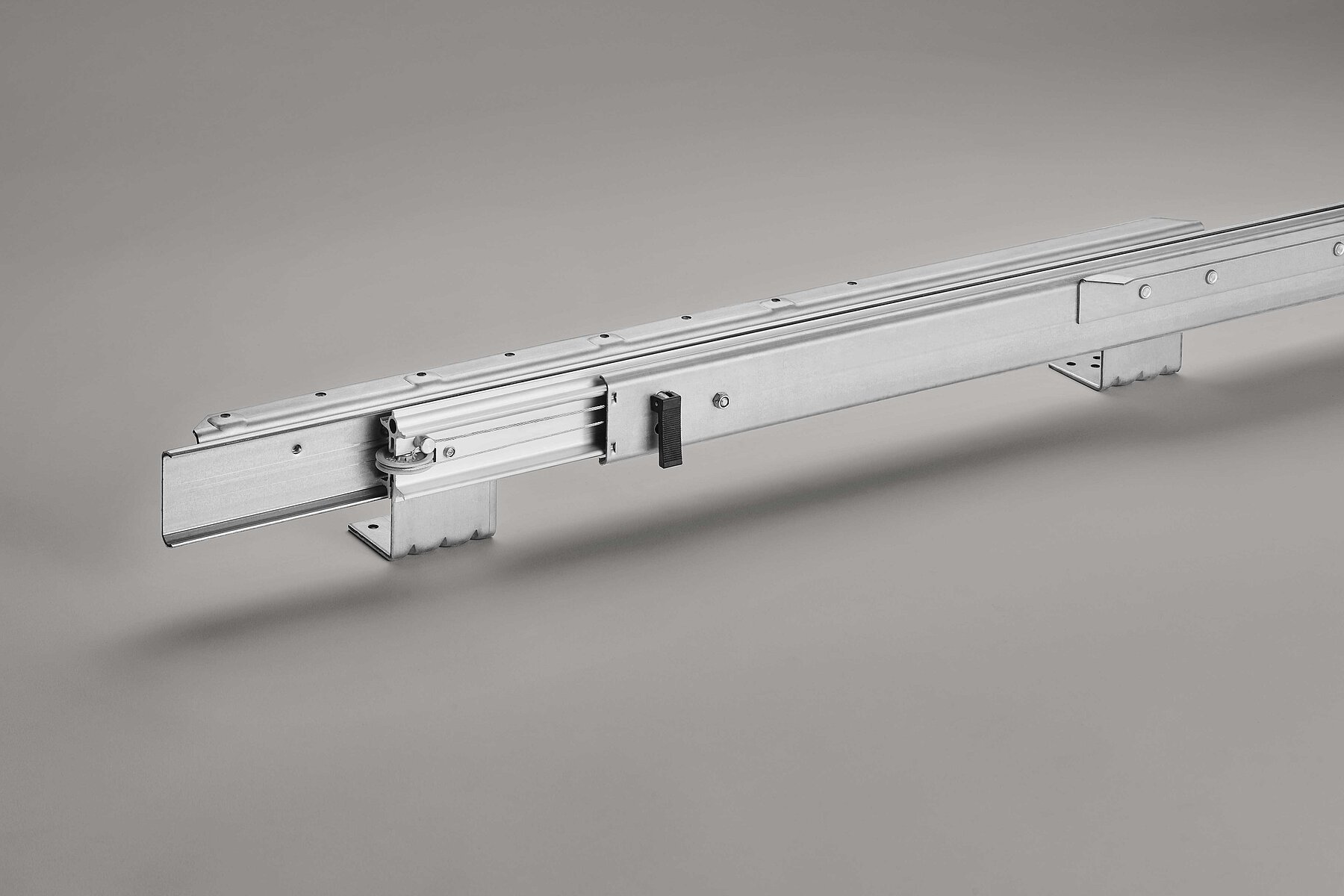

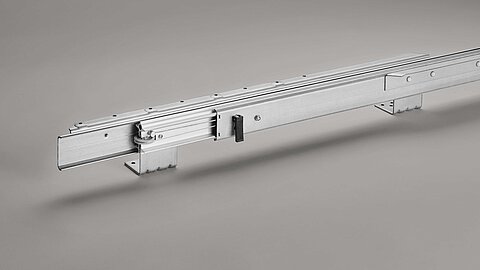

ALU/STEEL KOMBI 47

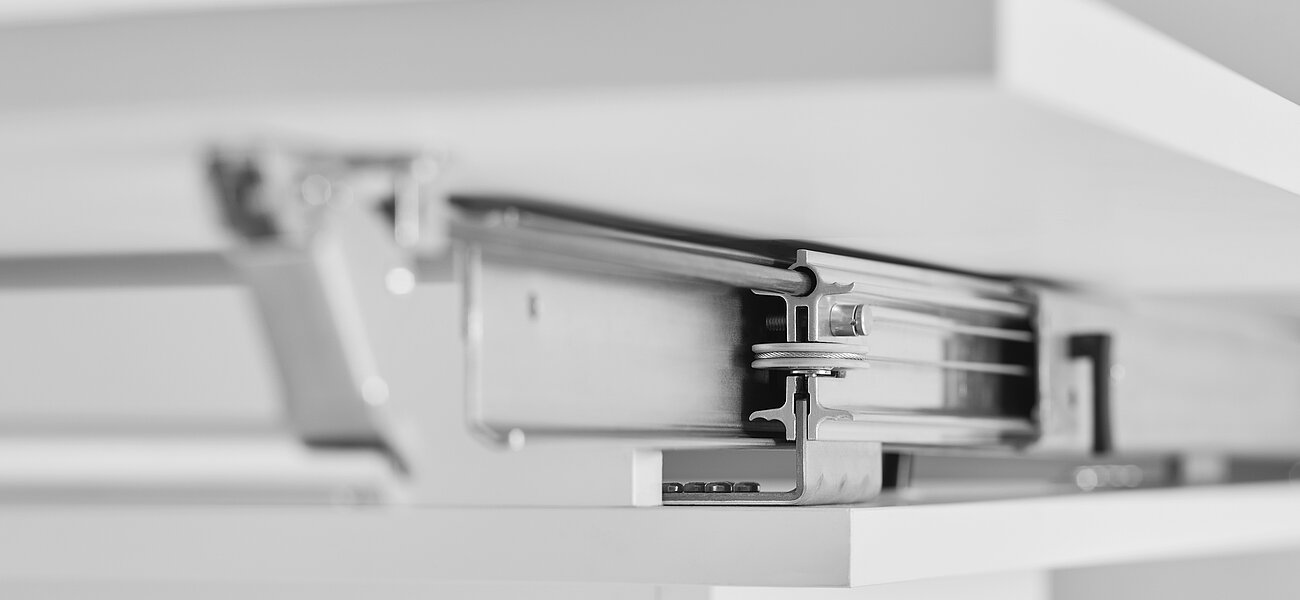

For tables with underframe or for substructure of split frame tables

Benefits

Material

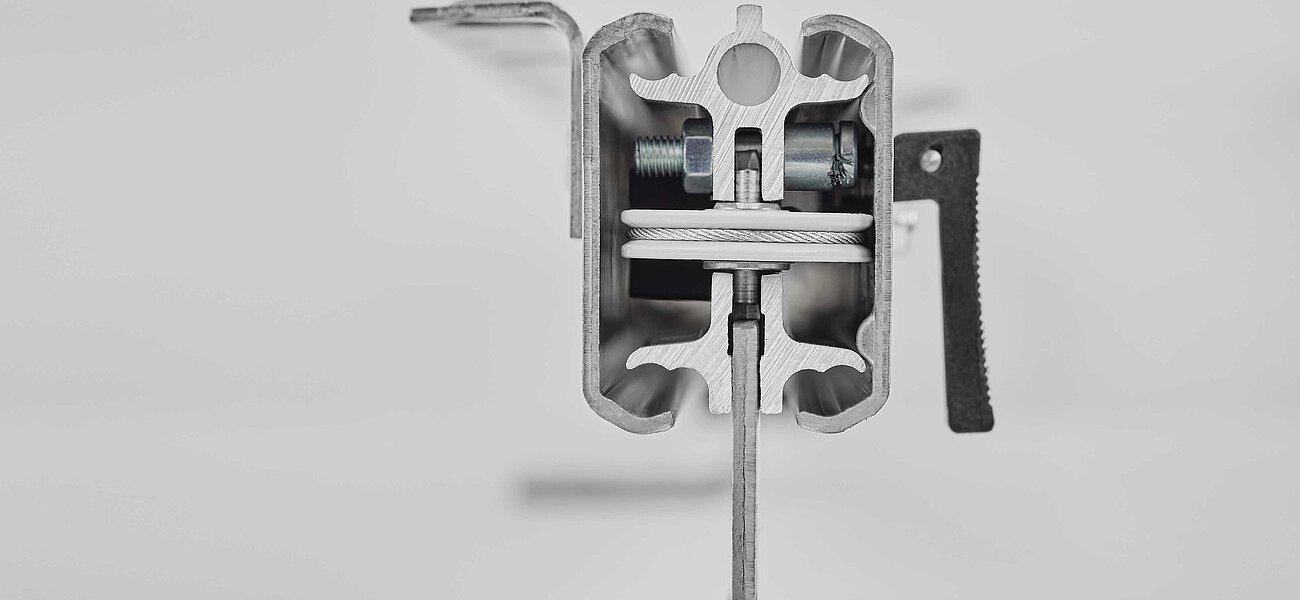

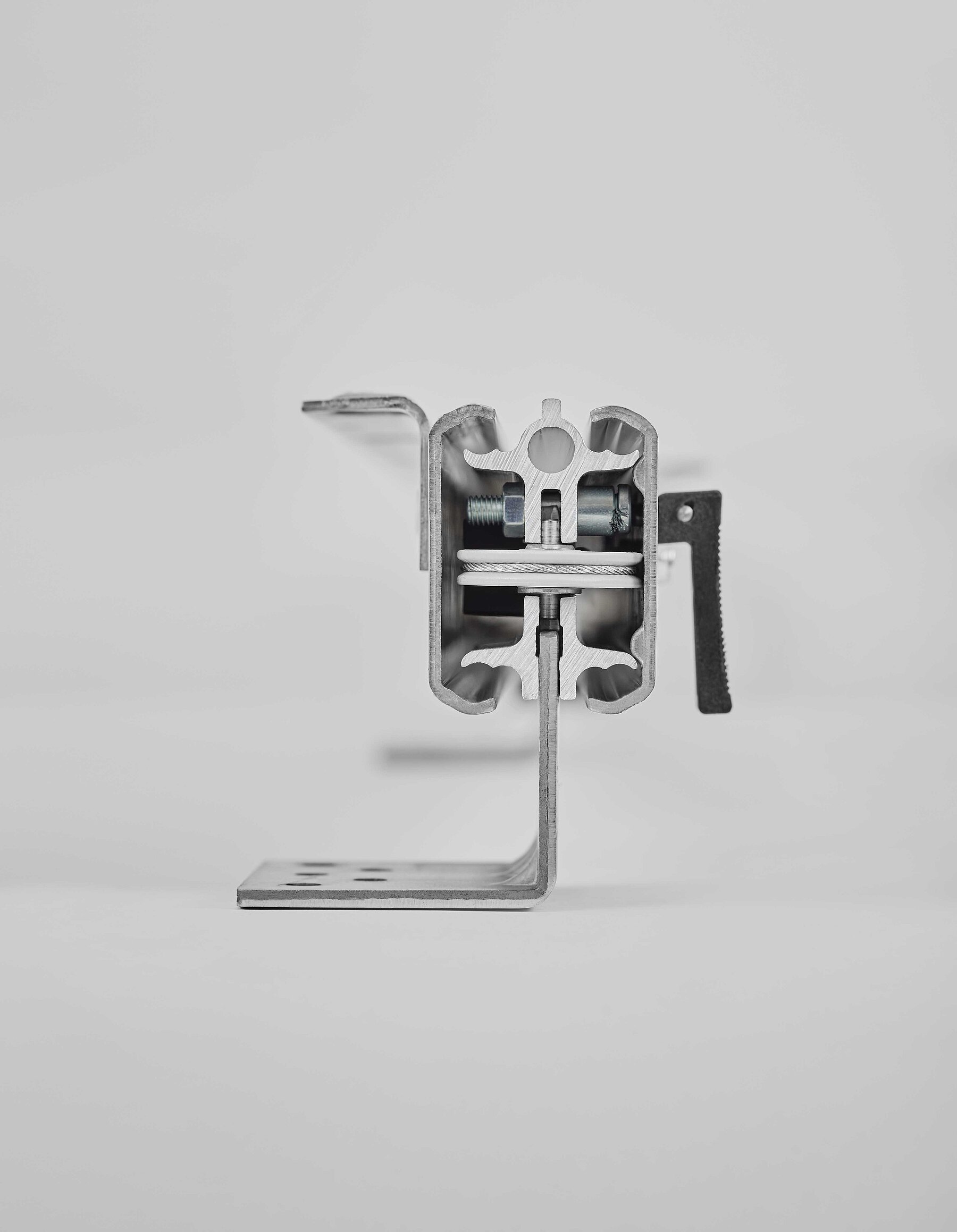

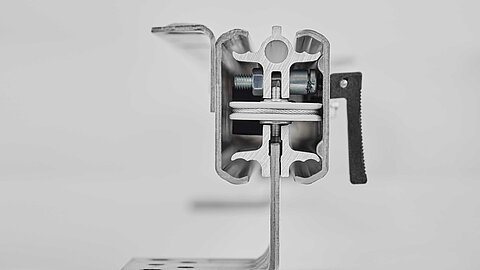

Steel and aluminum – the one-piece middle profile is made of aluminum, the outer profiles are made of high-quality steel. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load capacities

The ALU/STEEL KOMBI 47 standard slides are dimensioned for 90 kg under a uniformly applied load. For further load requirements see Kombi 37, Kombi 77 or Alu 77 All specifications are always dependent on the material thickness and the tensile and flexural strength.

Slide

Thanks to its innovative angular design, the height of the KOMBI slide system can be planned with centimeter precision.

Synchronous design

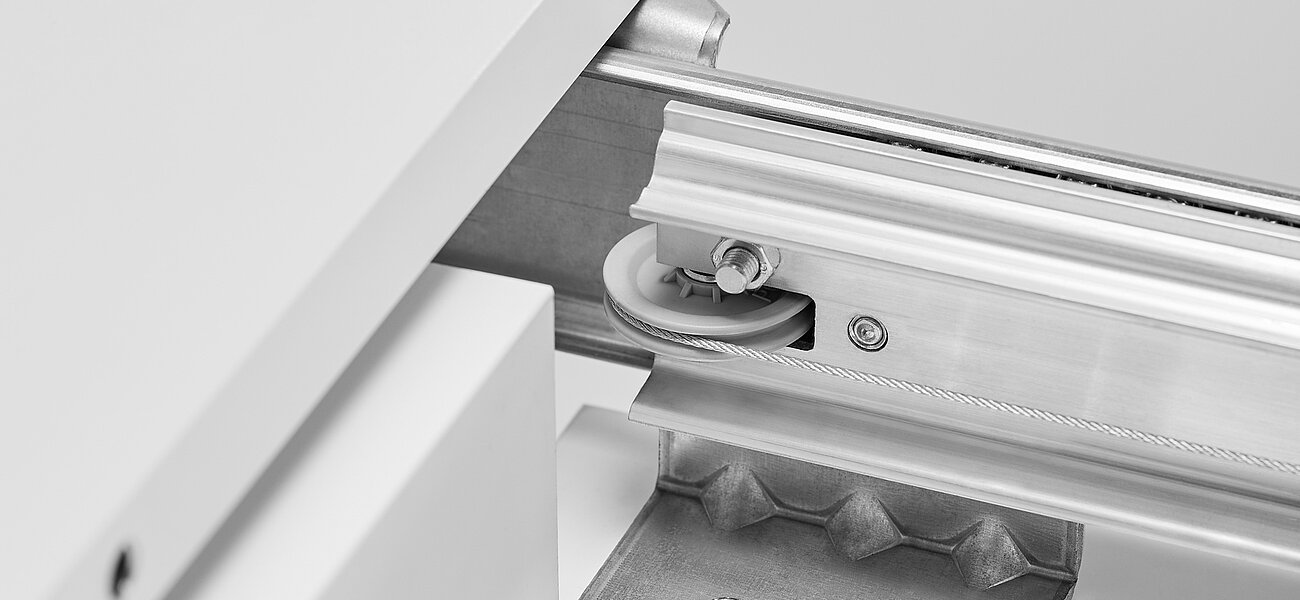

The KOMBI 47 slide system is available in a synchronous design, a synchronous design with rope brake, synchronous design with comfort brake , or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: Our KOMBI slide system can be combined with matching accessories, such as the FM Folding mechanism or for wooden frames, the FFM flat folding mechanism. Please contact us.

Technical details

Type¹	Length²	table inserts	Installation height	Load capacity
47 Installation height \| Material 2 mm
	x	y	z
K/460.4	460 mm	1 x 500 mm	58 – 102 mm	90 kg
K/720.4	720 mm	2 x 500 mm	58 – 102 mm	90 kg
K/980.4	980 mm	3 x 500 mm	58 – 102 mm	90 kg
K/1200.4	1.200 mm	4 x 500 mm	58 – 102 mm	90 kg

1) K = Kombi | K-S = synchronous | K-SB = synchronous with brake | K-SCB = synchronous with comfort brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.
