ALU/STEEL KOMBI 37

For tables with underframe or for substructure of split frame tables

Benefits

Material

Steel and aluminum – the one-piece middle profile is made of aluminum; the outer profiles are made of high-quality steel. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load capacities

The ALU/STEEL KOMBI 37 standard slides are dimensioned for 70 kg under a uniformly applied load. For further load requirements see Kombi 47, Kombi 77 or Alu 77 . All specifications are always dependent on the material thickness and the tensile and flexural strength.

Slide

Thanks to its innovative angular design, the height of the KOMBI slide system can be planned with centimeter precision.

Synchronous design

The KOMBI 37 slide system is available in a synchronous design, a synchronous design with rope brake, or without any additions.

Accessories

Round off your product with matching movement and convenience accessories. Our KOMBI slide system can be combined with matching accessories, such as the FM Folding mechanism or, for wooden frames, the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2table insertsInstallation heightLoad capacity
37 Installation height | Material 1,75 mm
 xyz
K/460.3460 mm1 x 500 mm52 – 96 mm70 kg
K/720.3720 mm2 x 500 mm52 – 96 mm70 kg
K/980.3980 mm3 x 500 mm52 – 96 mm70 kg
K/1200.31.200 mm4 x 500 mm52 – 96 mm70 kg

1) K = Kombi | K-S = synchronous | K-SB = Synchron mit Bremse
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

37 | Standard heights

52 mm58 mm64 mm69 mm75 mm77 mm86 mm96 mm

Technical drawings

Different installation heights possible

Extension lengths

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

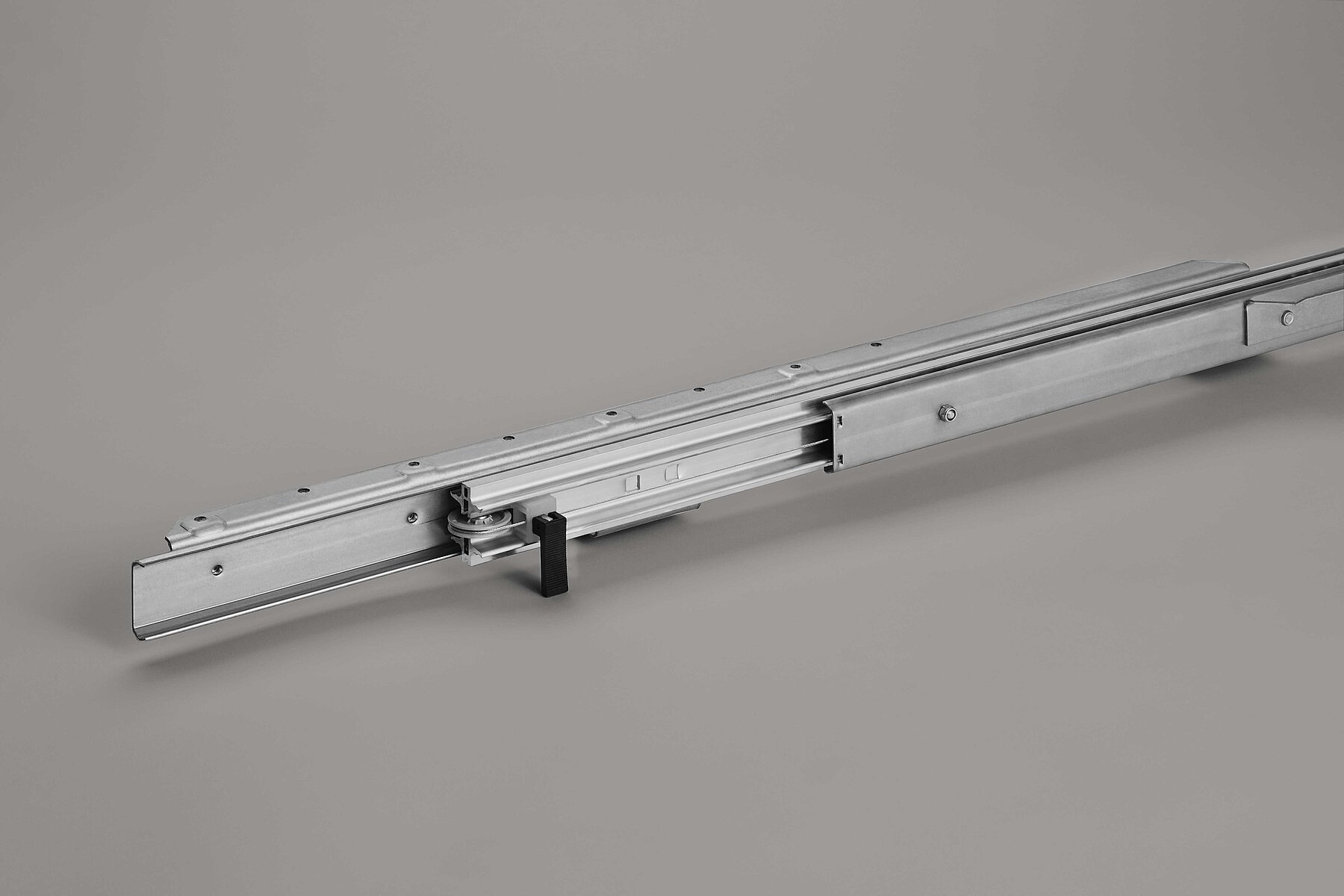

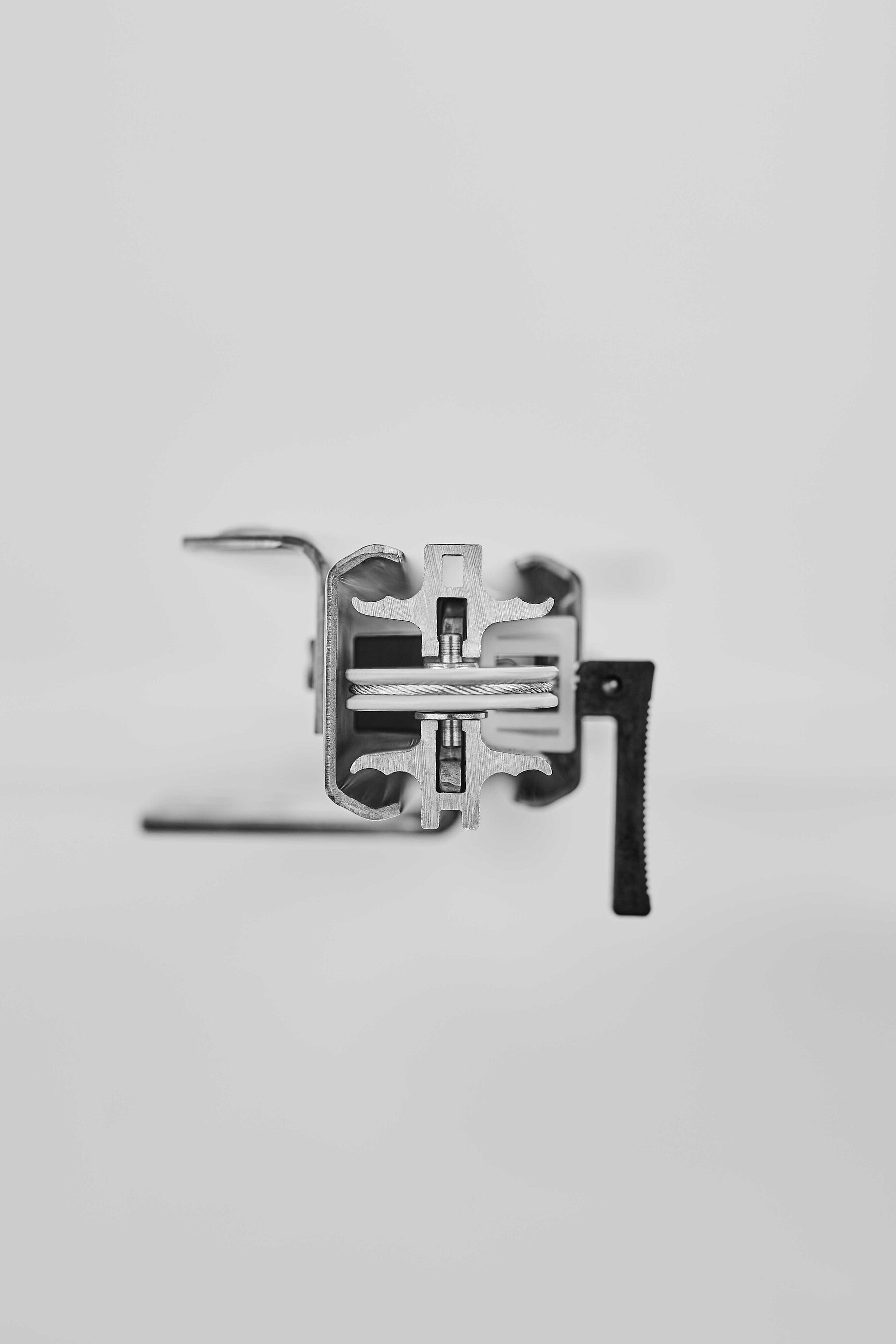

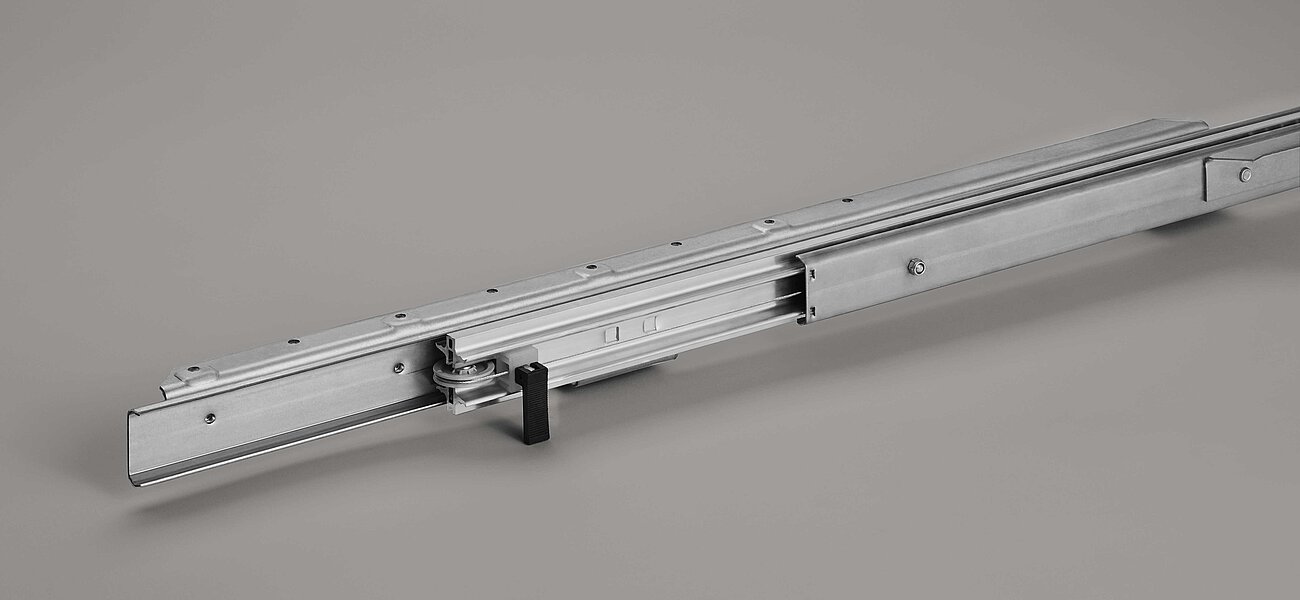

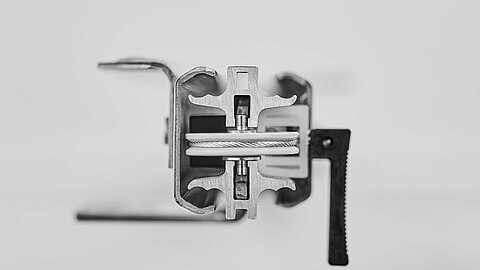

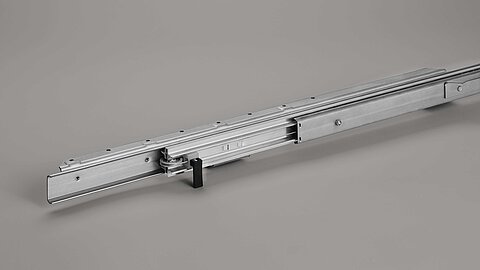

Product images
