ALU/STEEL FRONTSLIDE LATERAL 47 | 55

The all-rounder

Benefits

Material

Steel outer profile and aluminum inner profile or pure aluminum profile - various anodized surfaces with a high-quality aluminum design. The combination of a high-quality outer steel profile and an inner aluminum profile ensures a high load capacity and a particularly silent operation. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load capacities

The FRONTSLIDE BASIC standard slides are dimensioned for 90 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Telescopic

The FRONTSLIDE BASIC slide system can be telescoped multiple times, if requested.

Accessories

The slide system FRONTSLIDE BASIC is available in a synchronous design, or a synchronous design with rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with FFM flat folding mechanism. Upon request this system is also available in a purely aluminum design, also with soft closing. Please contact us.

Technical details

Type1Length2Way of travelInstallation heightLoad capacity
Steel outer profile and aluminum inner profile
47 Installation height | Material 2 mm
47er FB-Txyz
FB-T/610.4610 mmca. 730 mm49 mm90 kg
FB-T/710.4710 mmca. 860 mm49 mm90 kg
Aluminum system
55 Installation height
 xyz
A5FB/830.A5830 mm650 mm55 mm90 kg
A5FB/930.A5930 mm750 mm55 mm90 kg

1) FB = Frontslide Basic | FB-T = Telescope | FB-SB = Synchronous with brake | A5FB = Alu 55 Frontslide Basic
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

47 steel-aluminium-system

Extension lengths

Alu 55 Frontslide Basic

Extension lengths

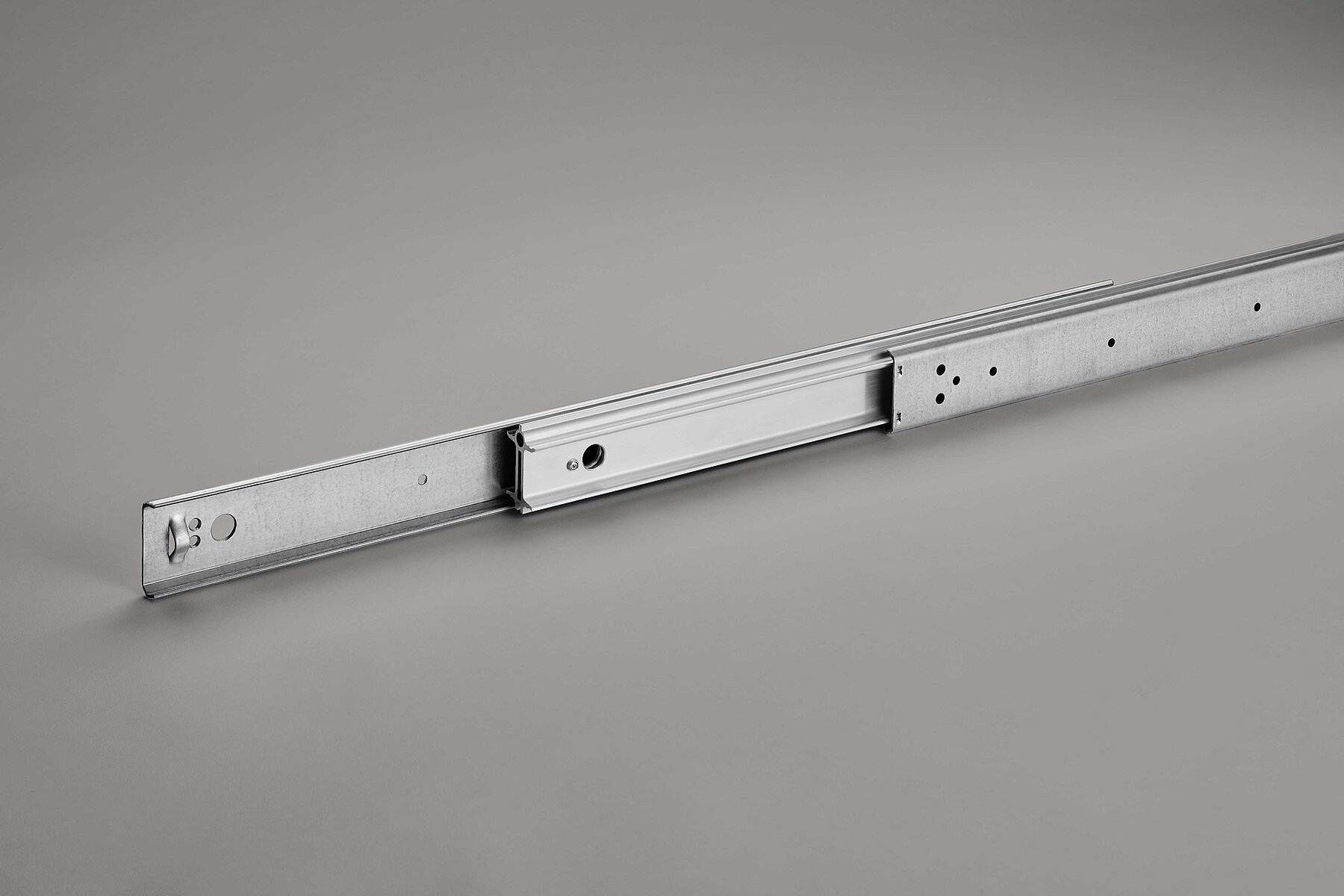

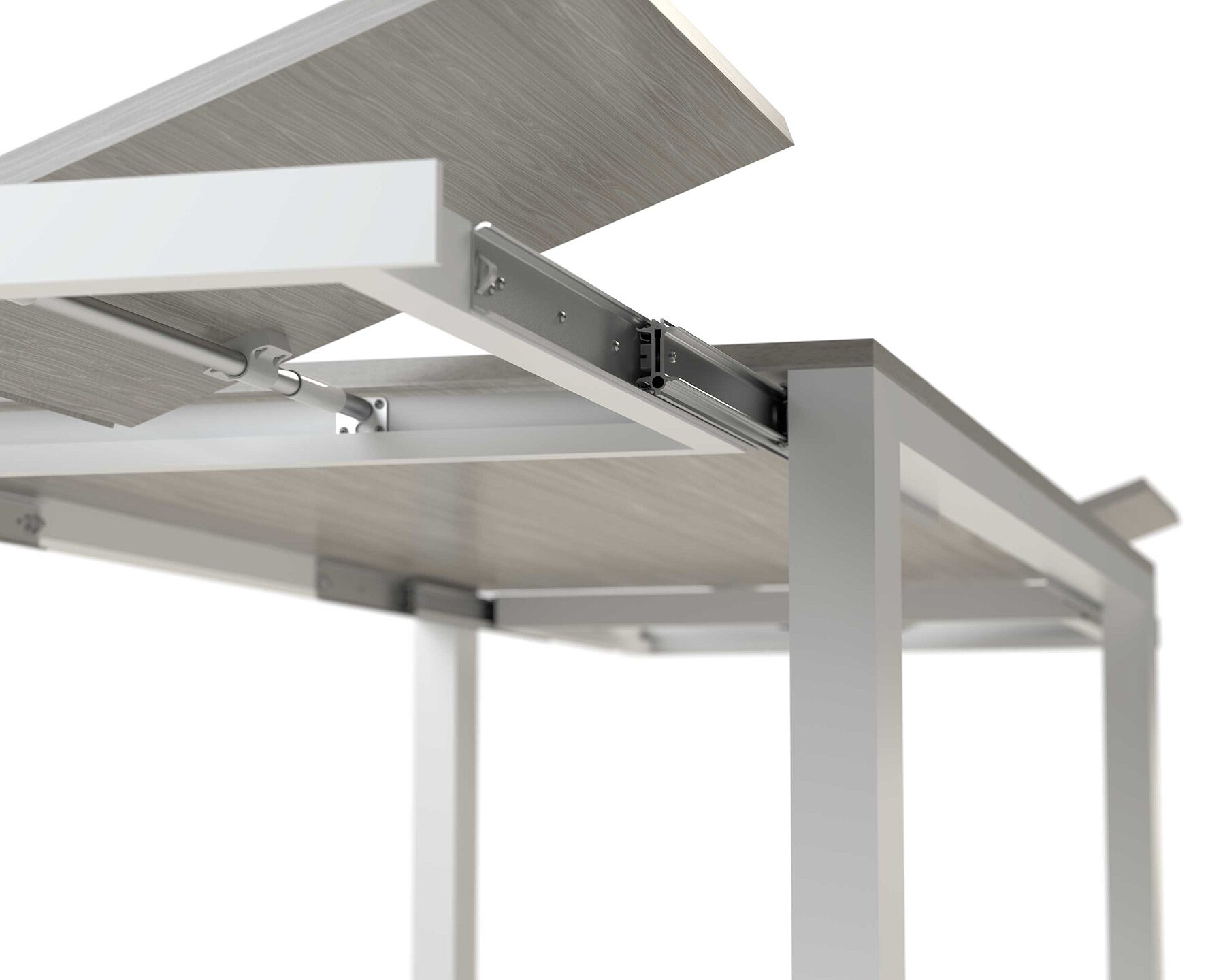

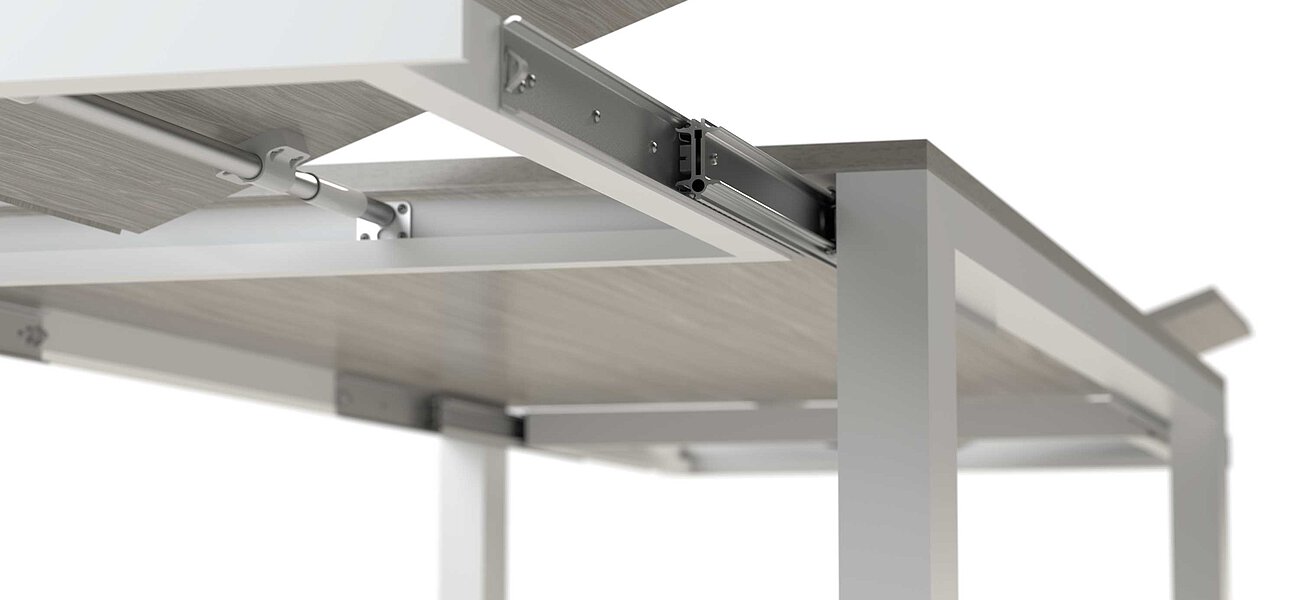

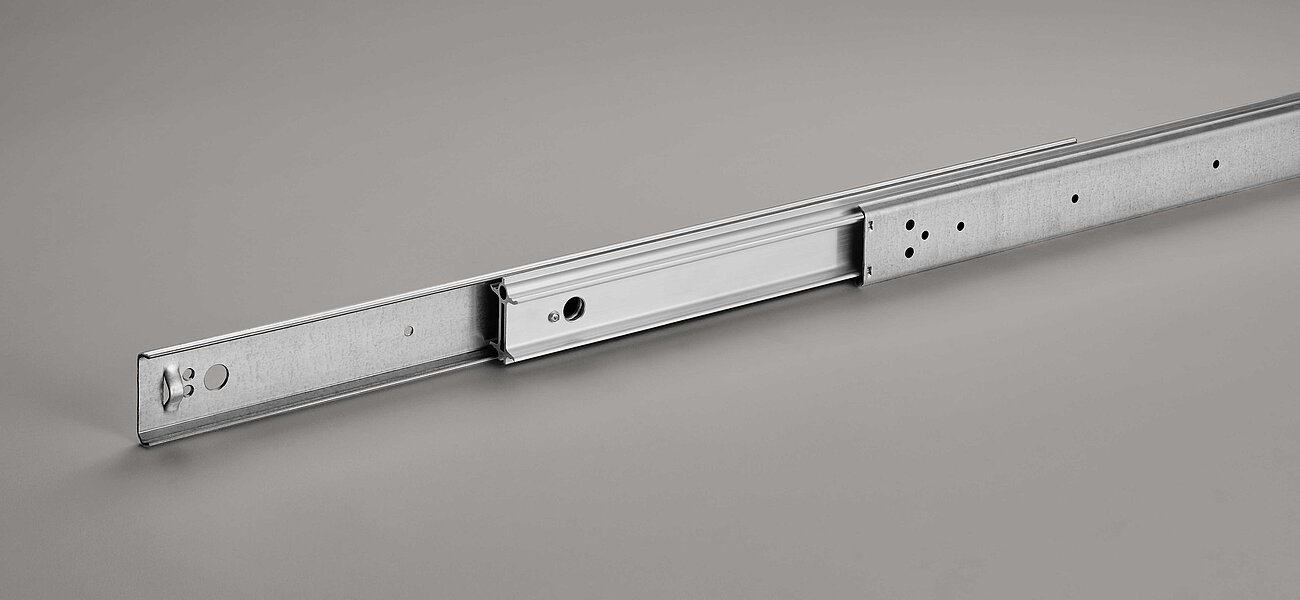

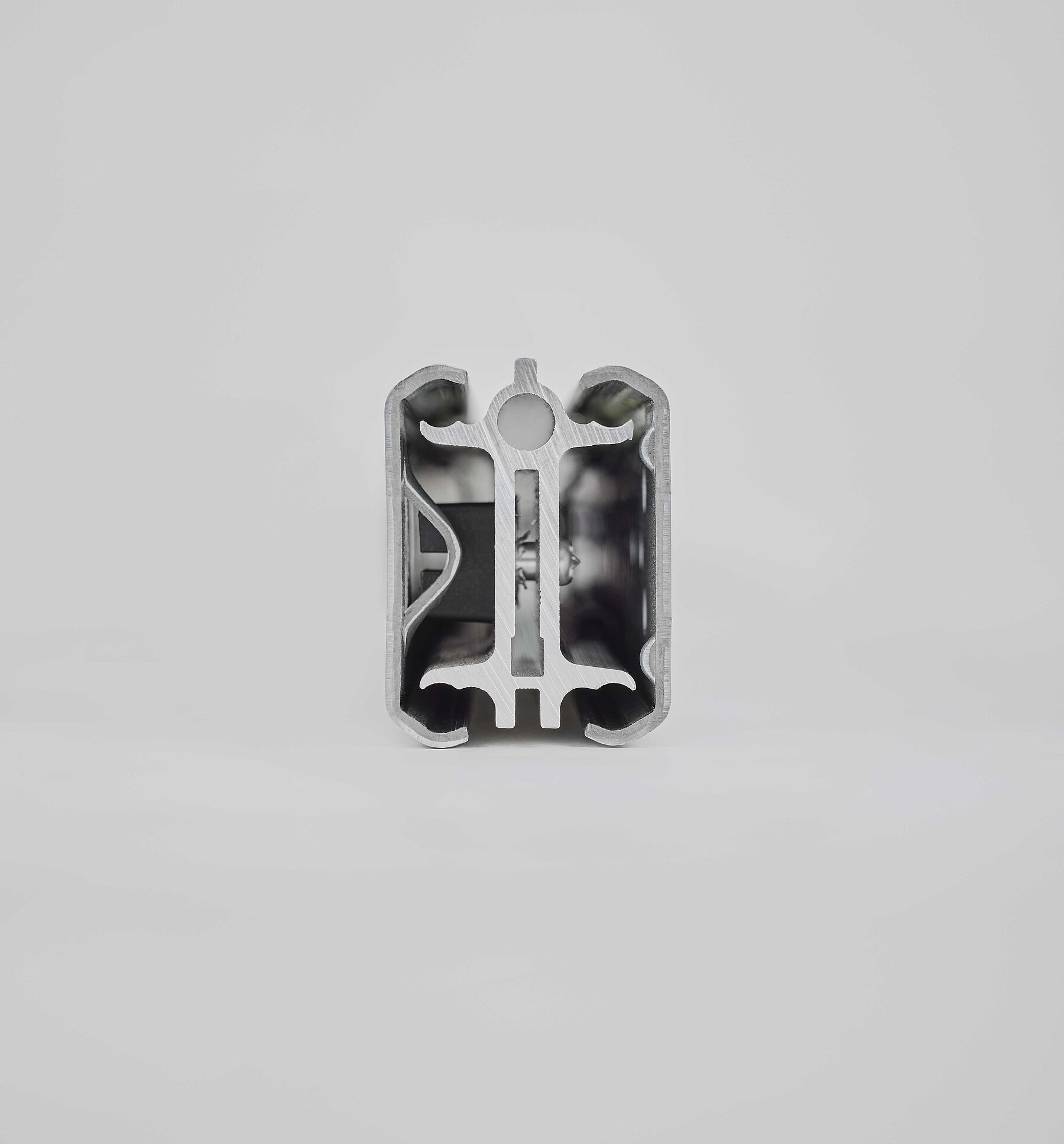

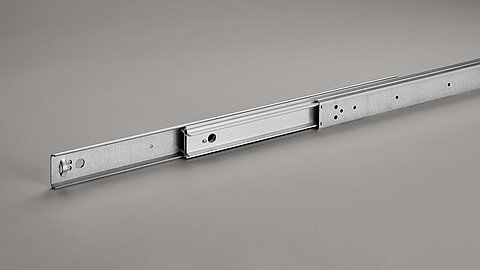

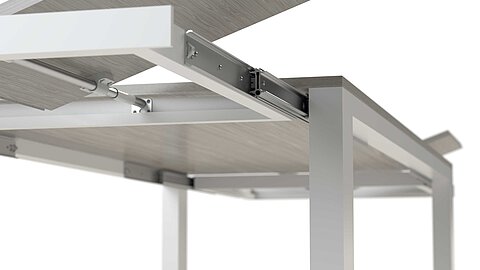

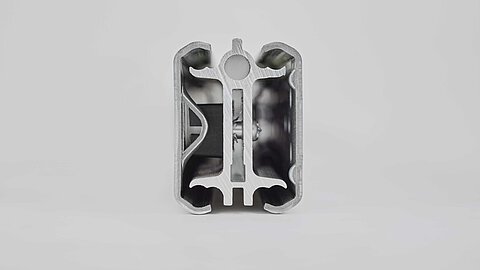

Product images
