ALU/STEEL BASIC ADVANCED 47
For closed frame construction
Benefits
Technical details
| Type1 | Length2 | Table inserts | Installation height | Load capacity |
|---|---|---|---|---|
| 37 Installation height | Material 1,75 mm | ||||
| x | y | z | ||
| BA/600.3 | 600 mm | 1 x 400 mm | 40 mm | 60 kg |
| BA/700.3 | 700 mm | 1 x 500 mm | 40 mm | 60 kg |
| 47 Installation height | Material 2 mm | ||||
|---|---|---|---|---|
| x | y | z | ||
| BA/850.4 | 850 mm | 1 x 500 mm | 50 mm | 90 kg |
| BA/1150.4 | 1.150 mm | 2 x 400 mm | 50 mm | 90 kg |
| BA/1250.4 | 1.250 mm | 2 x 450 mm | 50 mm | 90 kg |
| BA/1350.4 | 1.350 mm | 2 x 500 mm | 50 mm | 90 kg |
1) BA = Basic advanced | BA-S = synchronous | BA-SB = synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.
Technical drawings
Installation height 47
Extension lengths
Videos

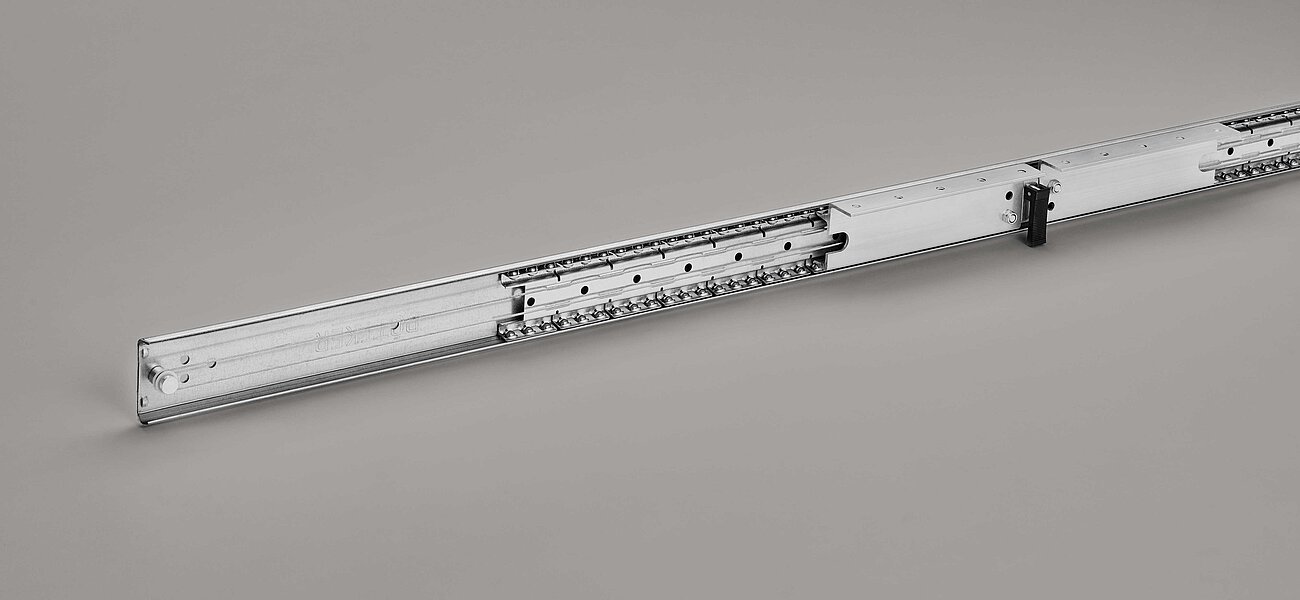

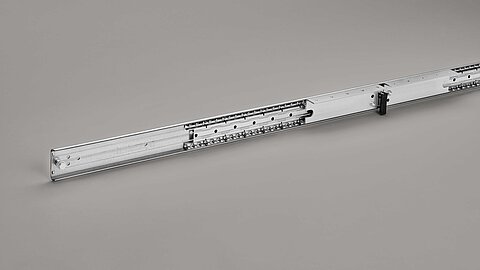

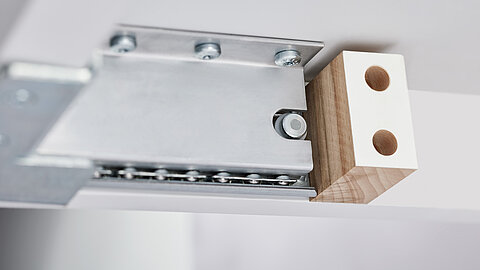

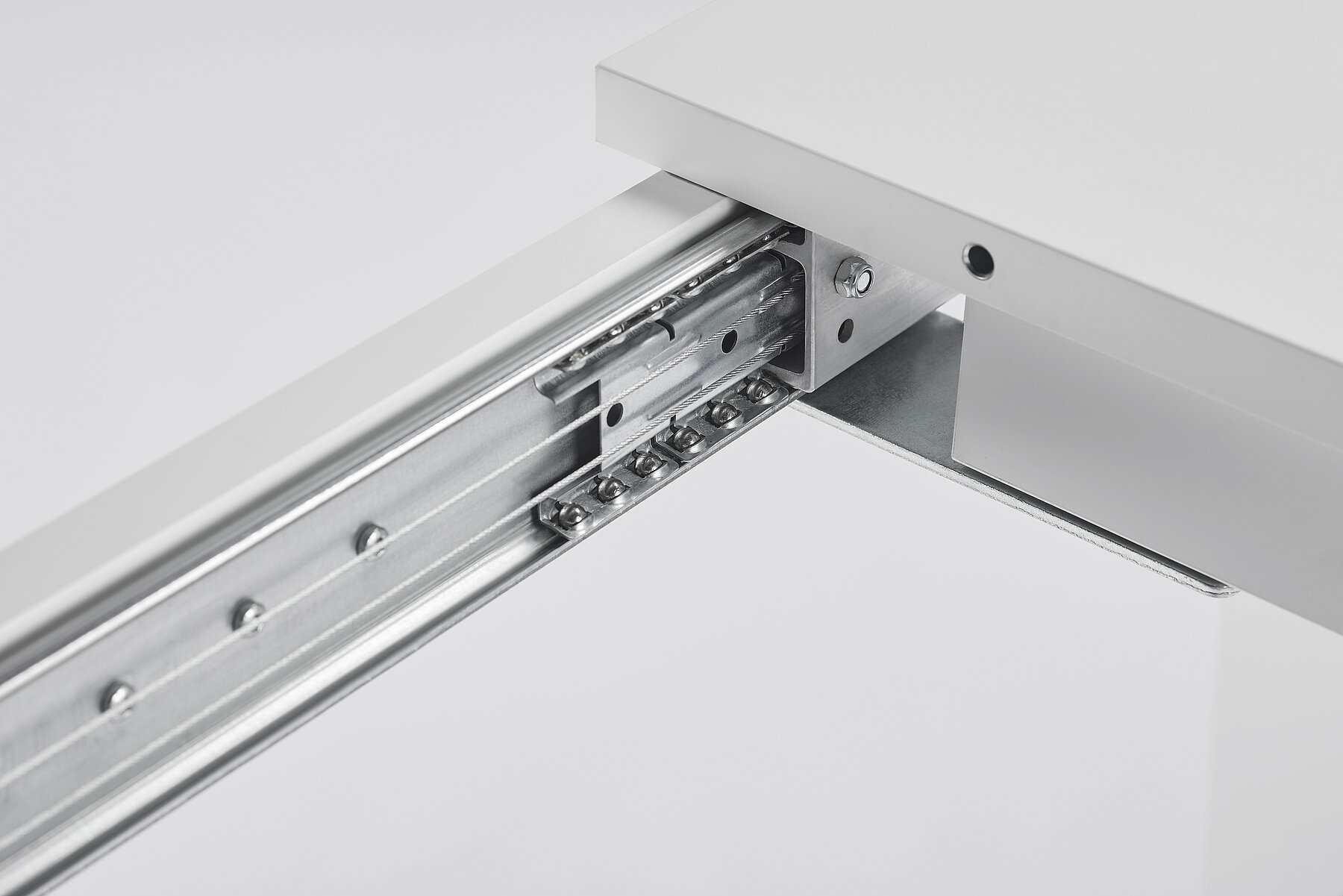

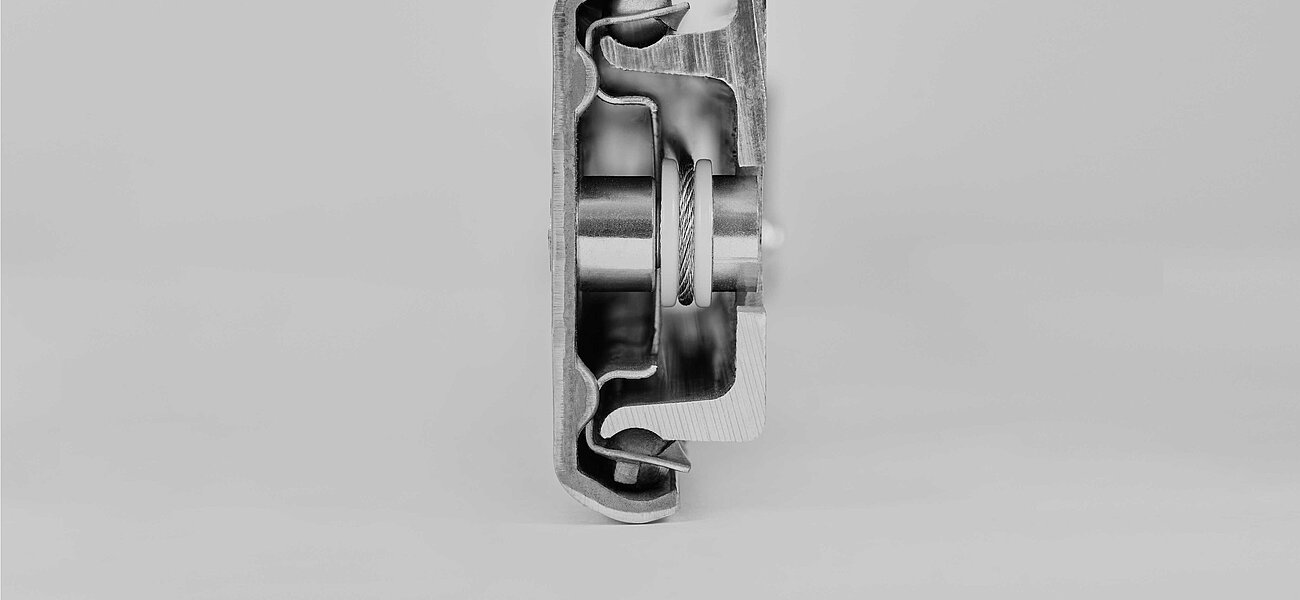

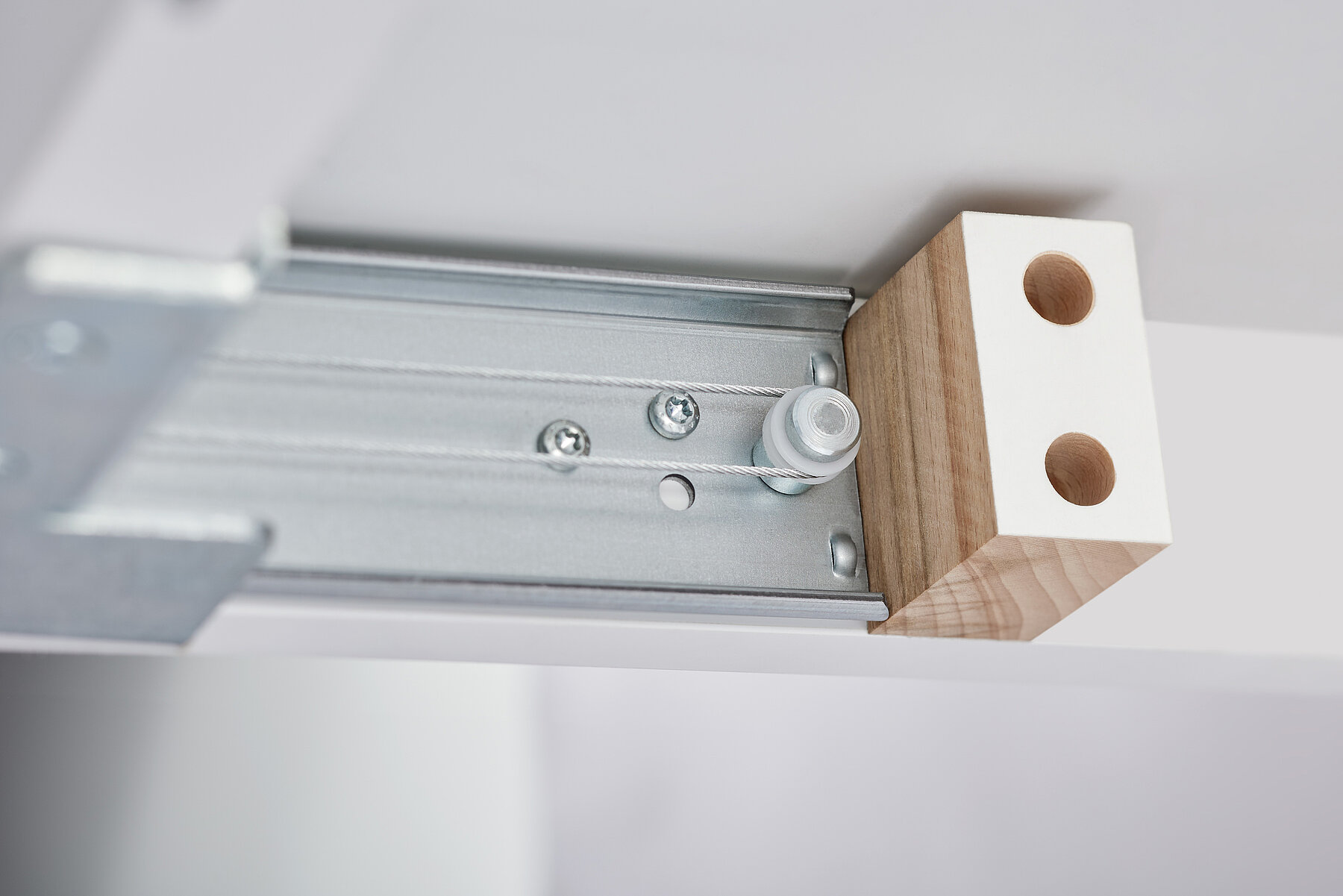

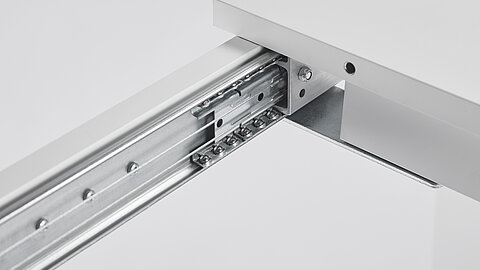

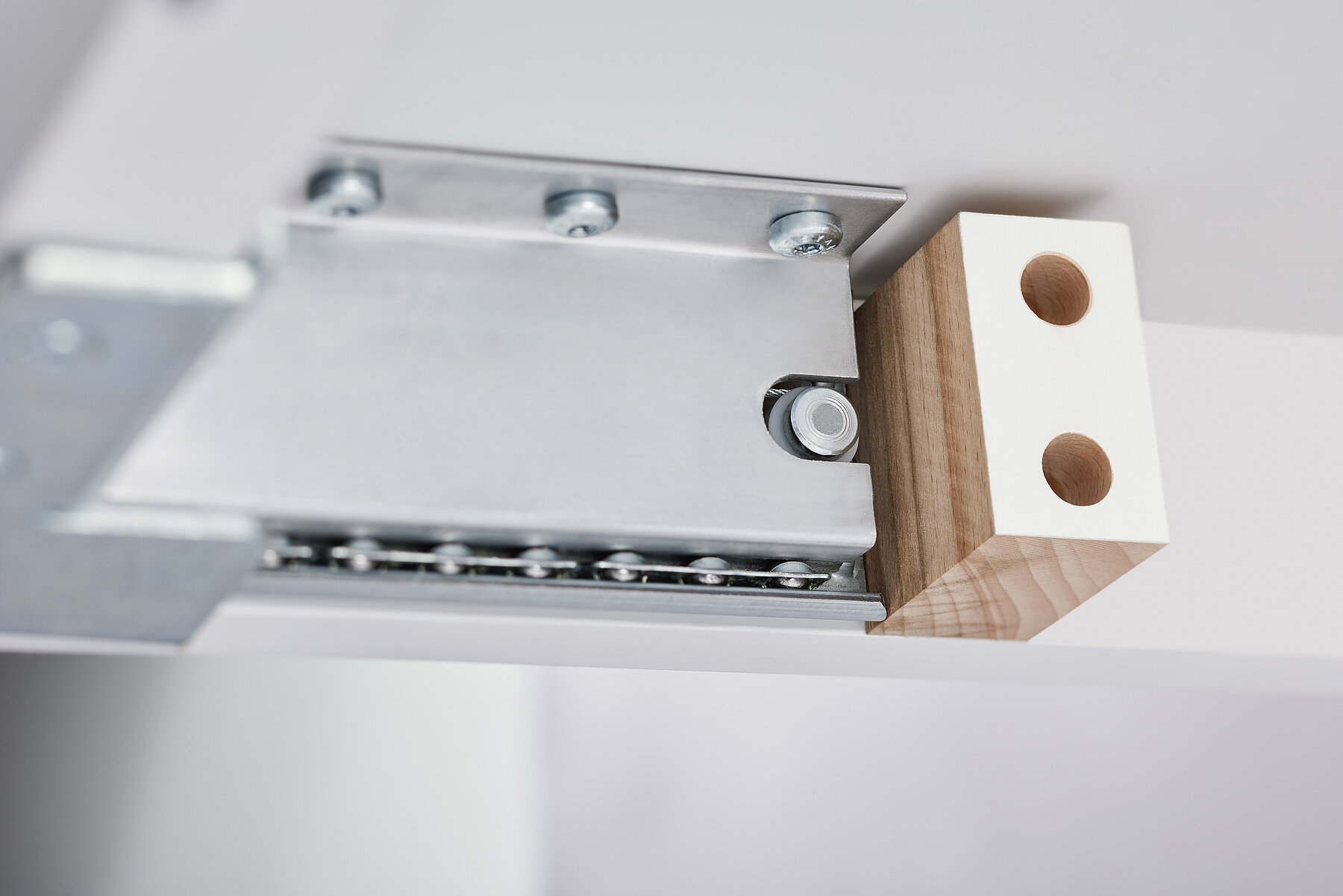

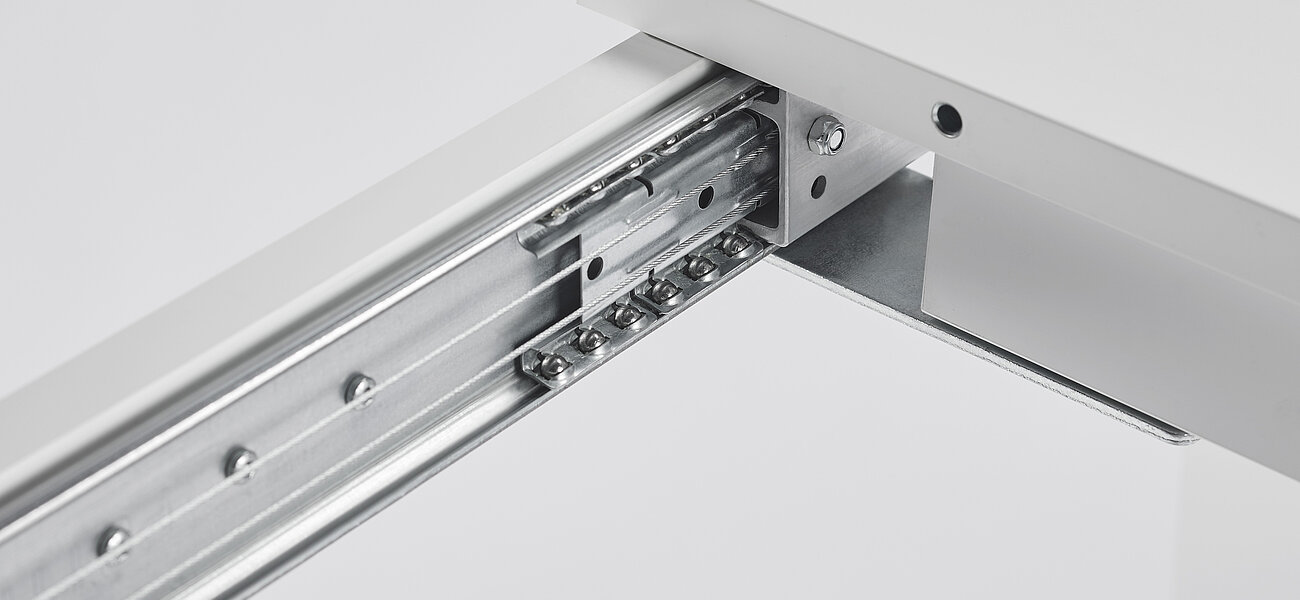

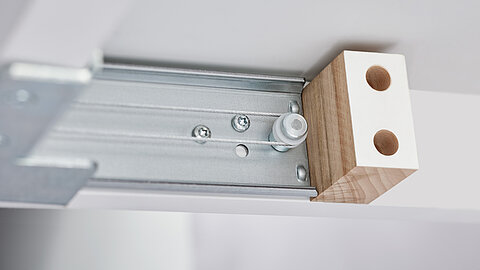

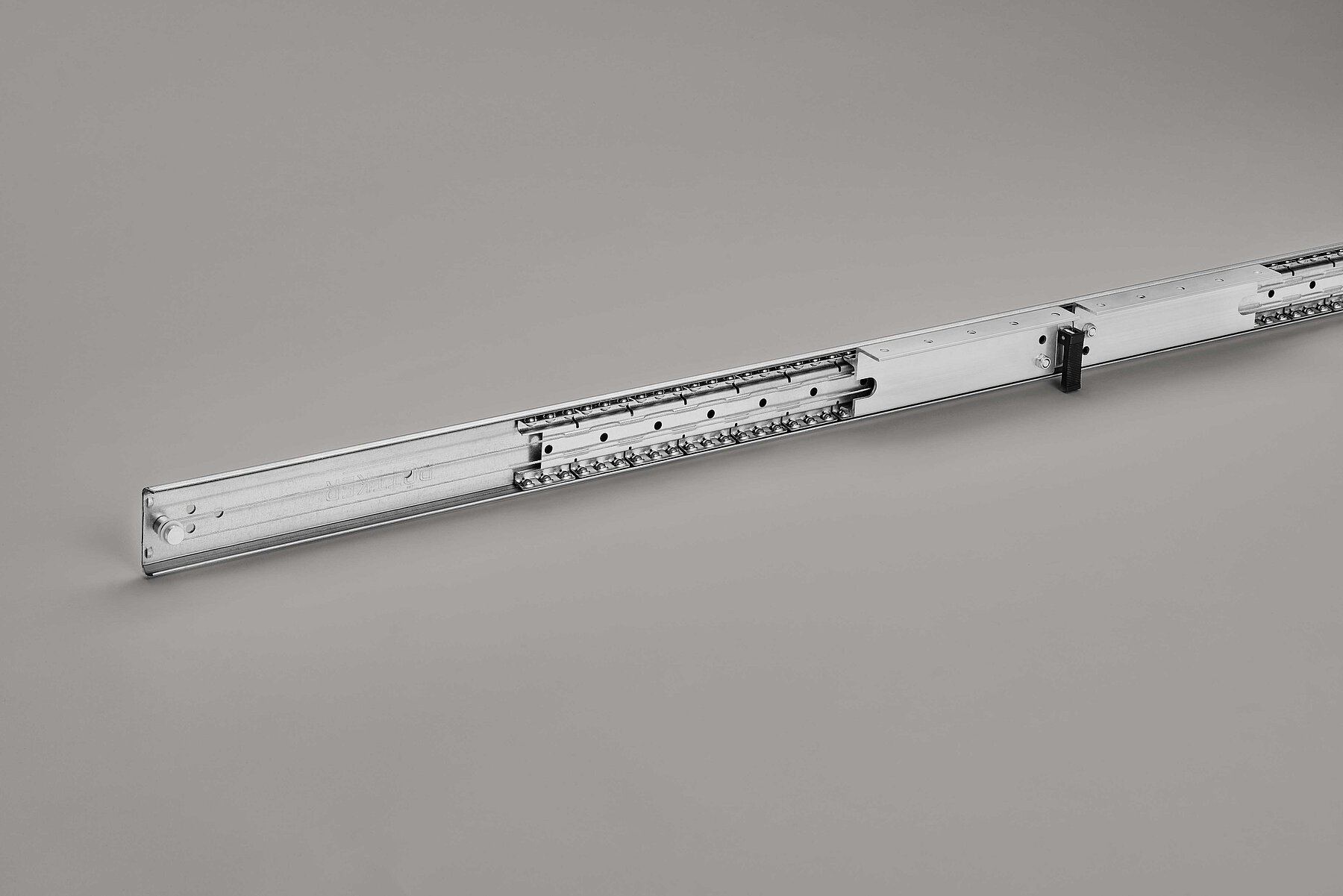

Product images
