STEEL BASIC 37

For open frame construction

Benefits

Material

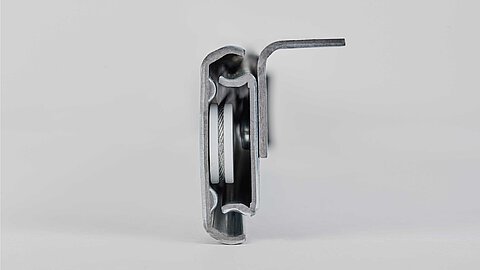

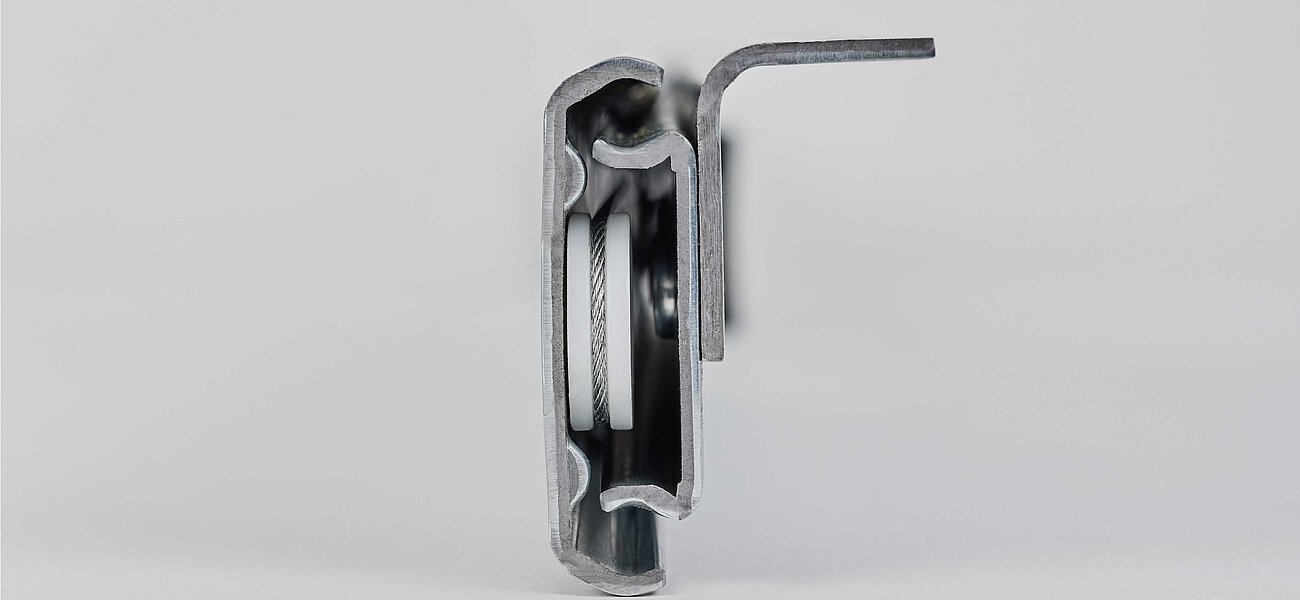

Steel – the rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load Capacities

The BASIC standard slides are dimensioned for 50 kg, 60 kg and 90 kg under uniformly applied loads. Upon request, special slides can be dimensioned for a 115 kg load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Synchronous Design

The slide system BASIC is available in a synchronous design, a synchronous design with rope brake, or without any additions.

Accessories

Round off your product with matching movement and convenience accessories: our slide system BASIC can be combined with the FM Folding mechanism or, for wooden frames, with the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2Table insertsInstallation heightLoad capacity
37 Light Installation height | Material 1,4 mm
 xyz
B/500.34500 mm1 x 320 mm40 mm50 kg
B/580.34580 mm1 x 400 mm40 mm50 kg
37 Installation height | Material 1,75 mm
 xyz
B/580.3580 mm1 x 400 mm40 mm60 kg
B/680.3680 mm1 x 500 mm40 mm60 kg
B/780.3780 mm1 x 600 mm40 mm60 kg
B/1050.31.050 mm2 x 400 mm40 mm60 kg

1) B= Basic | B-S = Synchronous | B-SB = Synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

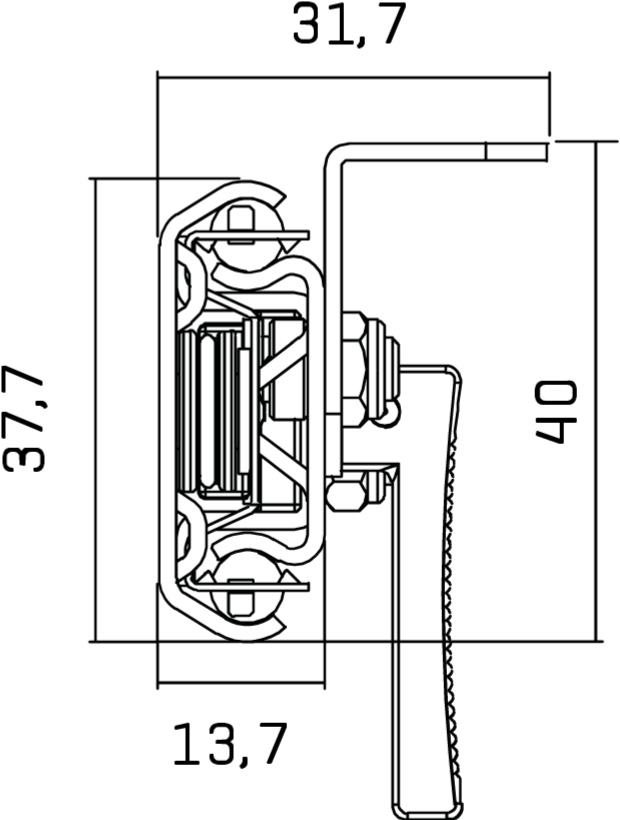

Technical drawings

Installation height 37 light

Installation height 37

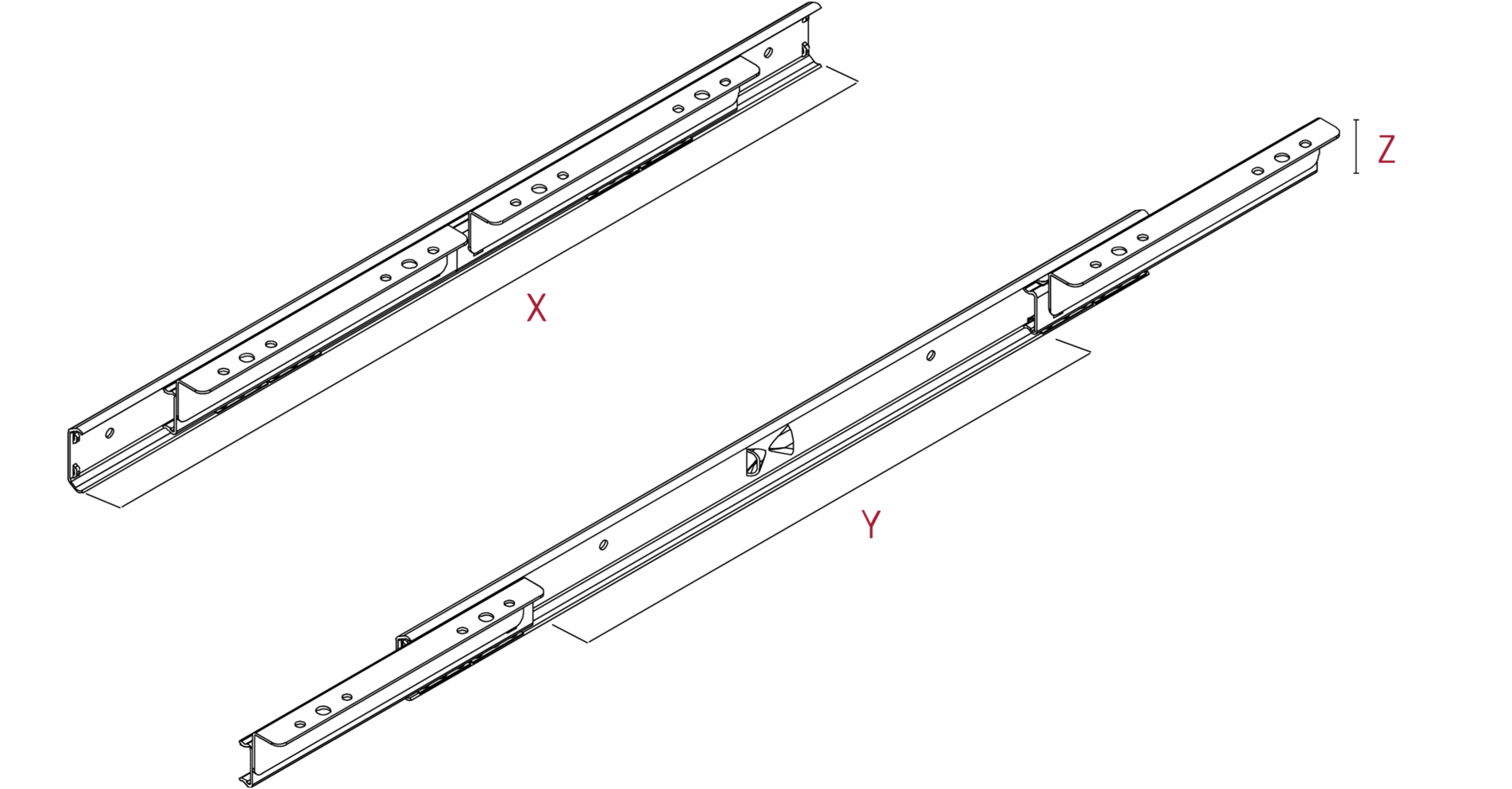

Extension lengths

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

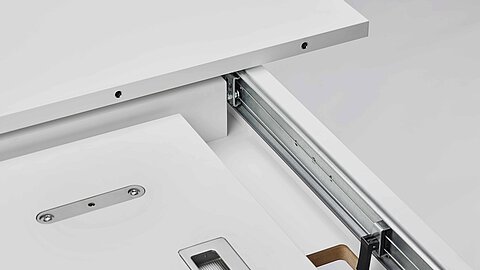

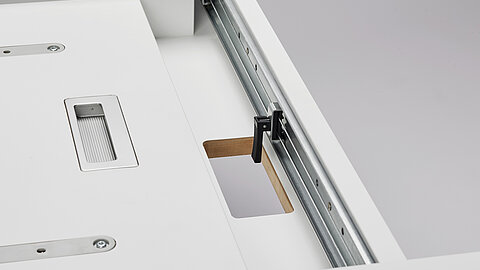

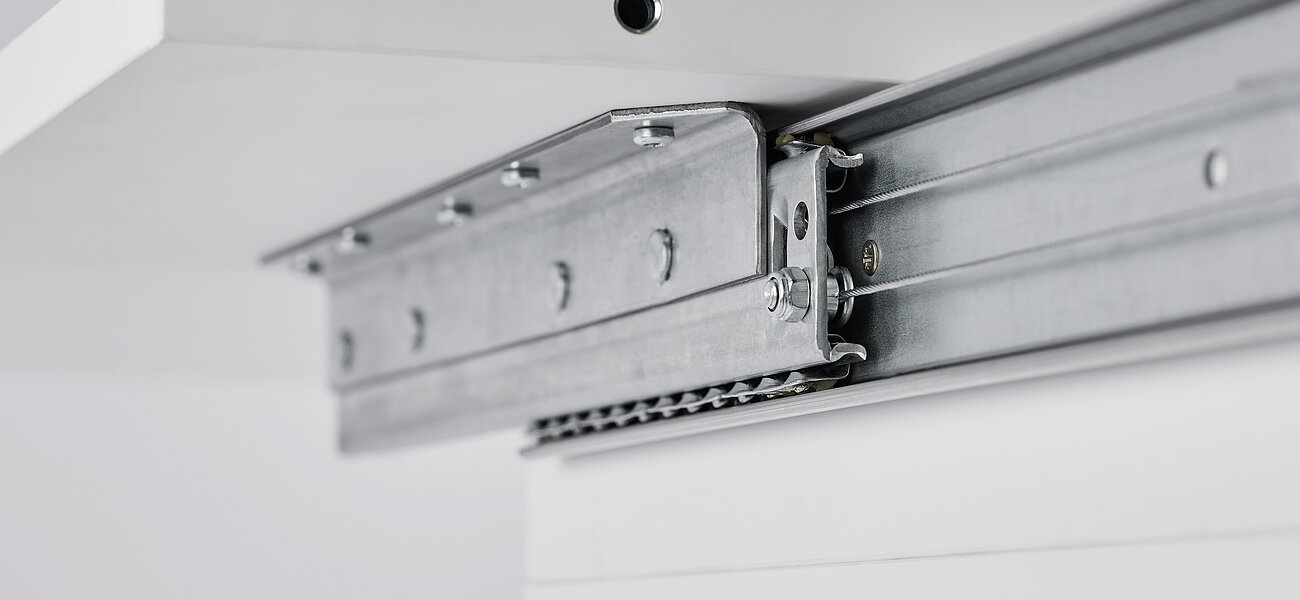

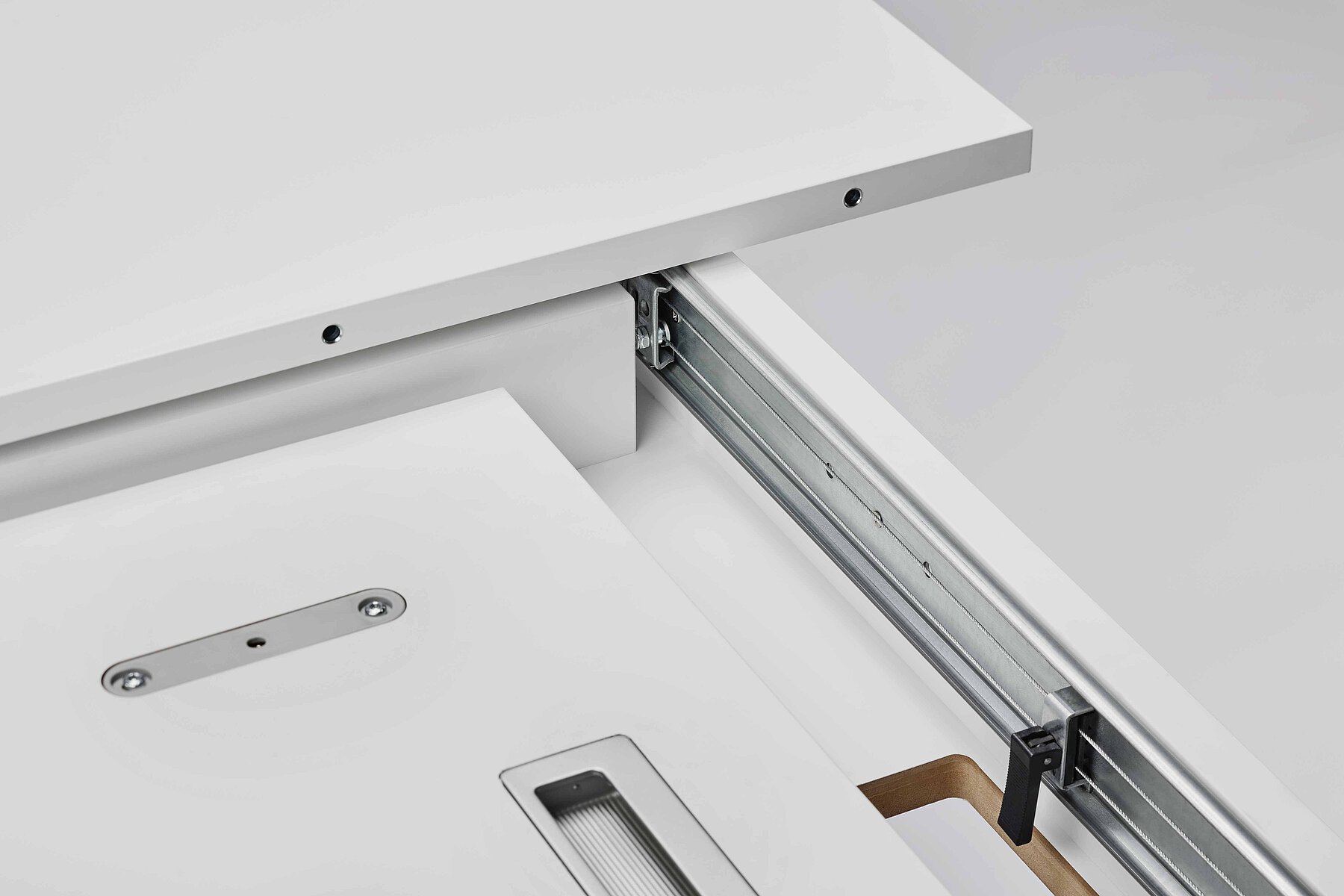

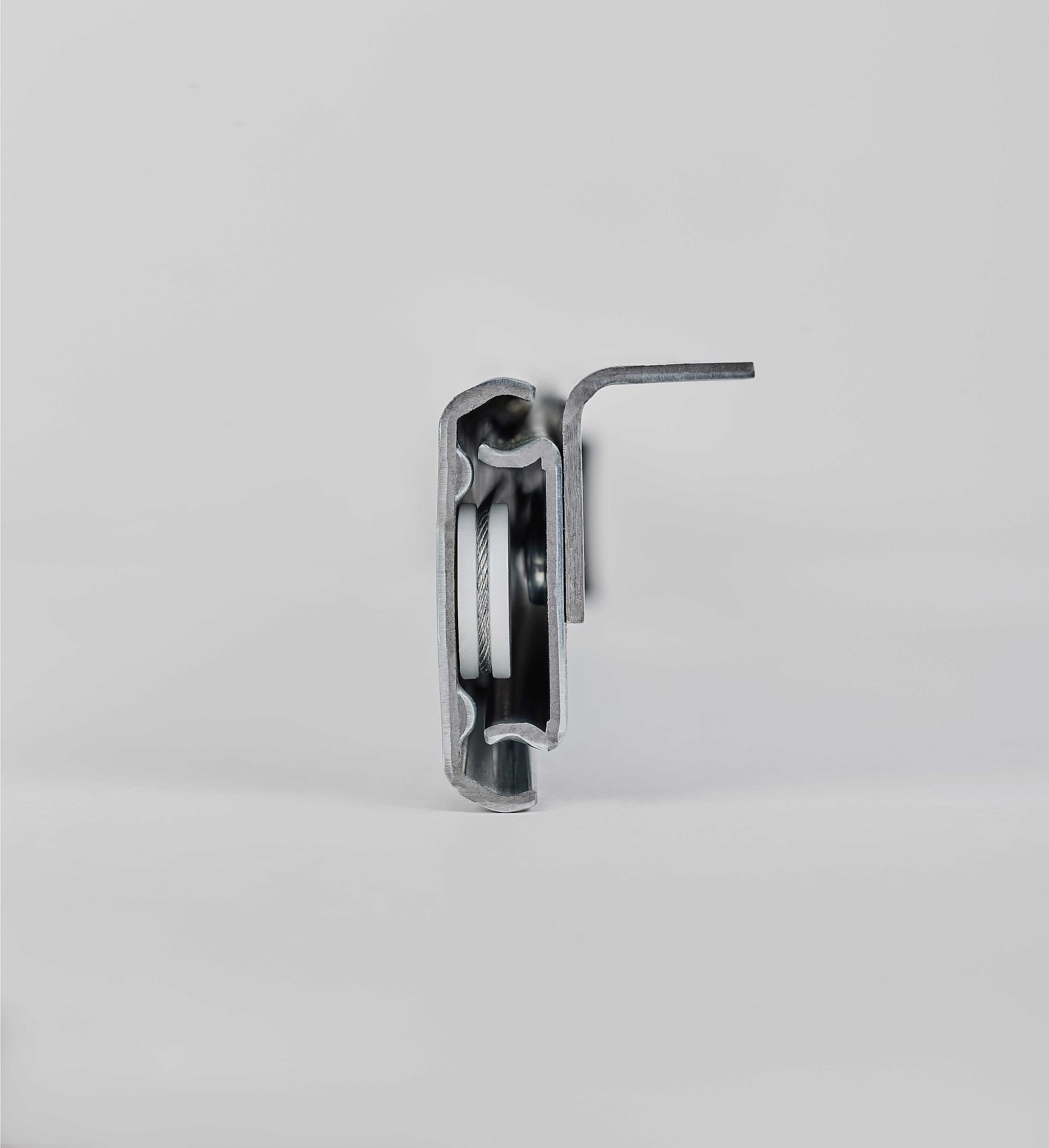

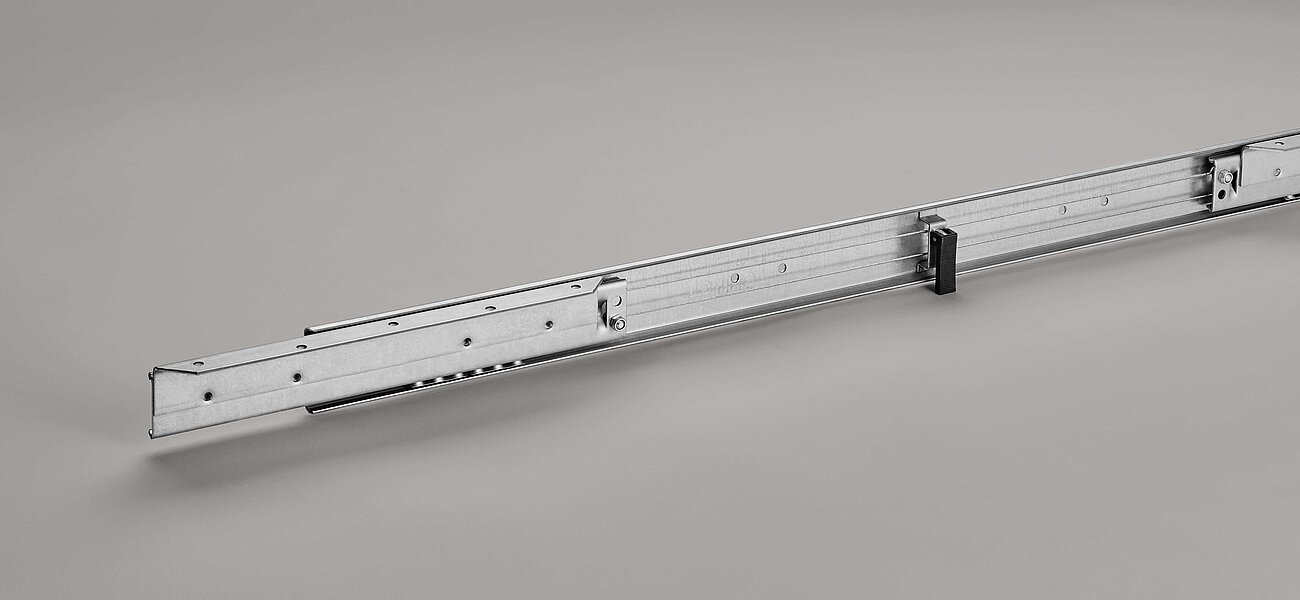

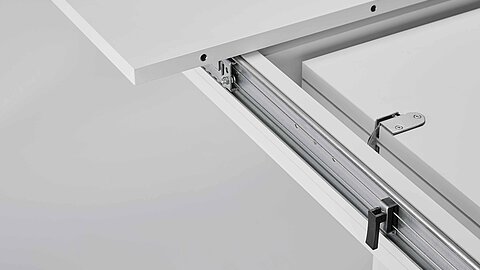

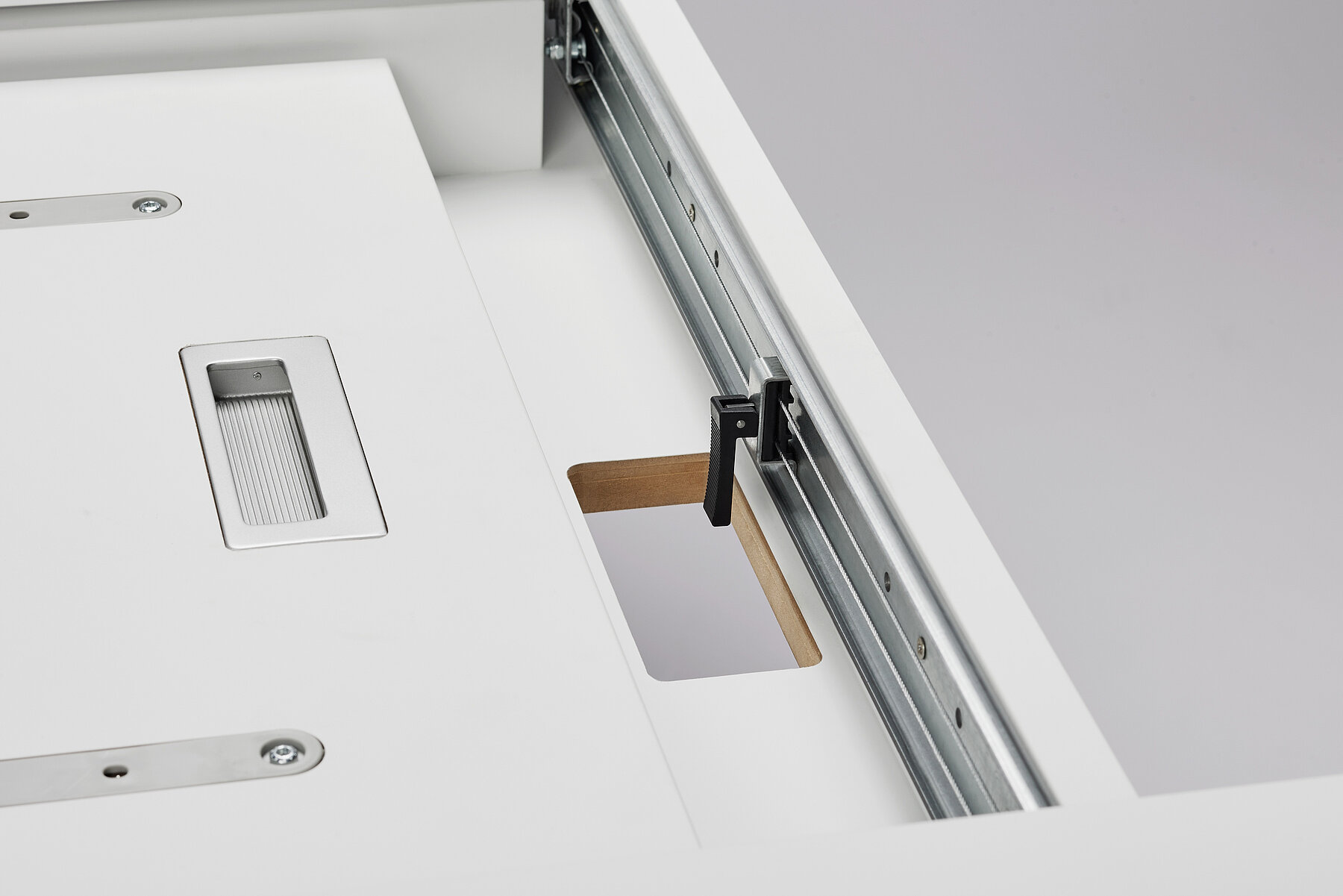

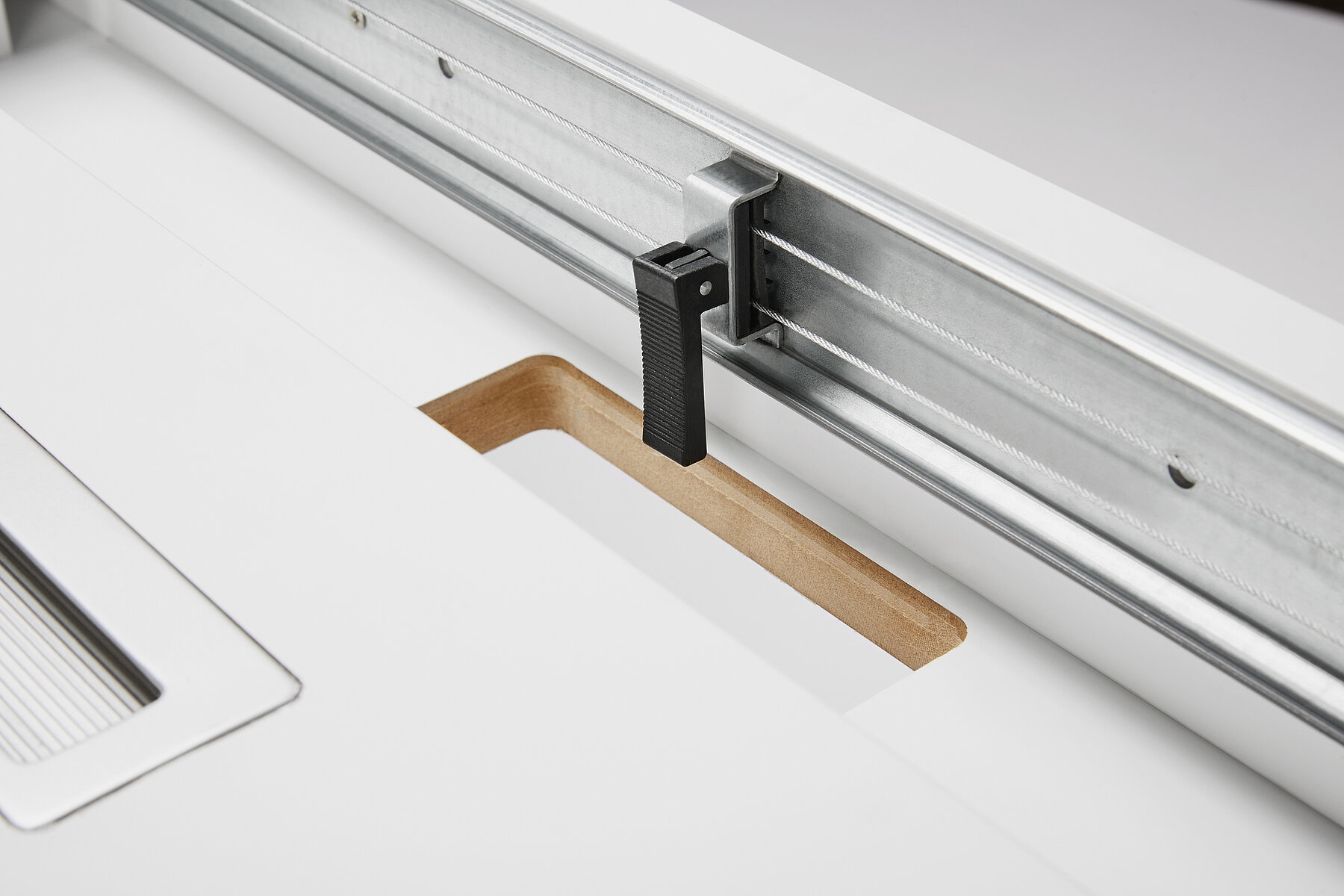

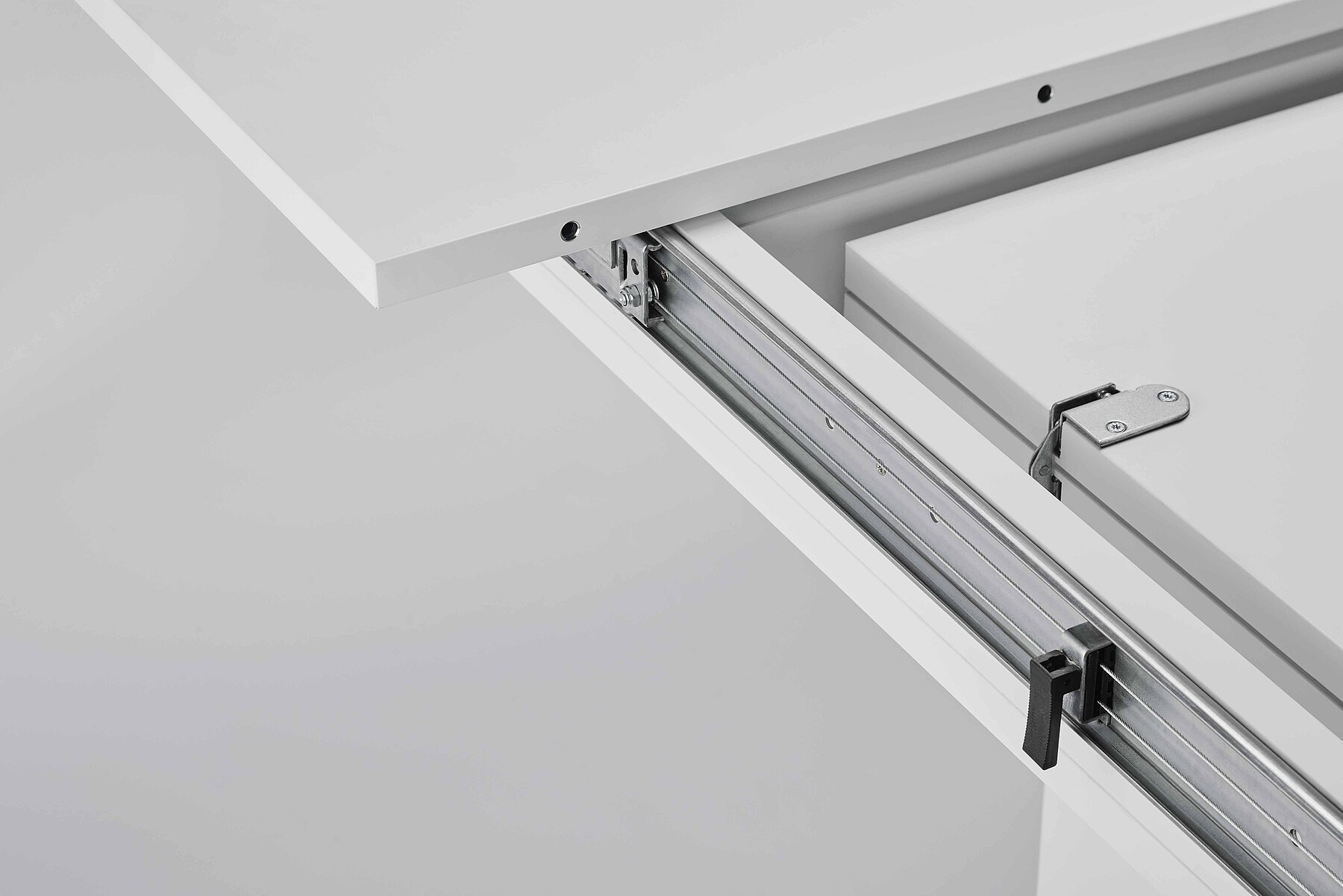

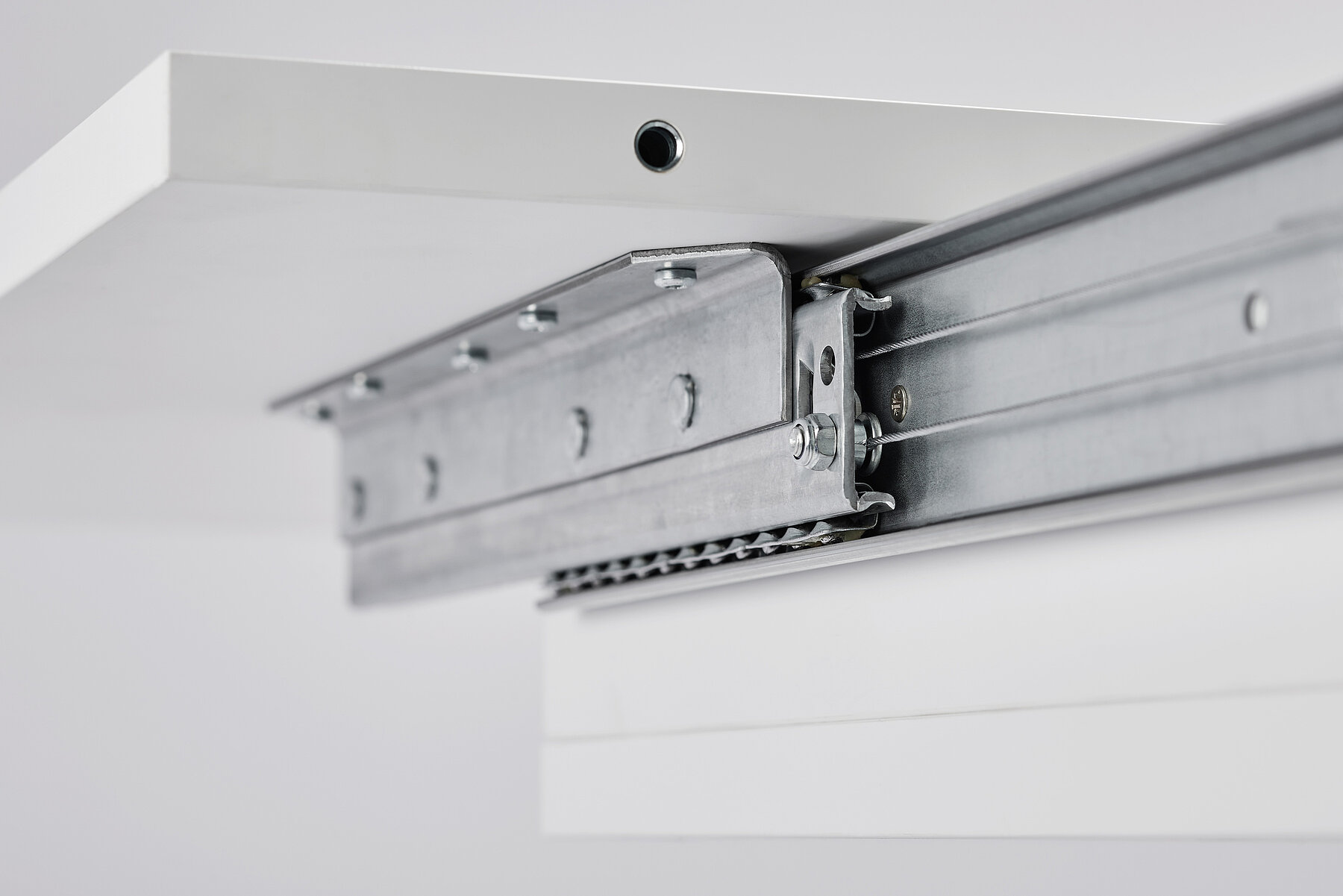

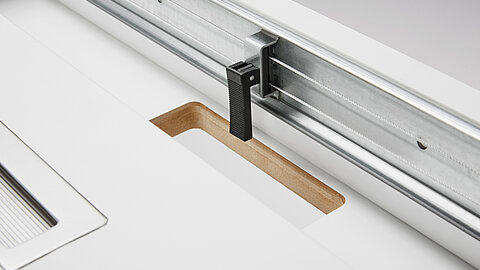

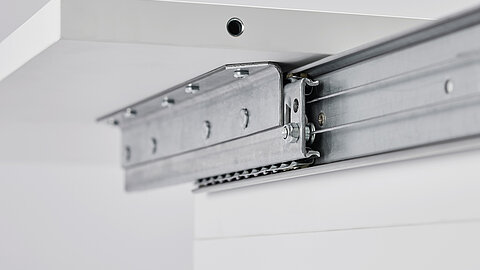

Product images
