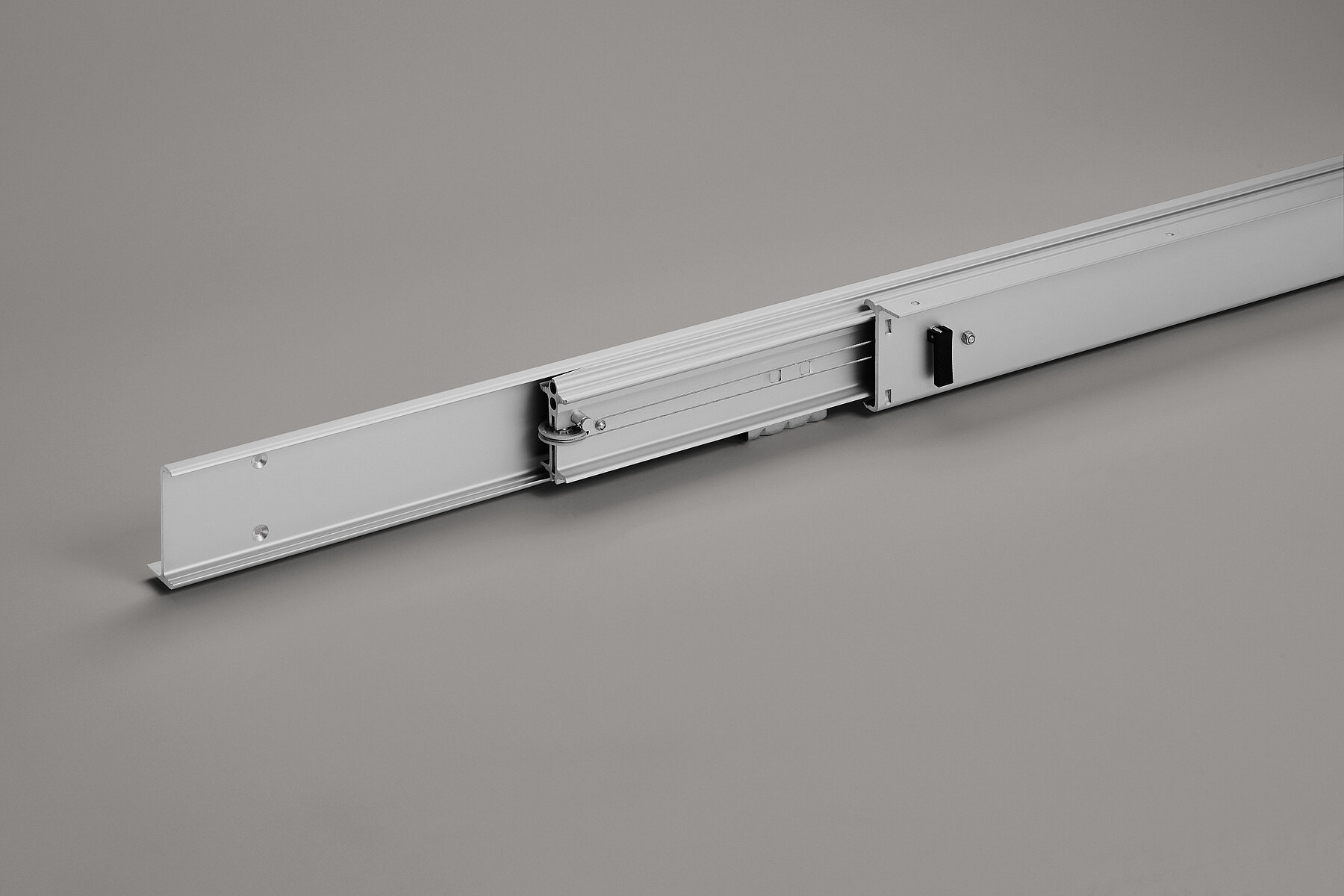

ALU SLIDER COMPACT 77

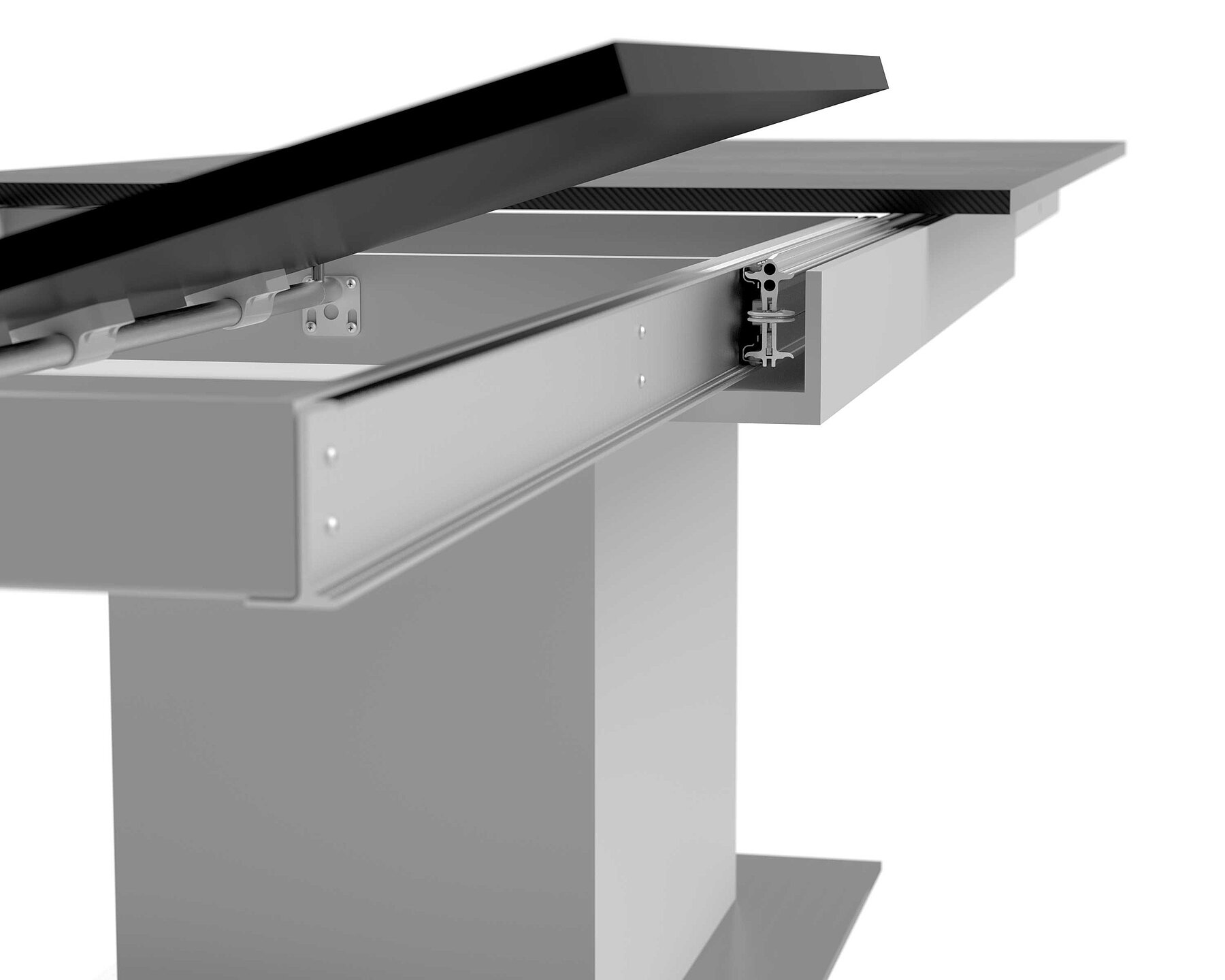

For tables with horizontal separation as top-against-frame

Benefits

Material

Aluminum – The profiles are available mill-finished or in various anodized colors. The precise profile geometry optimizes the handling and provides a high level of safety.

Load capacities

The ALU SLIDER COMPACT 77 standard slides are designed for up to 115 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

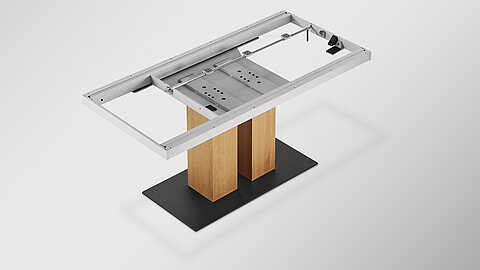

Leg position

With the ALU 77 SLIDER slide system, the positions of the legs can be individually selected.

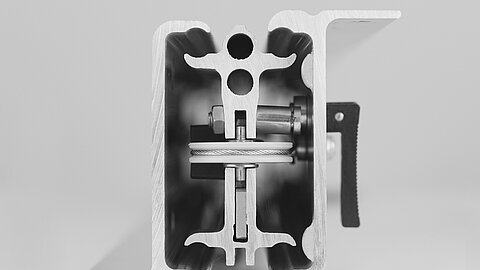

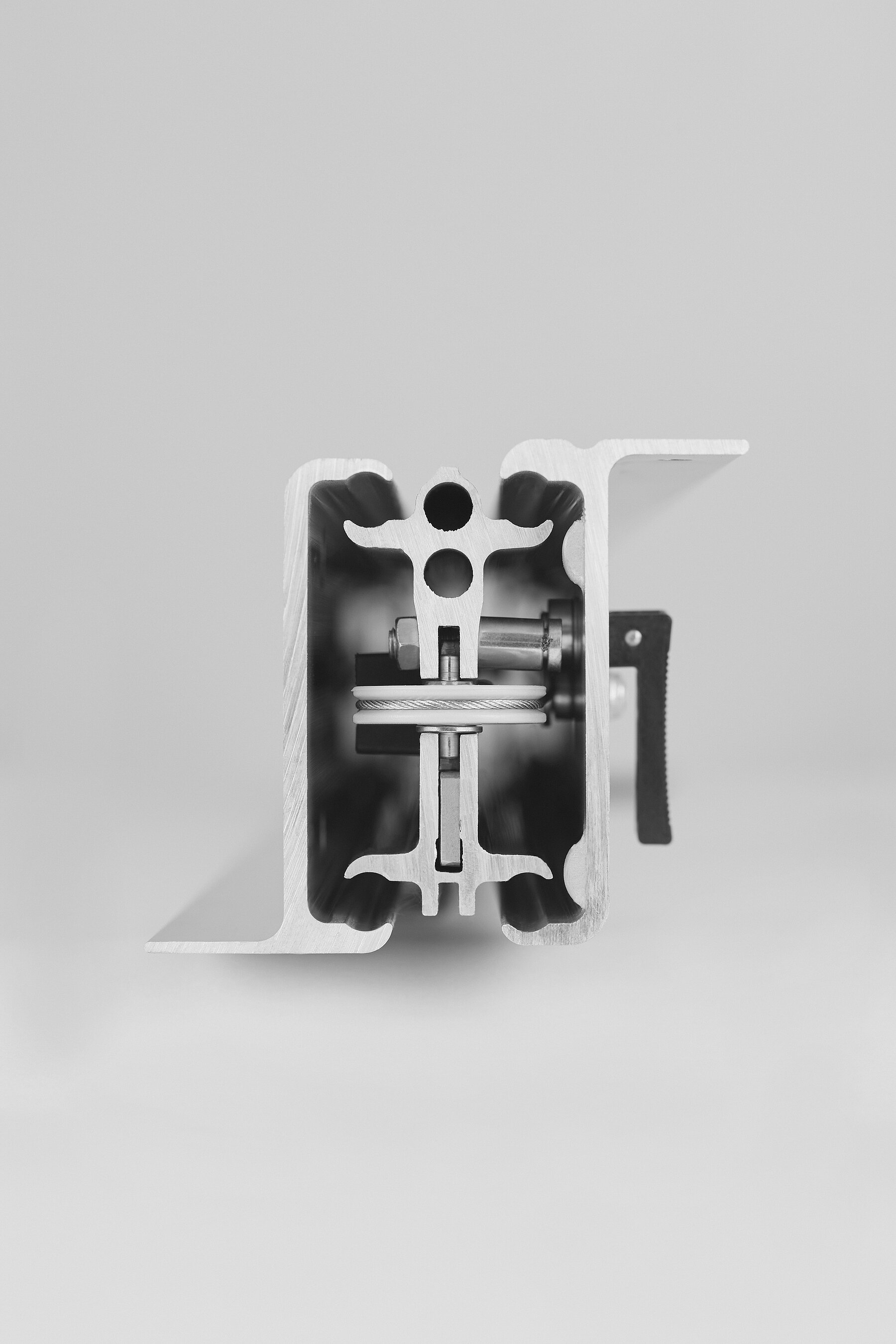

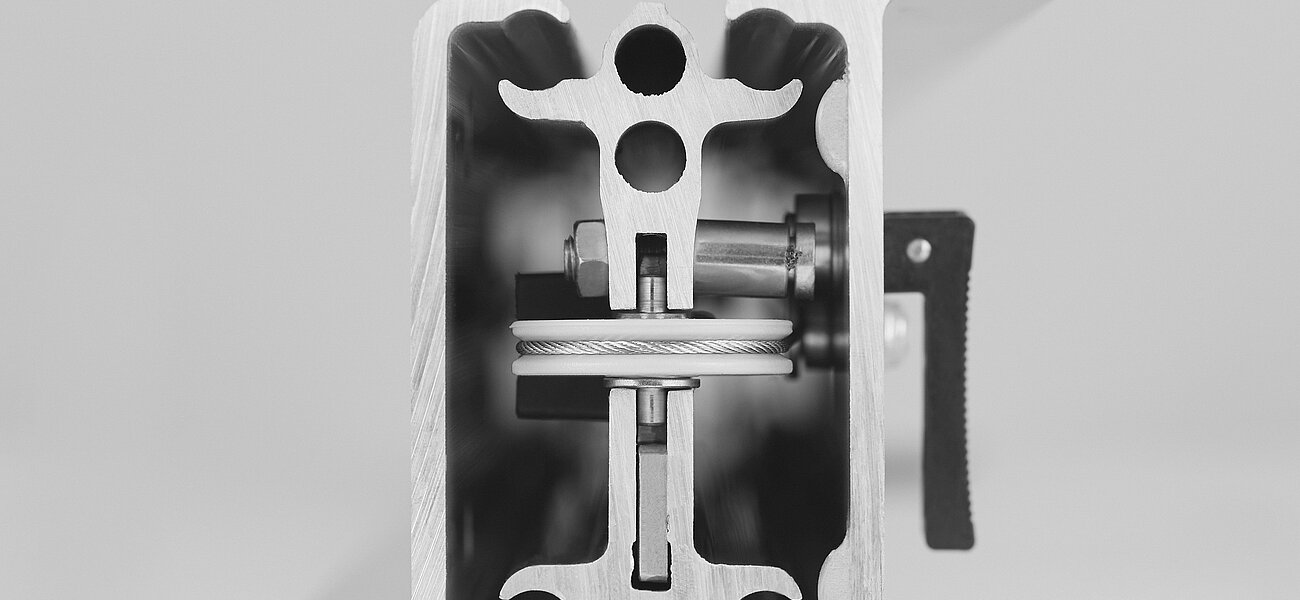

Brake & Accessories

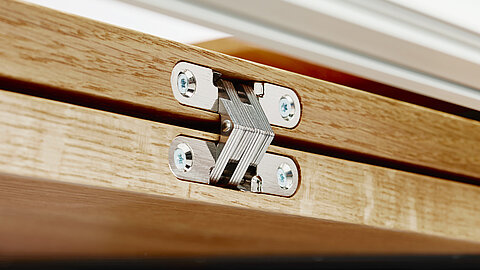

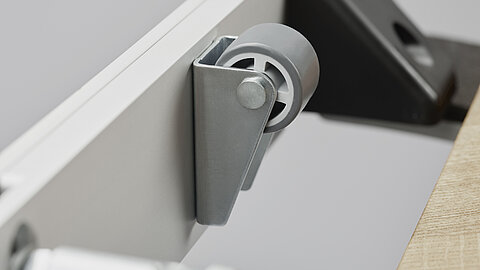

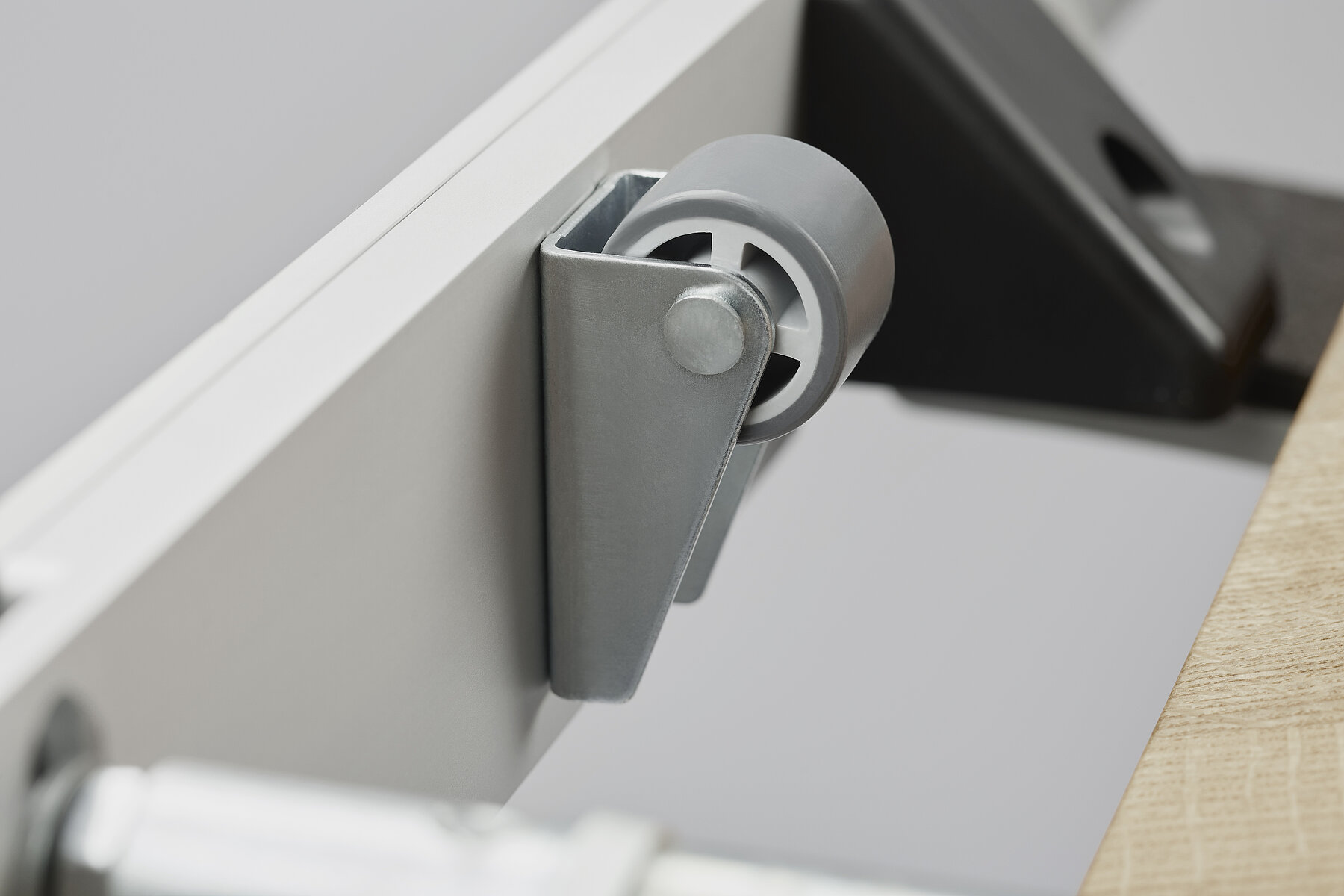

Optimize the ALU 77 SLIDER slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories, such as the FM/FM Stop folding mechanism, for wooden frames, e.g. with the FFM flat folding mechanism or the self-closing device or the V-stabilizer. Please contact us.

Technical details

Type1Length2Way of travelInstallation heightLoad capacity
77 Installation height
 xyz
A7F-S/1300.A71.300 mm1.170 mm82 – 104 mm115 kg
A7F-S/1600.A71.600 mm1.340 mm82 – 104 mm115 kg
A7F-S/1900.A71.900 mm1.600 mm82 – 104 mm115 kg

1) A7F = Alu 77 Frontslide Synchronous | A7F-SB = Synchronous with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

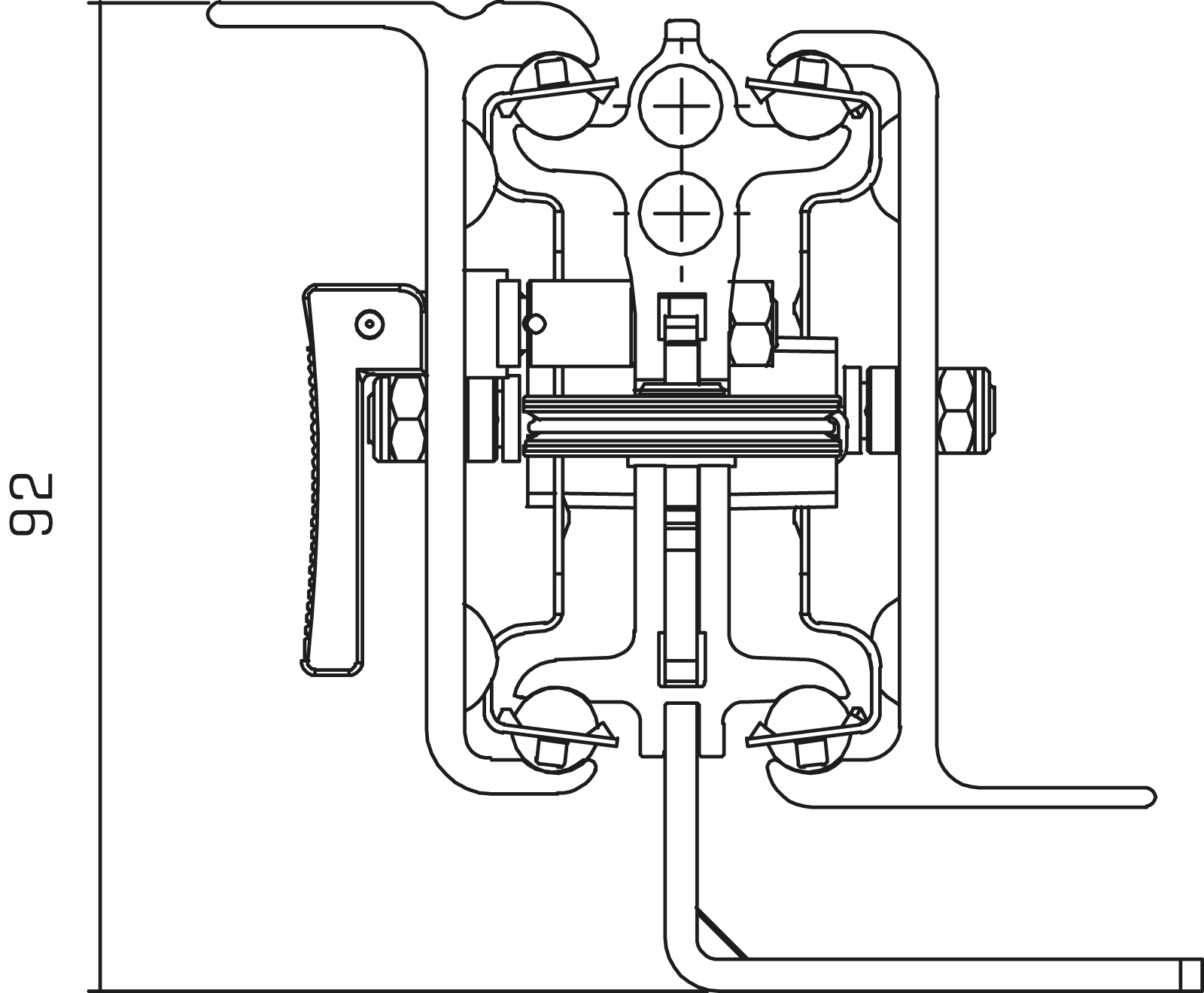

Technical drawings

Alu 77 Slider possible in different installation heights

Alu 77 Slider possible in different installation heights

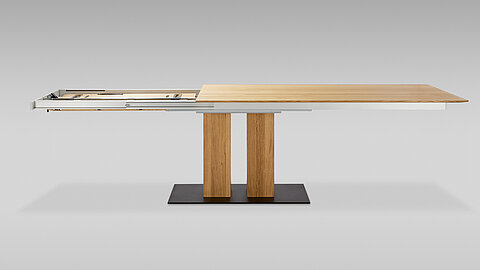

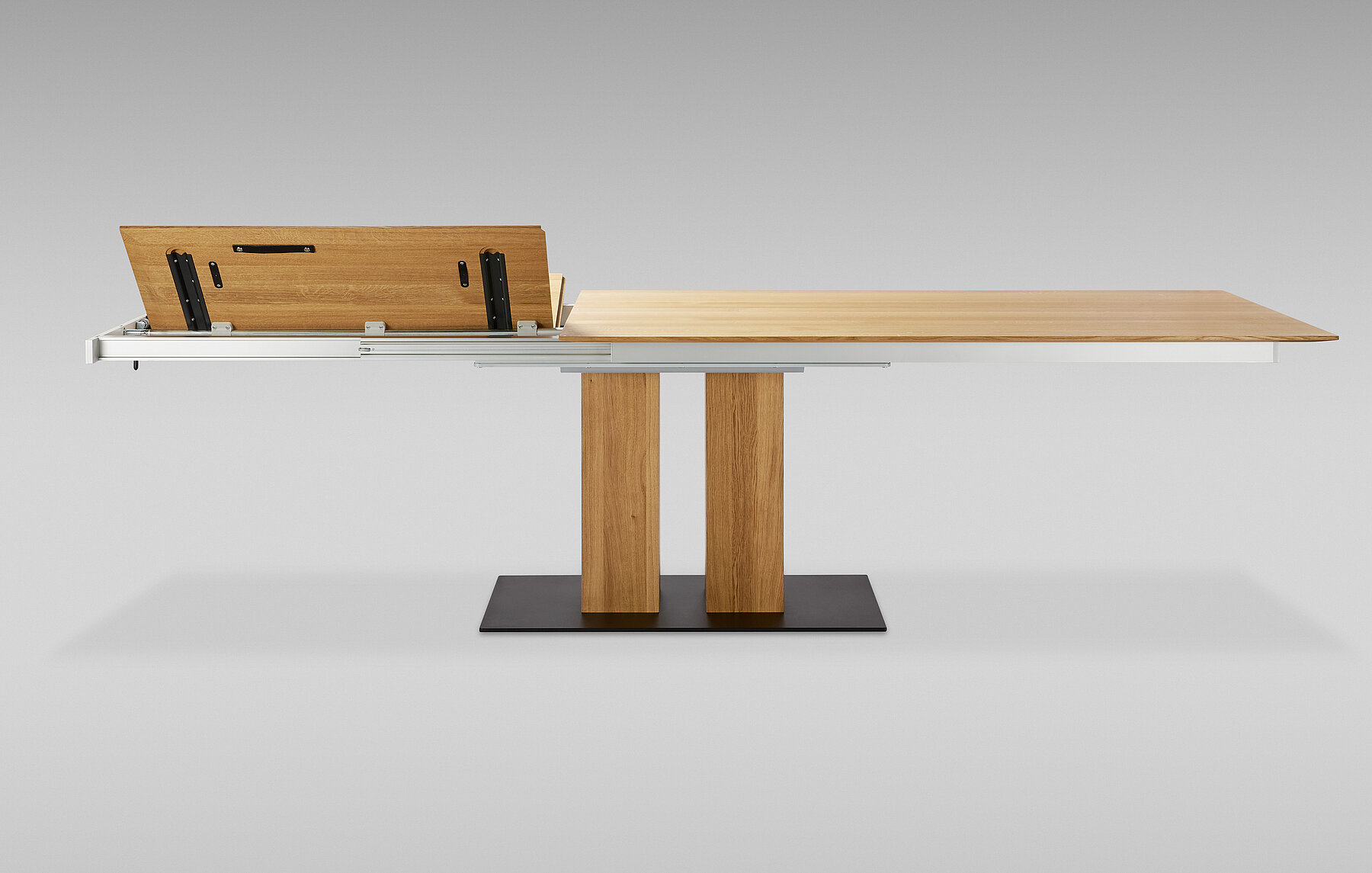

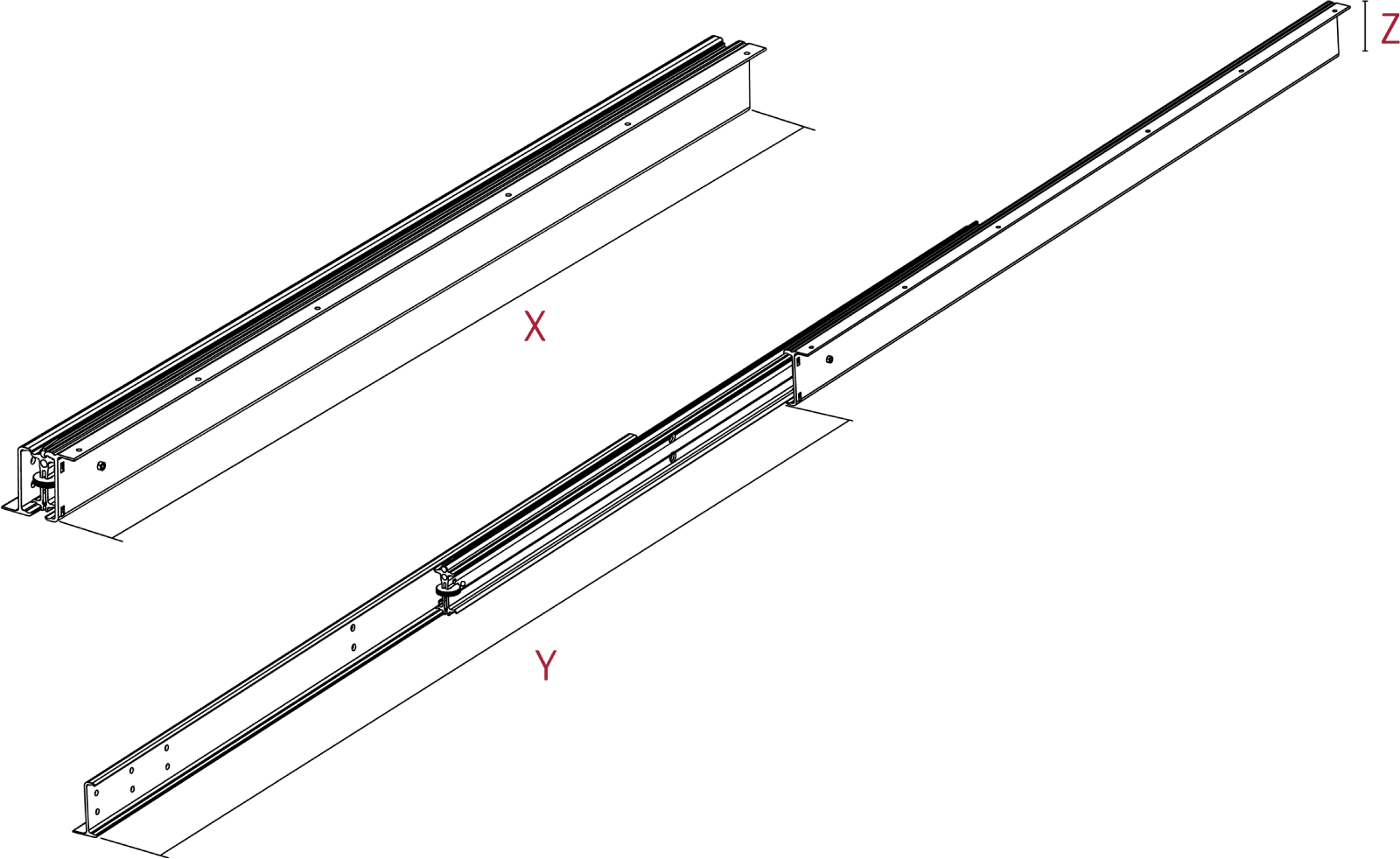

Extension lengths

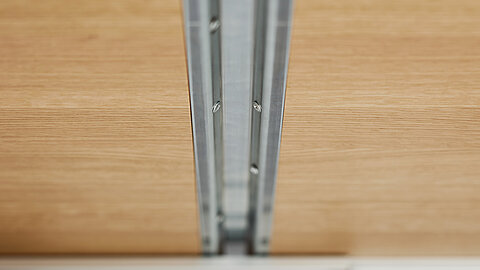

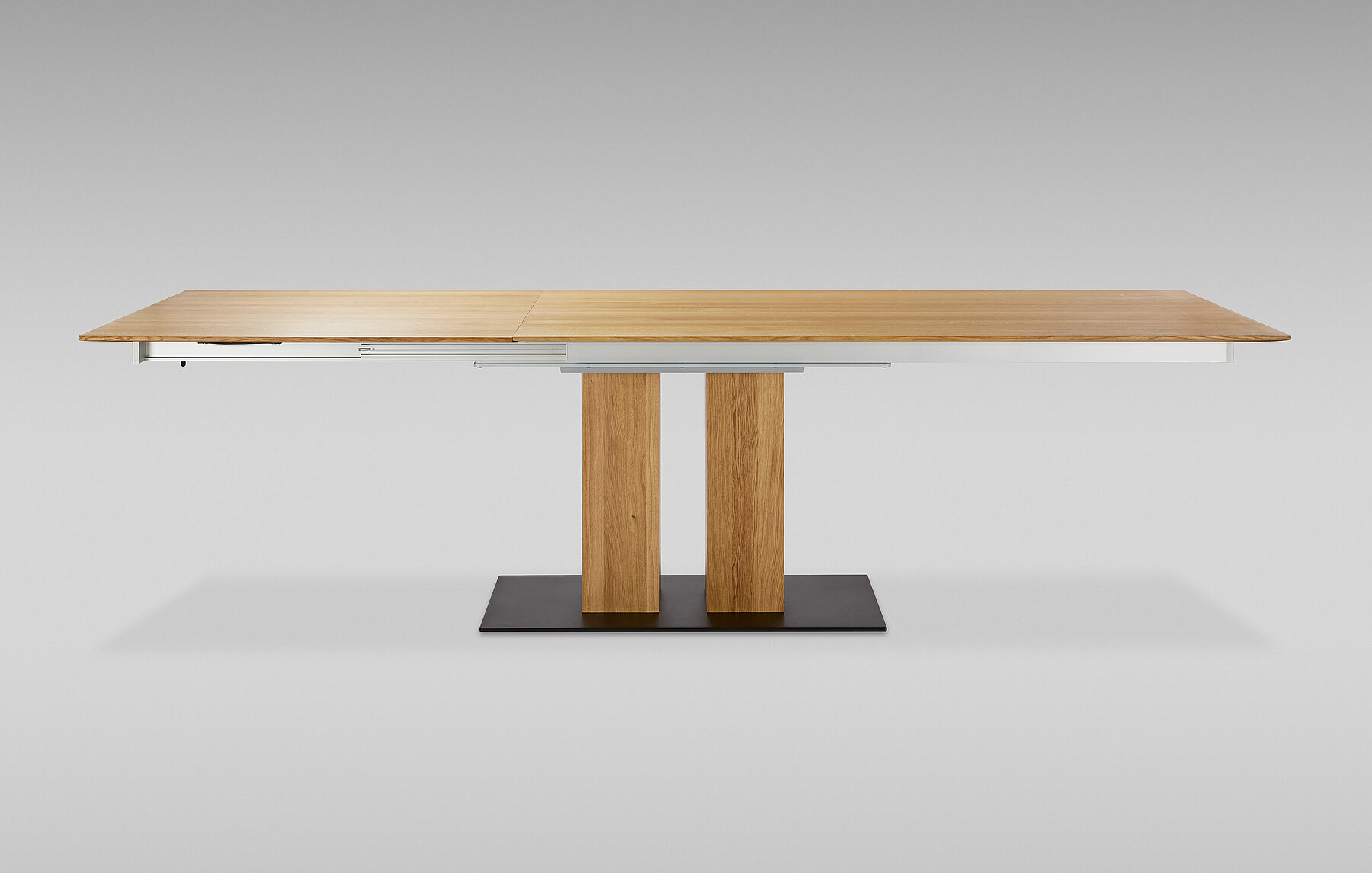

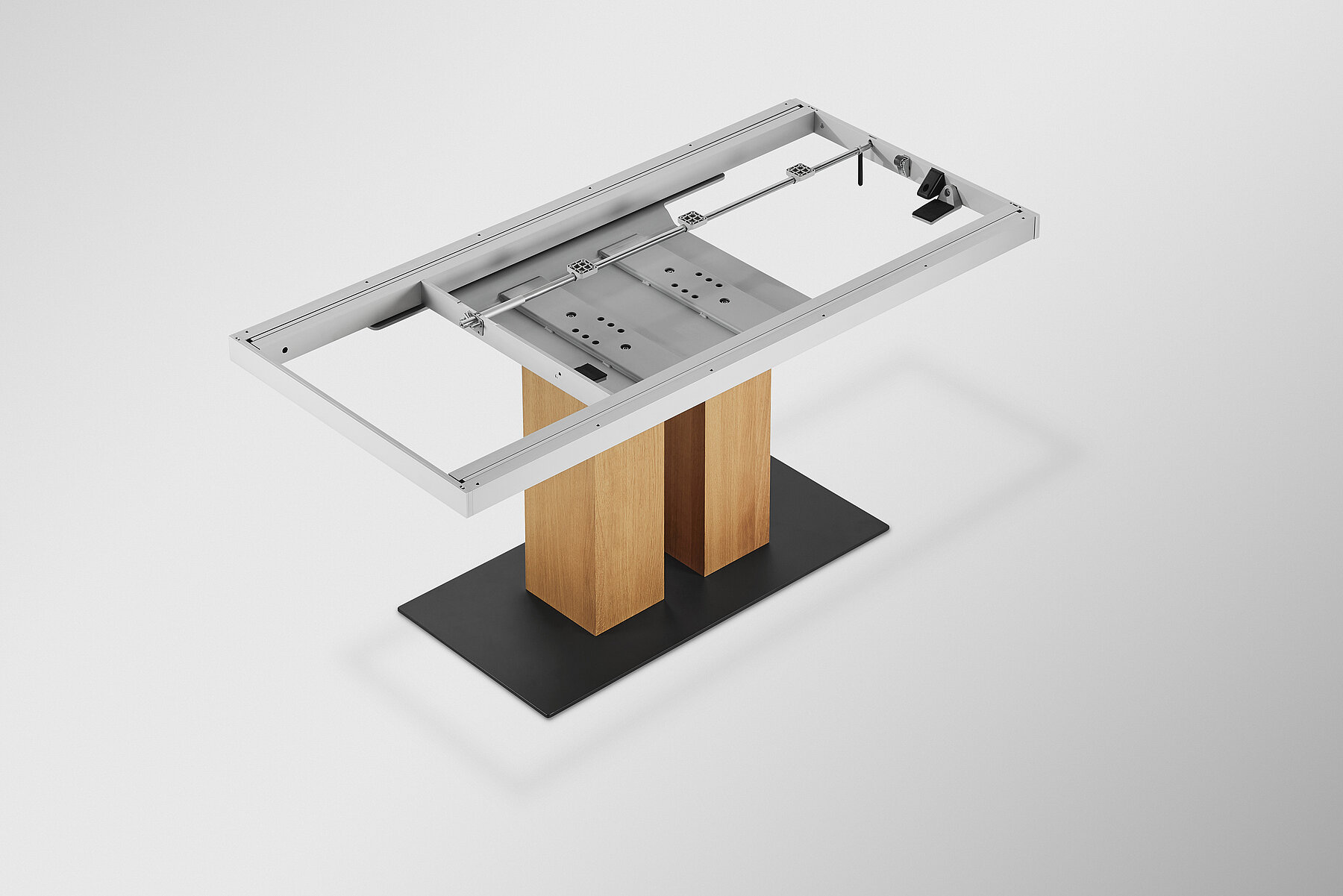

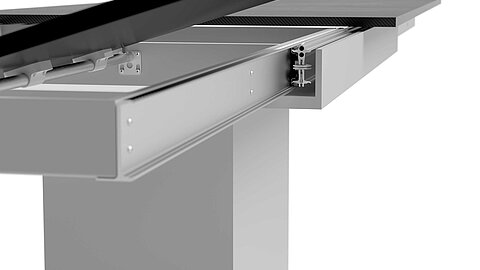

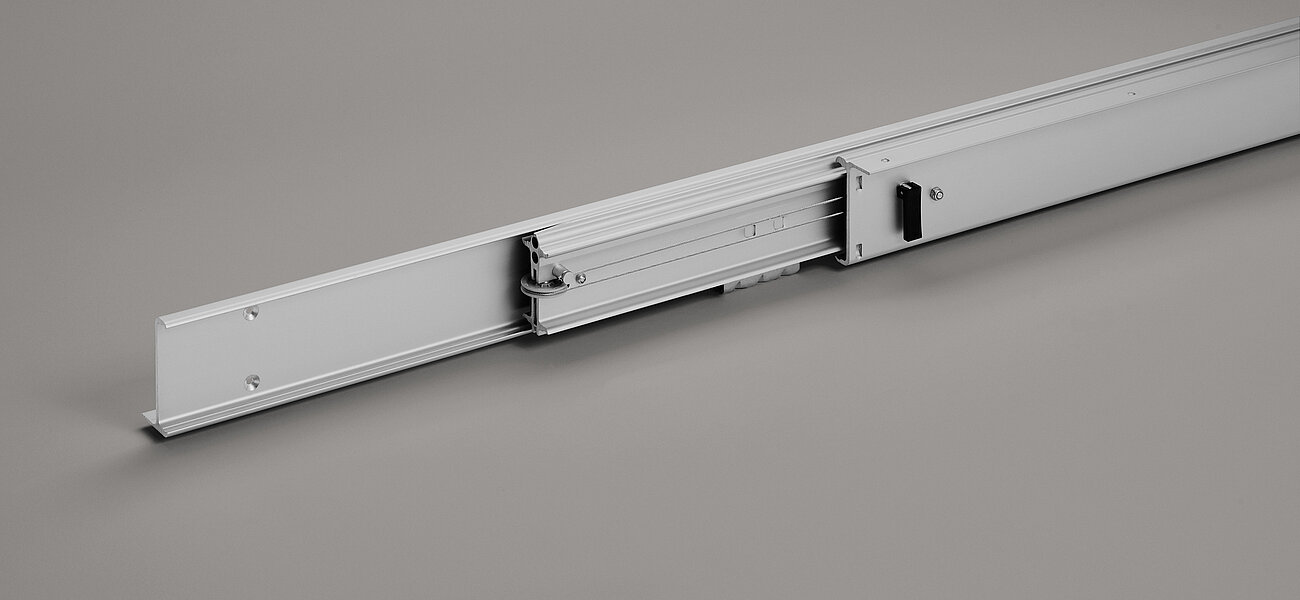

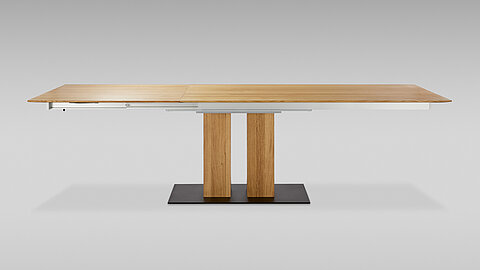

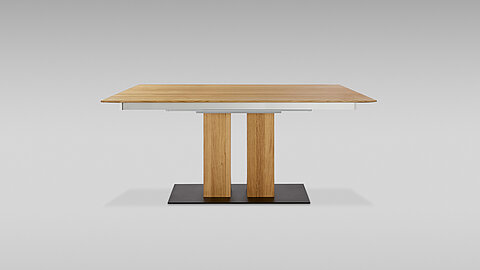

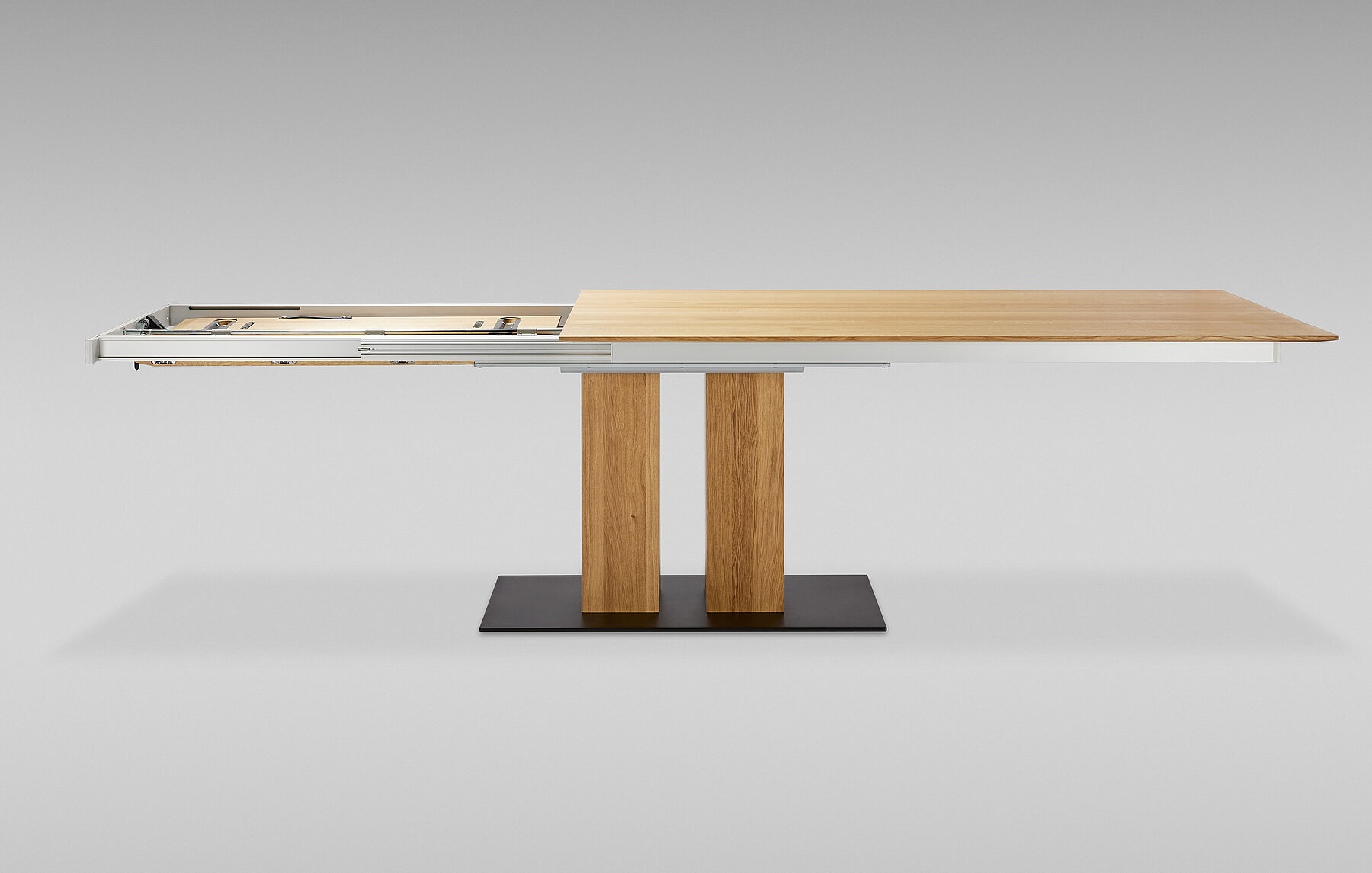

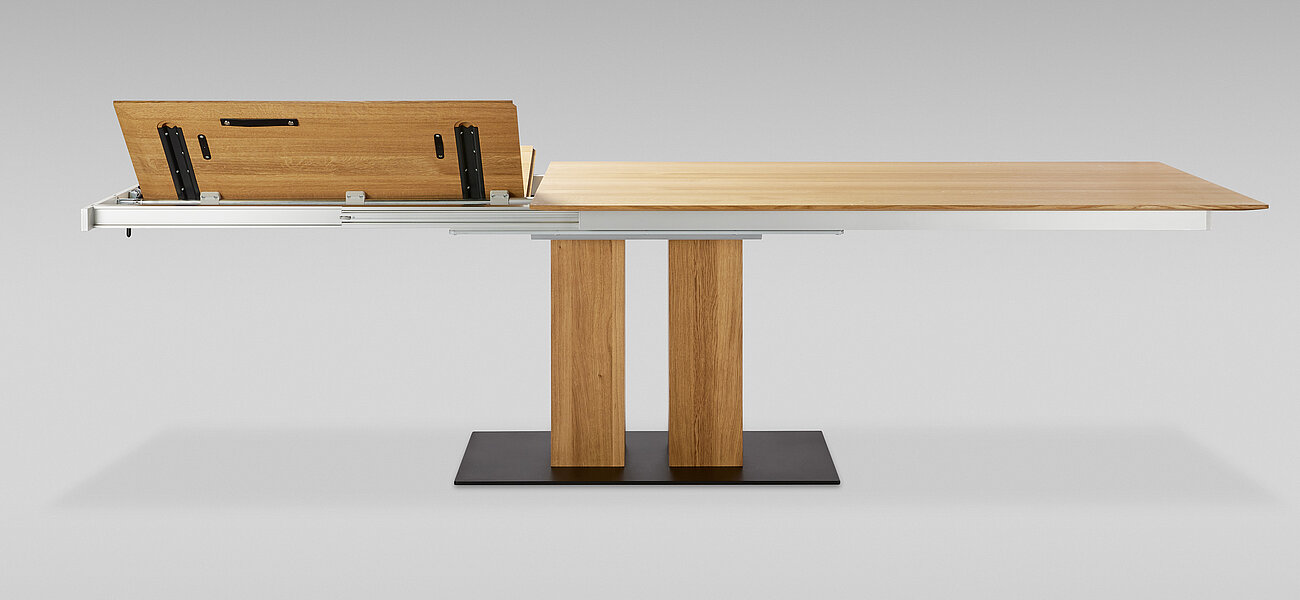

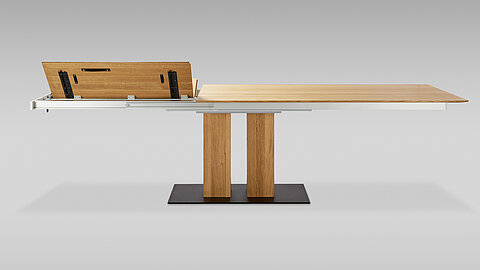

Product images
