ALU FRONTSLIDE UNIVERSAL LIGHT 55

For small to medium design tables with low installation height

Benefits

Material

Aluminum – available mill-finished or in various anodized colors. The precise profile geometry optimizes the handling and provides a high level of safety.

Attractive table design

The ALU 55 UNIVERSAL LIGHT slide system is designed for tables with or without function. The low installation height allows for a particularly attractive table design and is ideally suited as a lightweight construction for small to medium table sizes.

Load capacities

The ALU FRONTSLIDE UNIVERSAL LIGHT 55 standard slides are designed for 90 kg under a uniformly applied load and an installation height of only about 52 mm.

State of the art

The ALU 55 UNIVERSAL LIGHT slide system is equipped with high-quality, ball-bearing rollers for particularly smooth, consistent and easy running. It offers you state-of-the-art technology and is particularly abrasion-resistant and impact-resistant.

Outdoor

Outdoor compatible



Brake & Accessories

Can be combined with matching accessories such as  the Screw brake, the FM/FM Stop folding mechanism or, for wooden frames, also with the FFM flat folding mechanism.The ALU 55 UNIVERSAL LIGHT slide system is suitable for all table leaf materials and can be combined with all attachments.

Technical details

Type1Length2way of travelInstallation heightInstallation widthLoad capacity
55 Installation height
 xyz
A5ULF/1200.A5UL1.200 mmca. 800 mmca. 52 mm62 mm90 kg
A5ULF/1400.A5UL1.200 mmca. 930 mmca. 52 mm62 mm90 kg
A5ULF /1600.A5UL1.200 mmca. 1.060 mmca. 52 mm62 mm90 kg

1) A5ULF = Alu 55 Universal Light Frontslide| A5ULF-B = Alu 55 Universal Light Teleskop with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

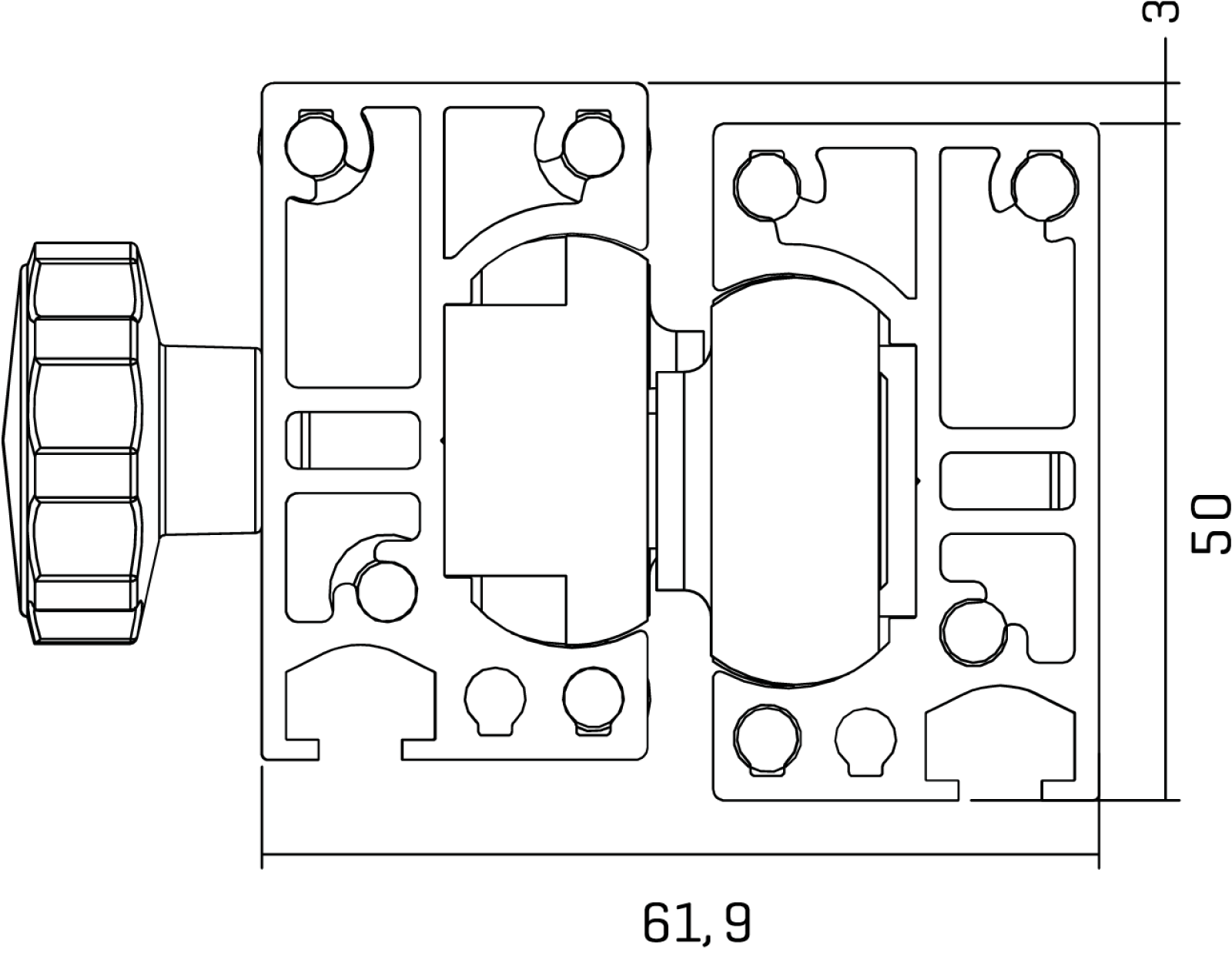

Technical drawings

Installation height 55

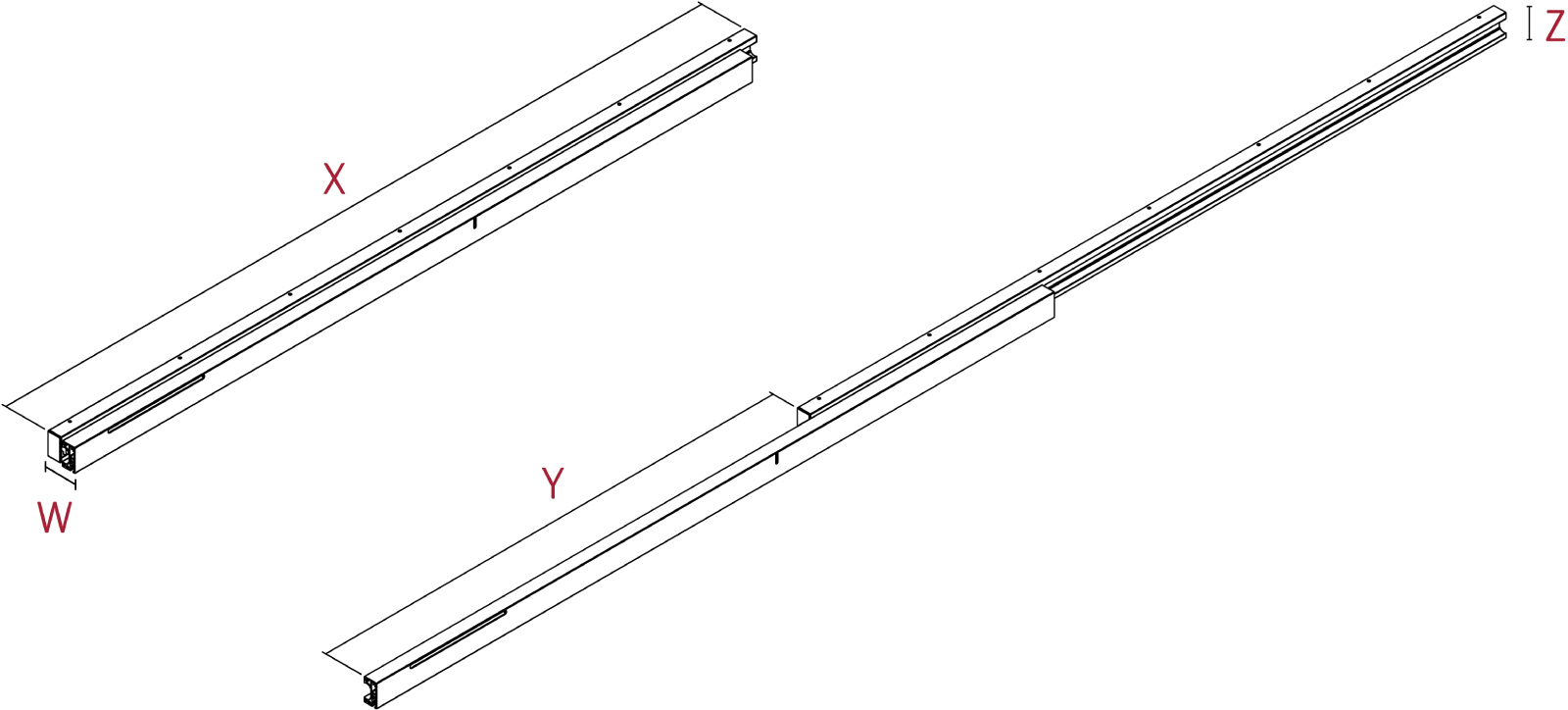

Extension lengths

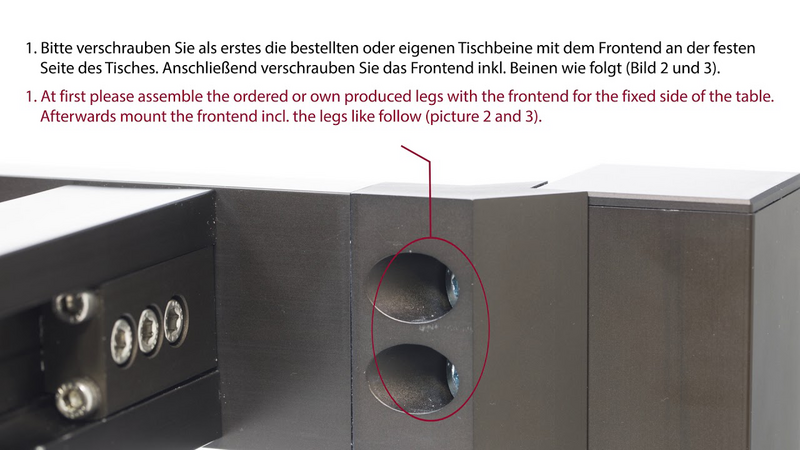

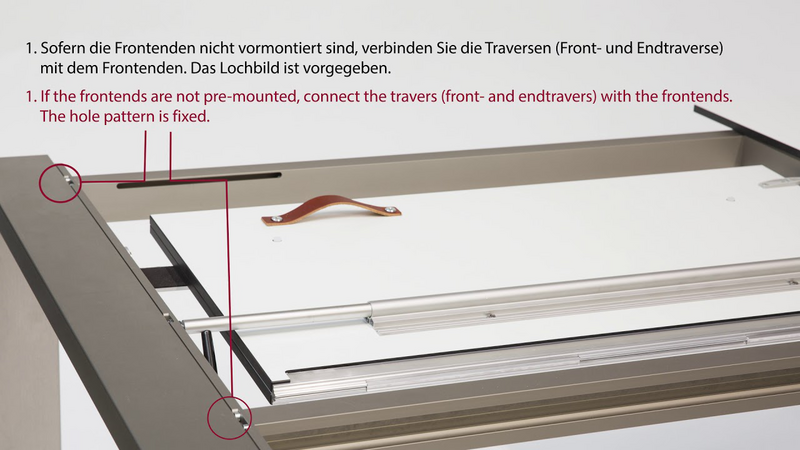

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen
Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen
Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

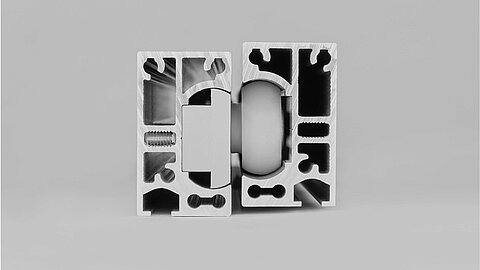

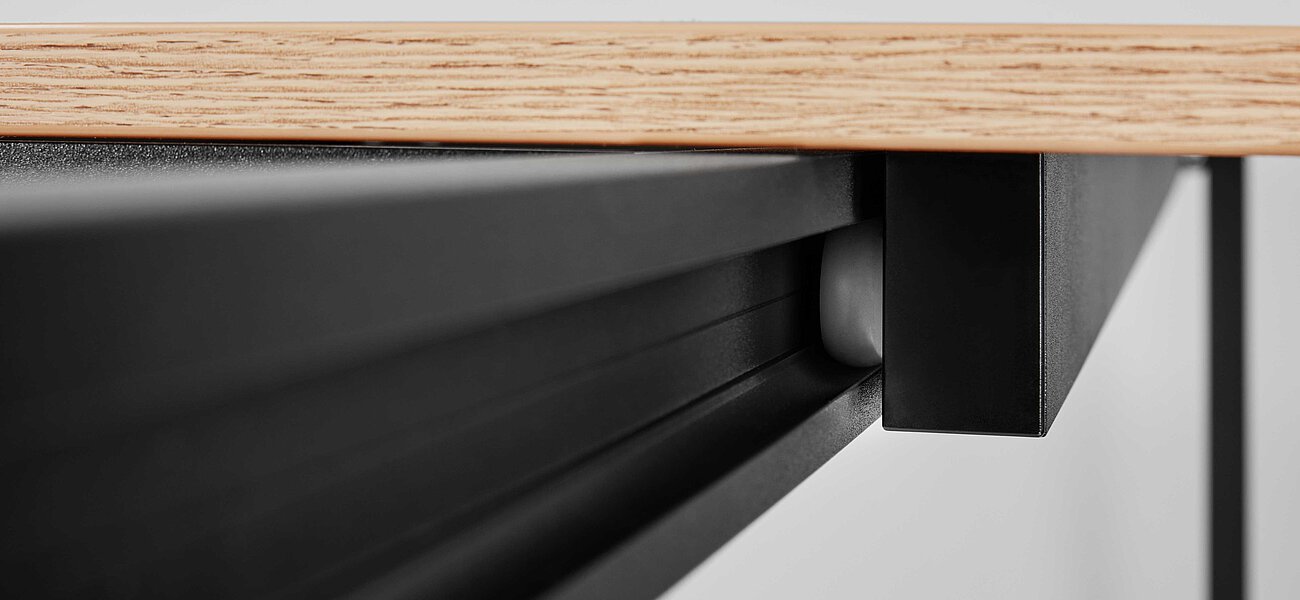

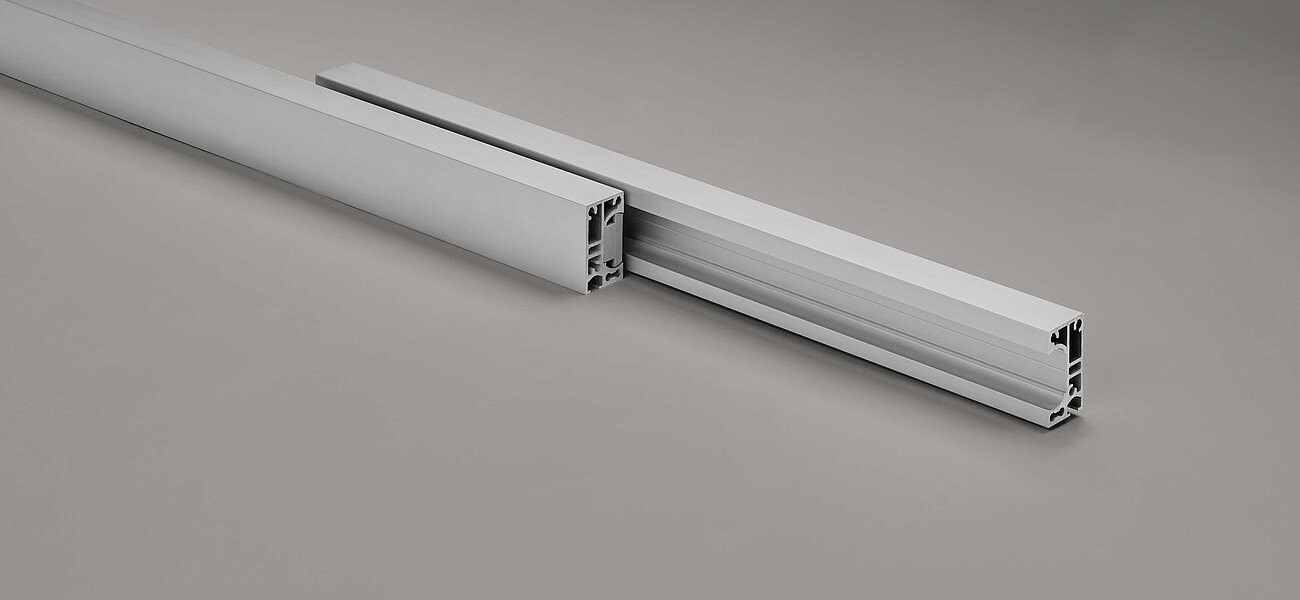

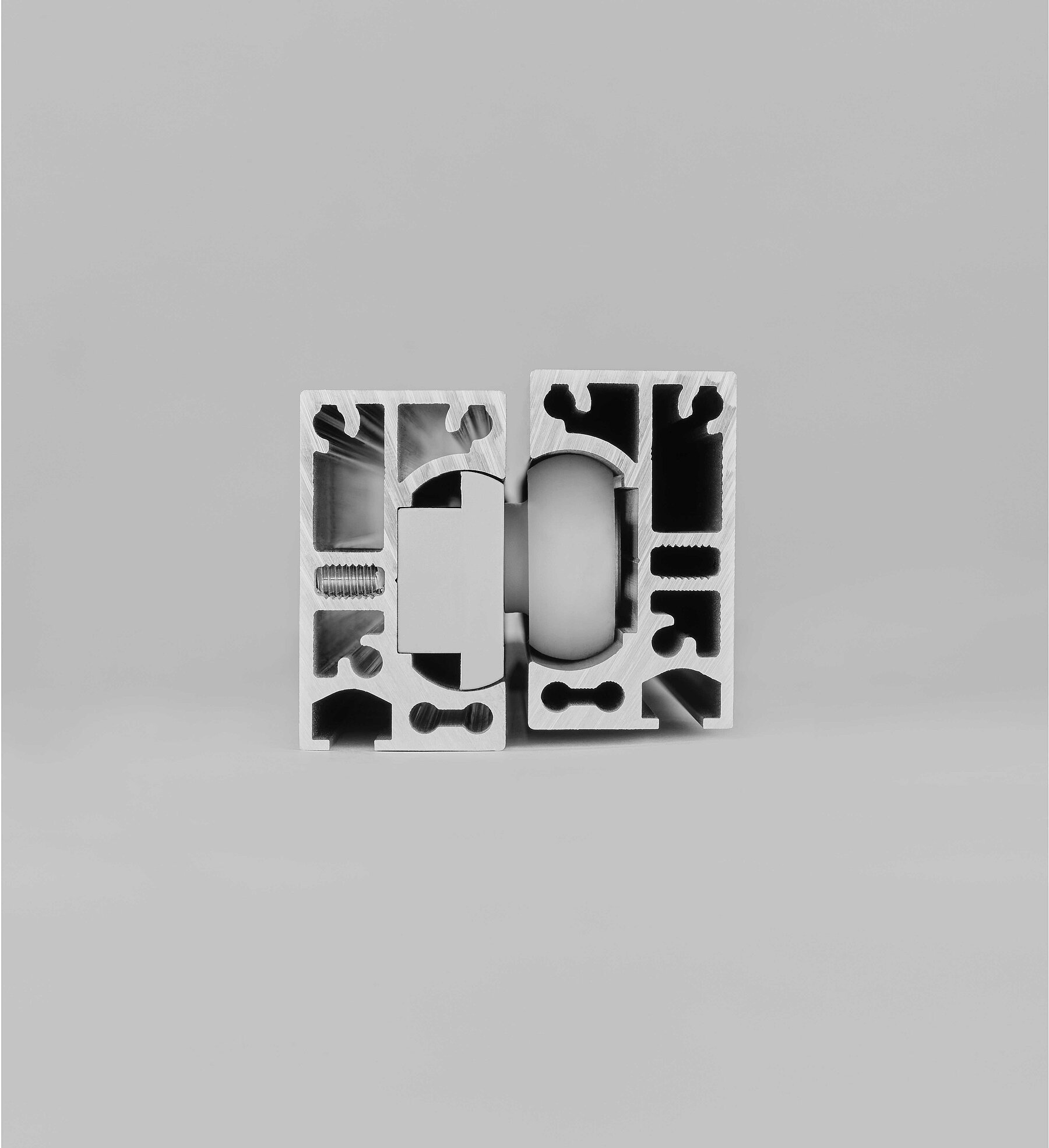

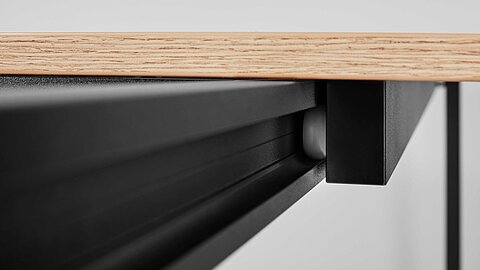

Product images
