ALU FRONTSLIDE TELESCOPE 55

For extra long tables

Benefits

Material

Aluminum – available in various anodized colors.

Load capacities

The ALU FRONTSLIDE TELESCOPE 55 standard slides are designed for 90 kg under a uniformly applied load, with a particularly low installation height of 58 mm.

Slide

The ALU 55 FRONTSLIDE TELESKOP slide system is available as a single or telescopic pull-out system.

Lengths

The ALU 55 FRONTSLIDE TELESKOP slide system is equipped with a reinforced middle profile and offers special stability. It is suitable for closed table sizes of 800 – 2,400 mm and table sizes of up to 3,600 mm in an opened condition.

Outdoor

Outdoor compatible

Accessories

Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2Way of travelInstallation heightLoad capacity
Alu 55 Frontslide
A5Fxyz
A5F/1000.A51.000 mm650 mmca. 56 mm90 kg
A5F/1400.A51.400 mm950 mmca. 56 mm90 kg
A5F/1600.A51.600 mm1.100 mmca. 56 mm90 kg
A5F/1800.A51.800 mm1.250 mmca. 56 mm90 kg
Alu 55 Frontslide Telescope
A5F-Txyz
A5F-T/980.A5980 mm950 mmca. 58 mm90 kg
A5F-T/1380.A51.380 mm1.350 mmca. 58 mm90 kg
A5F-T/1680.A51.680 mm1.650 mmca. 58 mm90 kg
A5F-T/1980.A51.980 mm1.950 mmca. 58 mm90 kg

1) A5F = Alu 55 Frontslide | A5F-T = Alu 55 Frontslide telescope
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

55 Installation height

Extension lengths

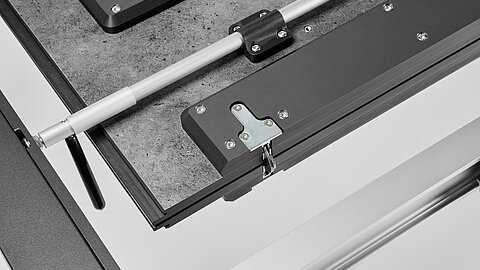

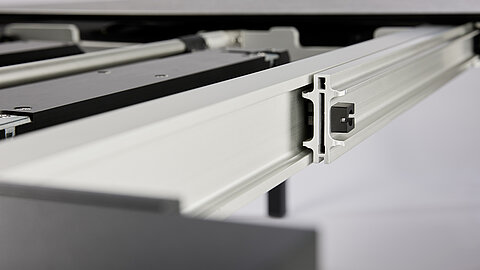

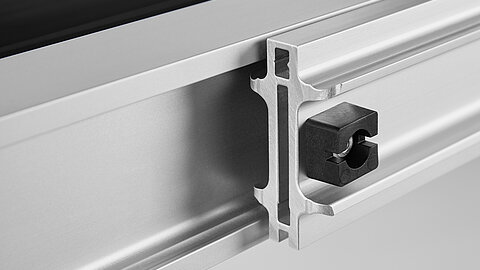

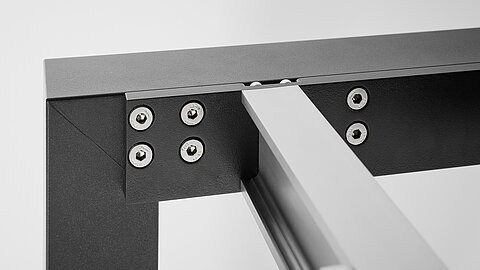

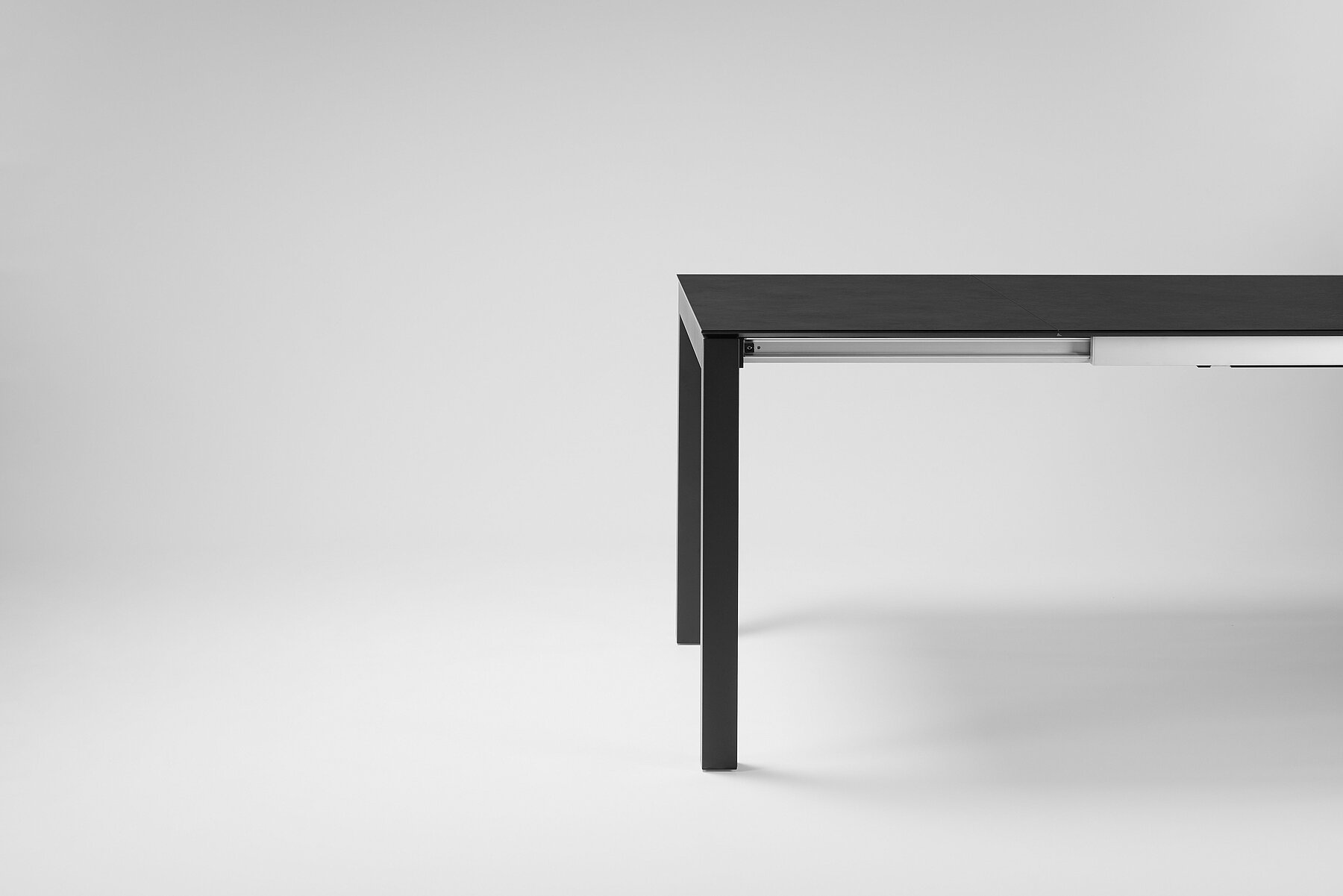

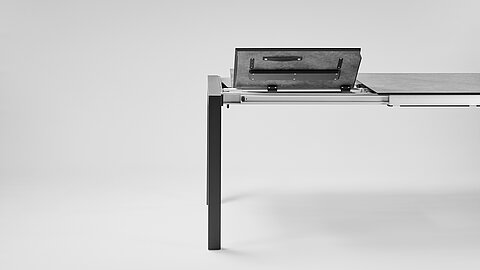

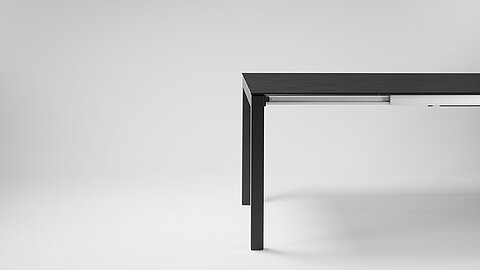

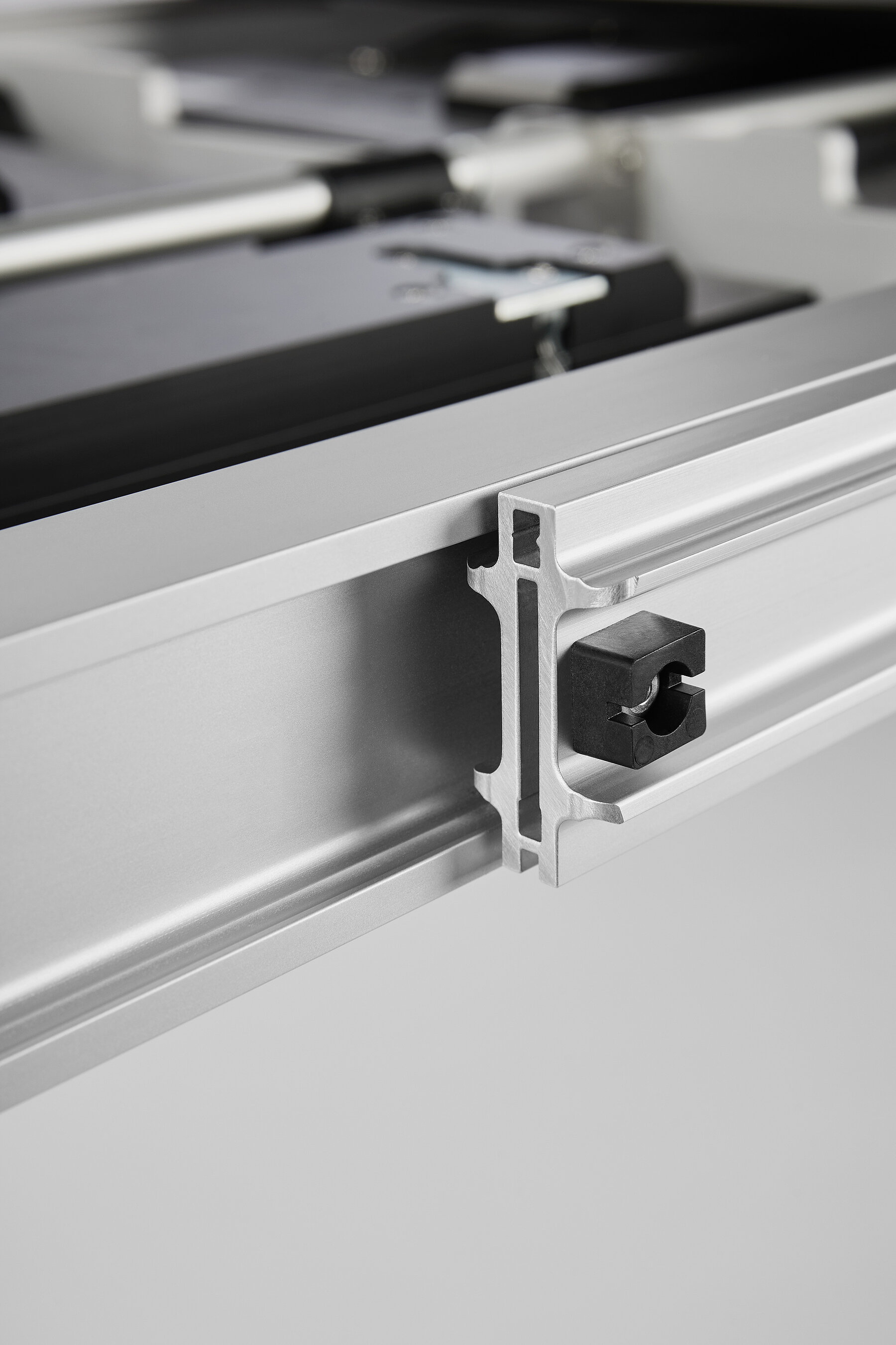

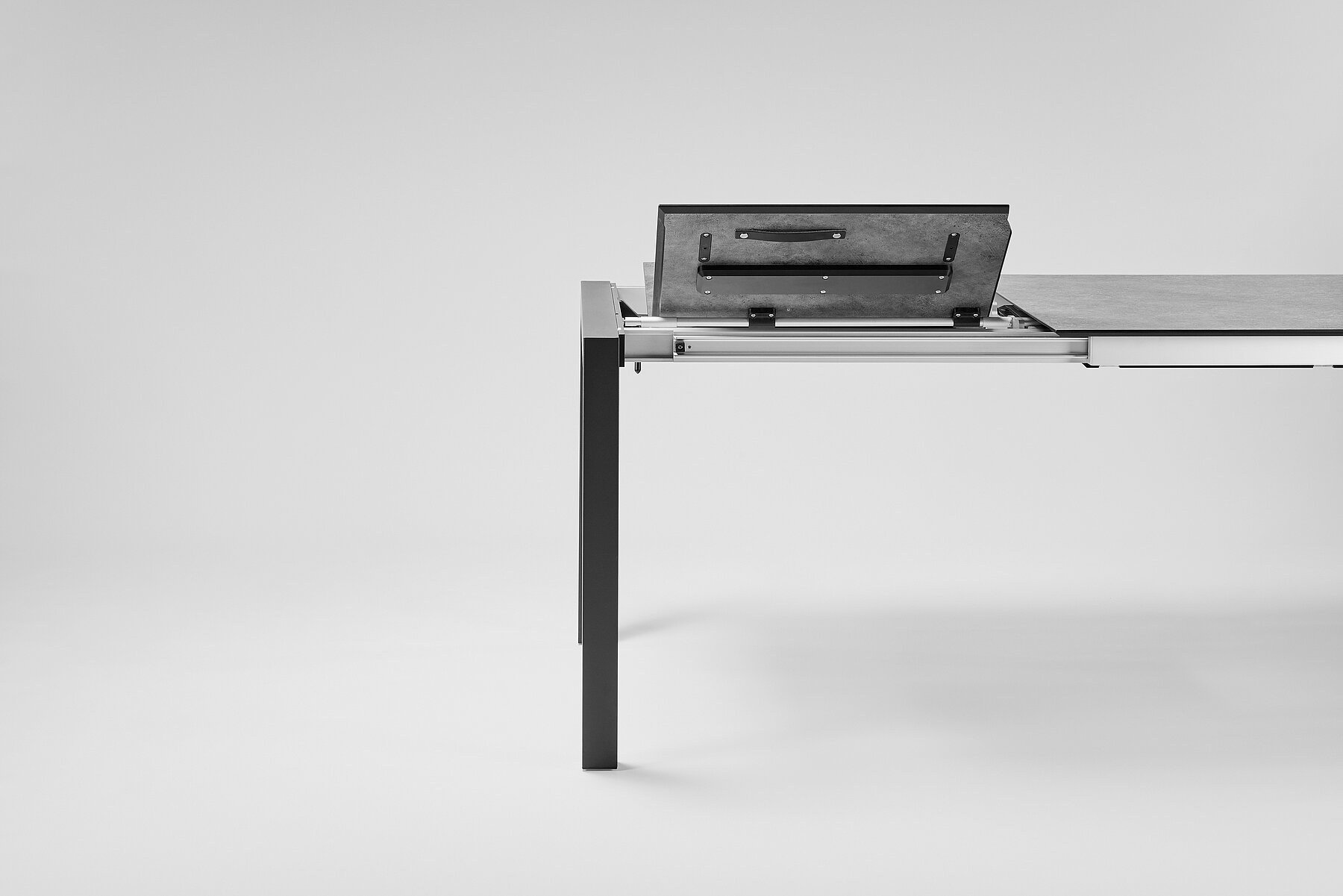

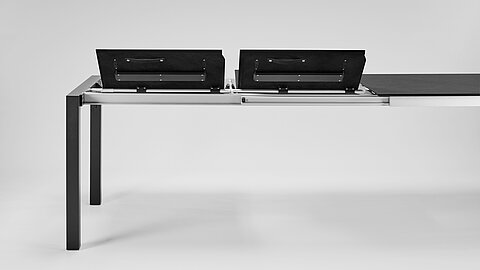

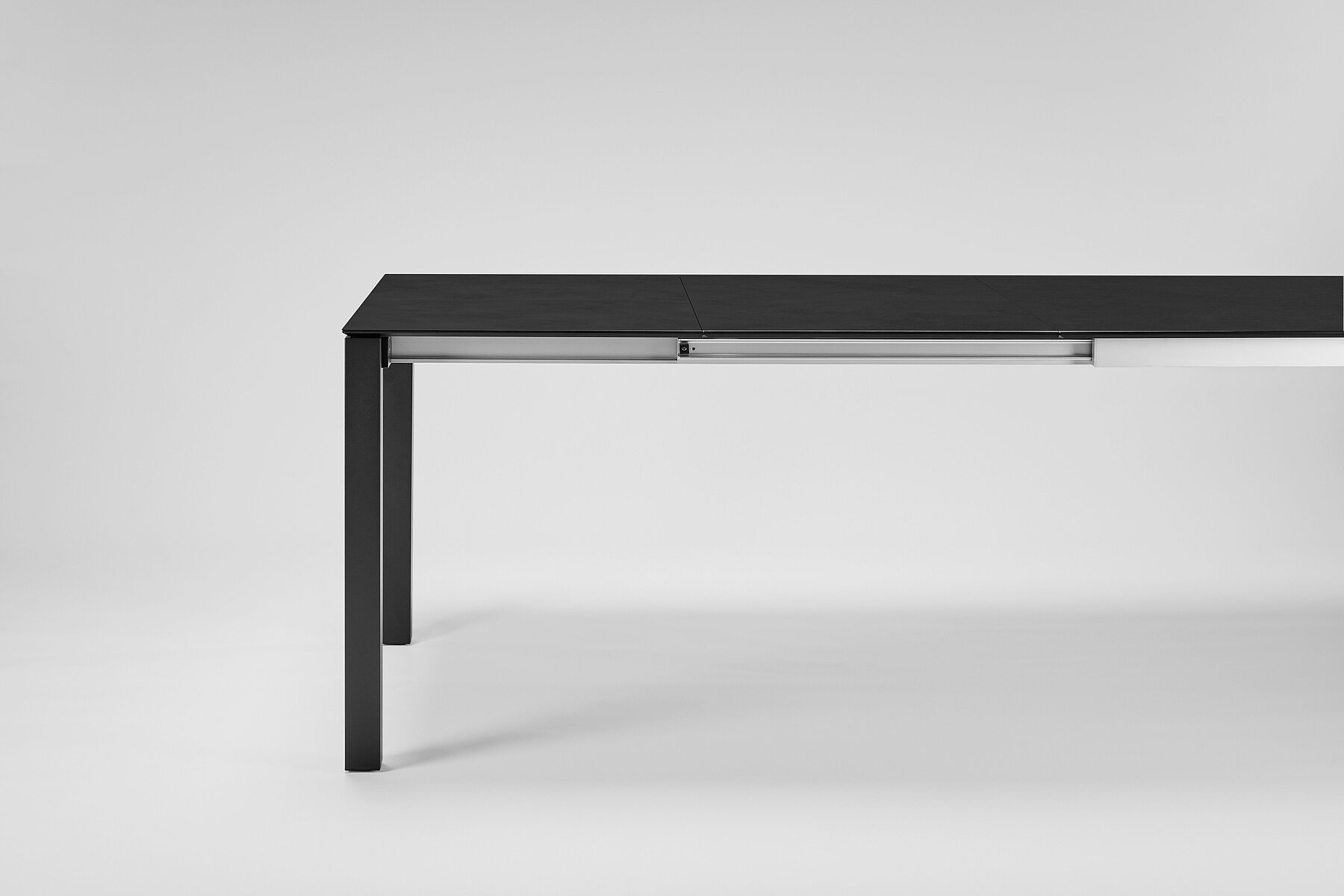

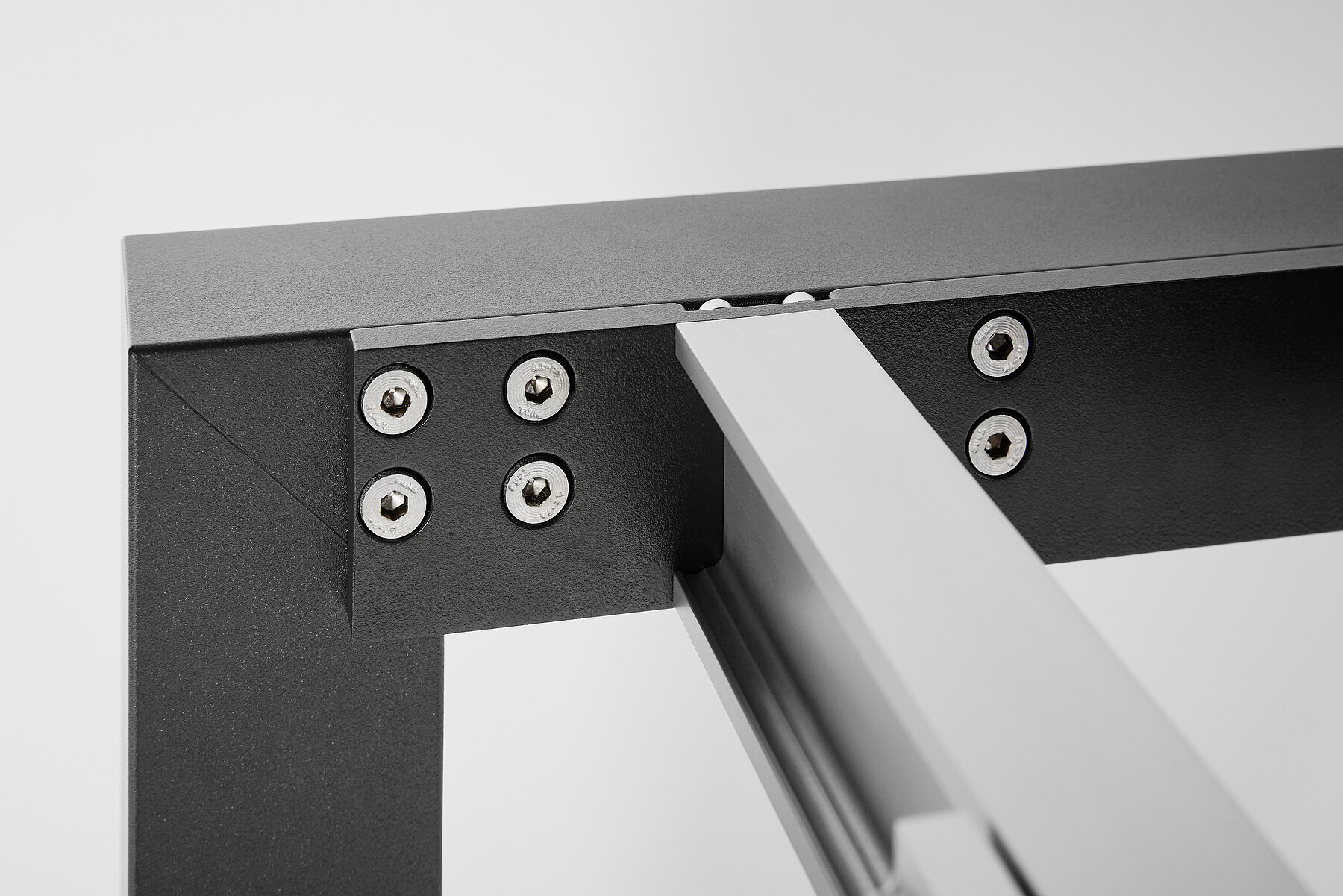

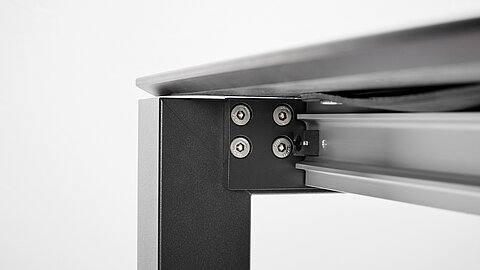

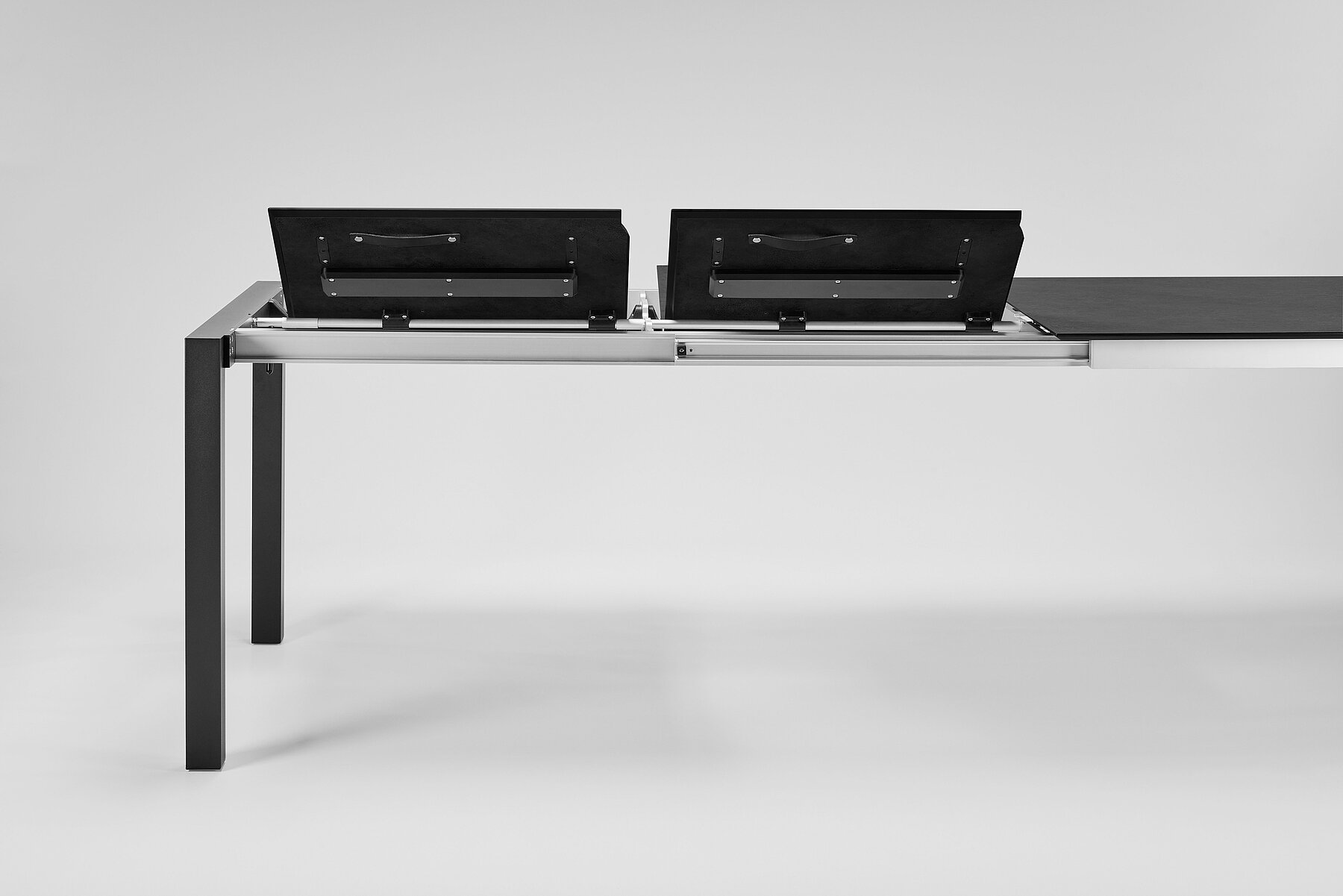

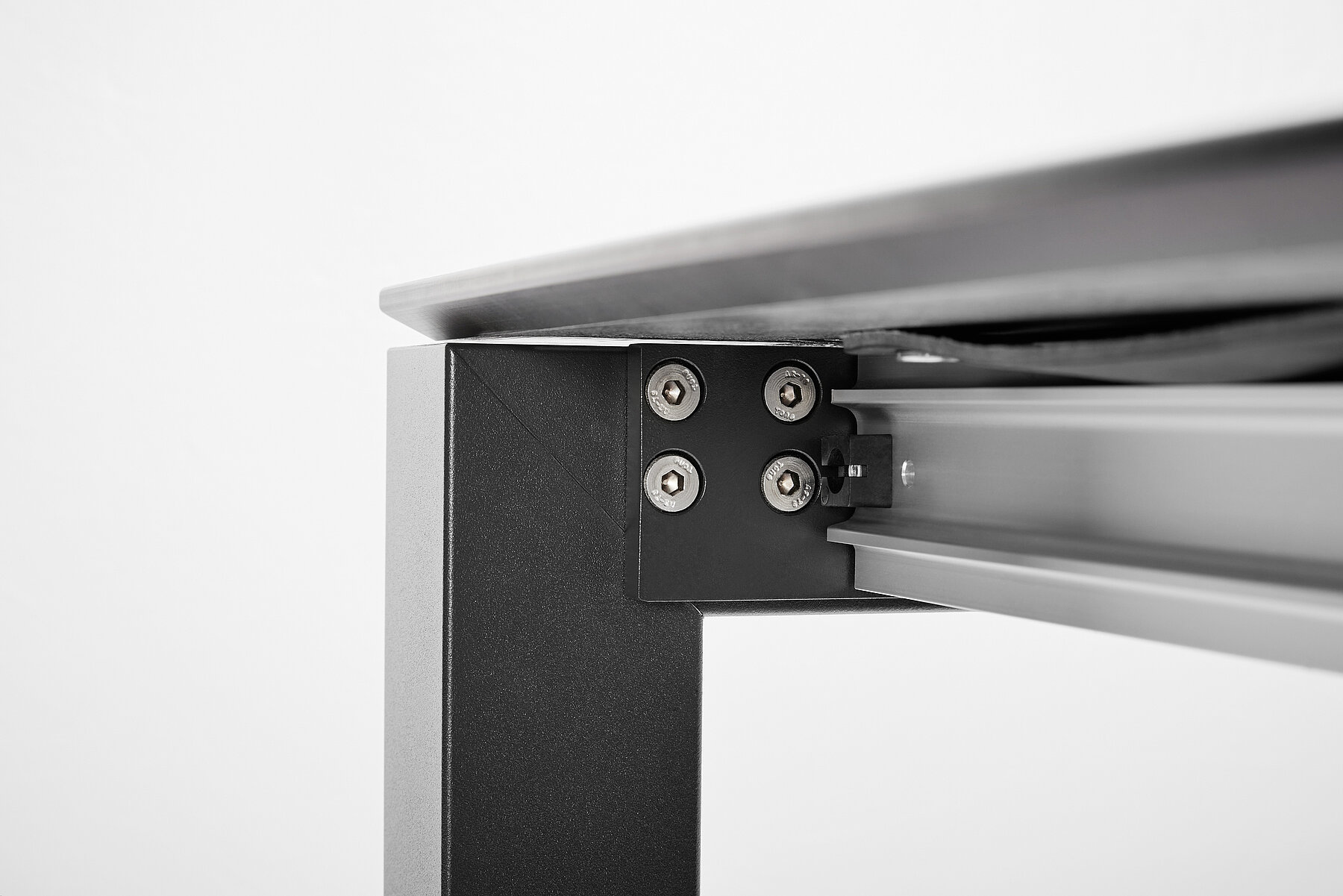

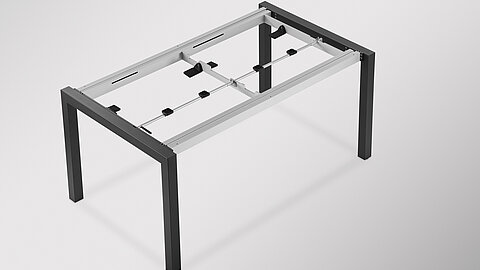

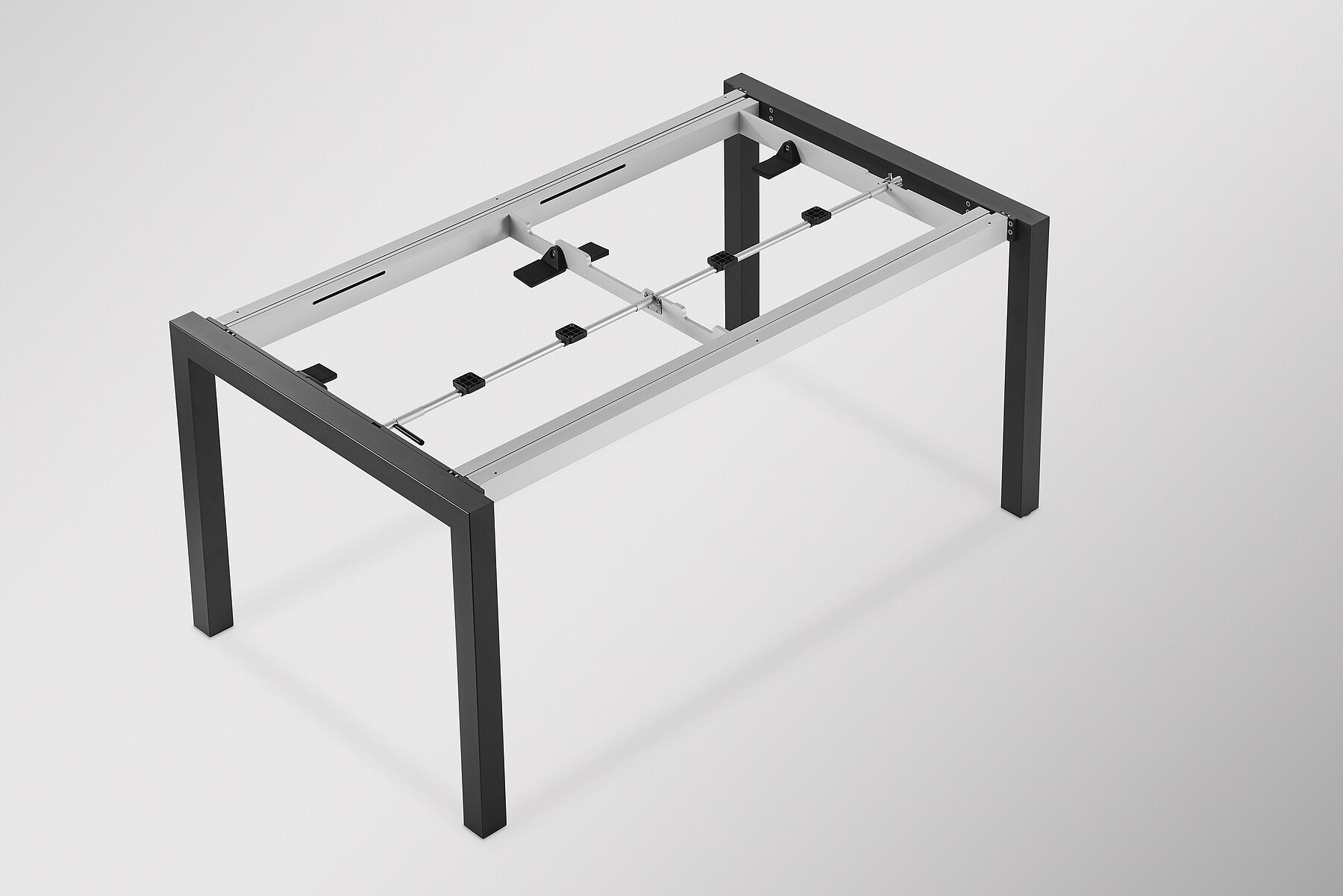

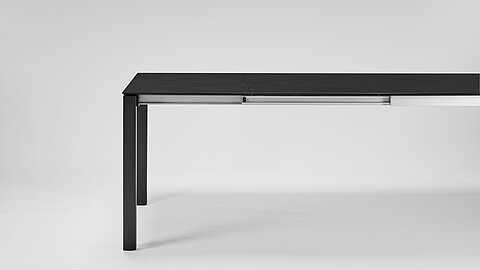

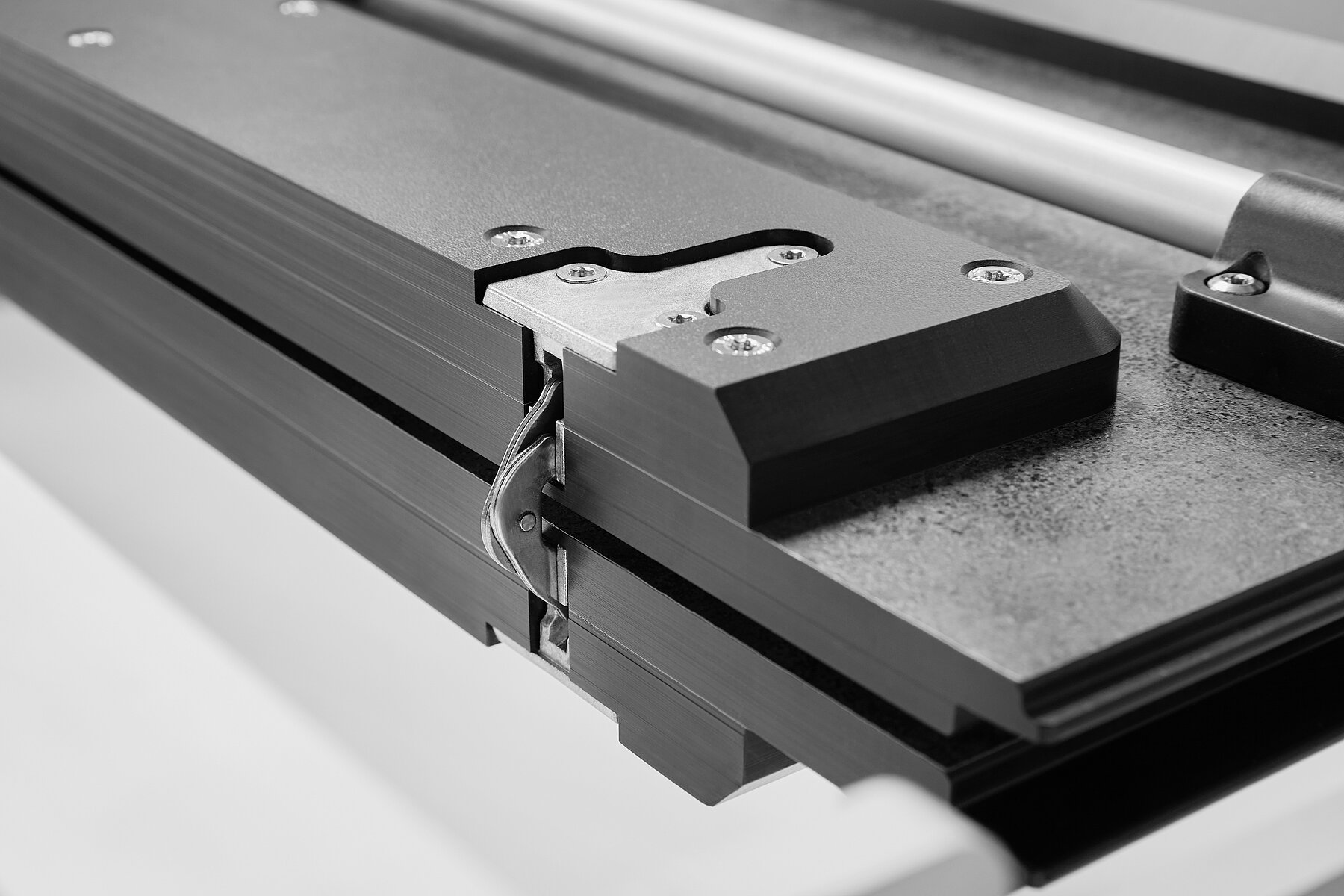

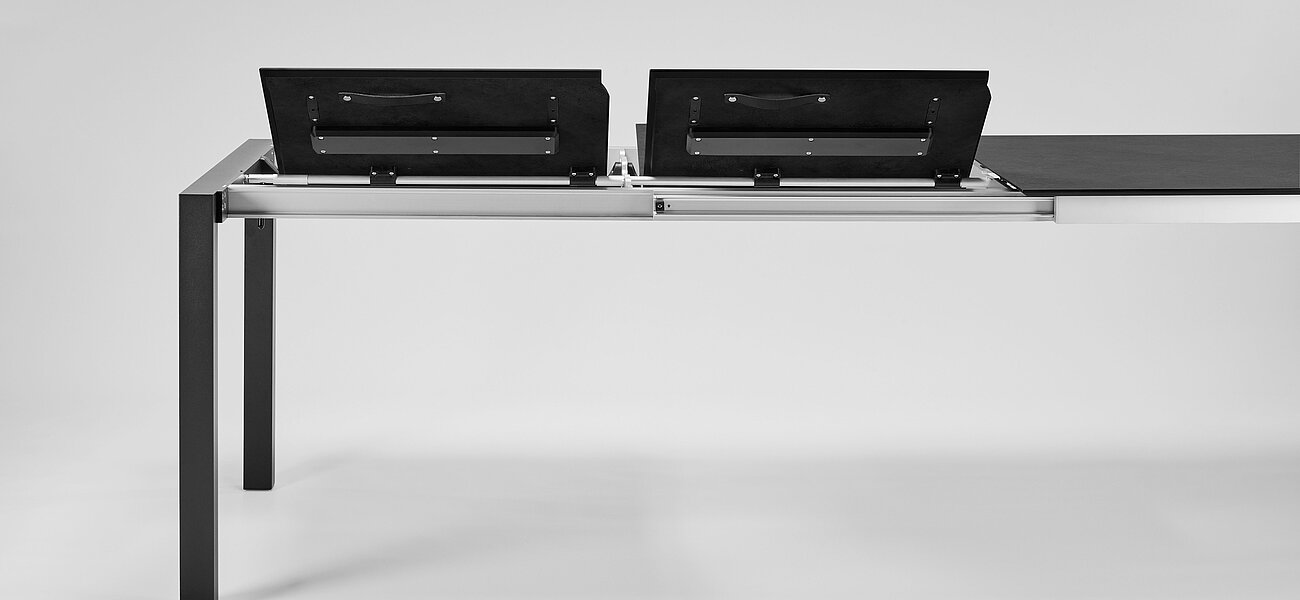

Product images
