ALU FRONTSLIDE UNIVERSAL 44

For tables with low installation height

Benefits

Material

Aluminum – available mill-finished or in various anodized colors.

Large spans

The ALU 44 UNIVERSAL slide system has been designed for large spans, offers a flat and attractive installation and can be pre-loaded up to 4,000 mm, without sagging, for tables without function. An integrated stainless steel expansion shaft prevents sagging and permits particular stability. The low installation height permits a particularly attractive table design with high load requirements.

Load capacities

The ALU FRONTSLIDE UNIVERSAL 44 standard slides are designed for 115 kg under a uniformly applied load and an installation height of only about 47 mm.

Slide

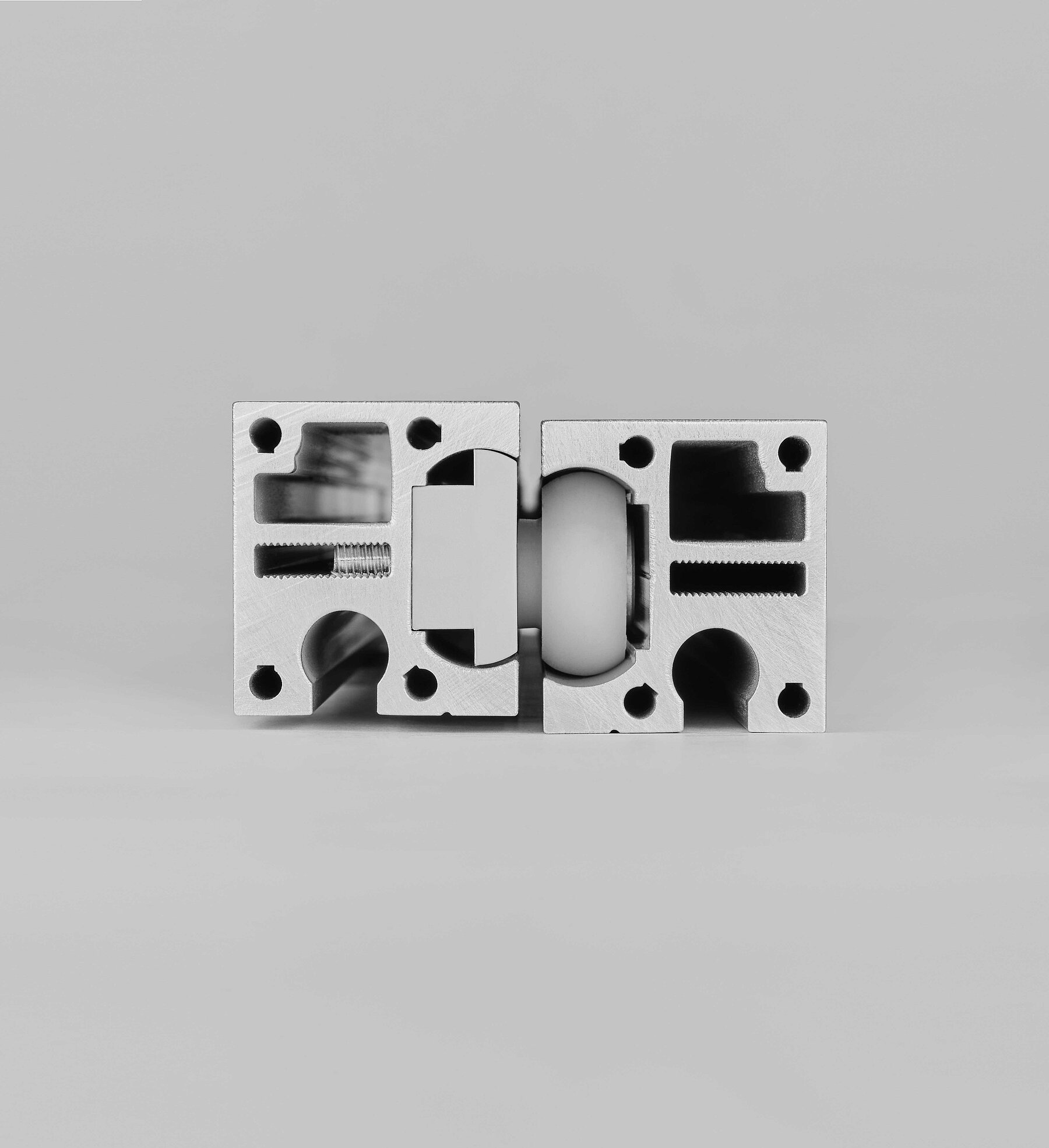

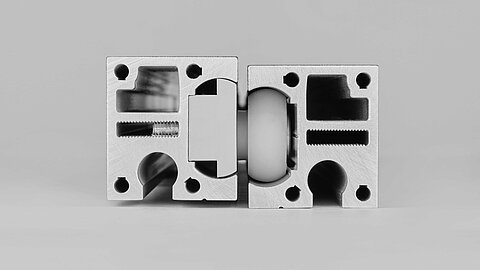

The ALU 55 UNIVERSAL LIGHT slide system is equipped with high-quality, ball-bearing rollers for particularly smooth, consistent and easy running. It offers you state-of-the-art technology and is particularly abrasion-resistant and impact-resistant. Upon request as a single or telescopic pull-out system.

Outdoor

Outdoor compatible

Brake & Accessories

Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the Screw brake, the FM/ FM Stop folding mechanism or, for wooden frames, the FFM flat folding mechanism. The ALU 44 UNIVERSAL slide system is suitable for all table leaf materials and can be combined with all attachment parts.

Technical details

Type1Length2Way of travelInstallation heightInstallation widthLoad capacity
44 Installation height
 xyz
A4UF/1200.A5U1.200 mm800 mmca. 47 mm85 mm115 kg
A4UF/1400.A5U1.400 mm940 mmca. 47 mm85 mm115 kg
A4UF/1600.A5U1.600 mm1.060 mmca. 47 mm85 mm115 kg
A4UF/1800.A5U1.800 mm1.210 mmca. 47 mm85 mm115 kg
A4UF/2000.A5U2.000 mm1.210 mmca. 47 mm85 mm115 kg

1) A4UF = Alu 44 Universal Frontslide | A4UF-B = Alu 44 Universal Frontslide with brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

Alu 44

Installation height 44 | Extension lengths

Alu 44 Teleskop

44 Teleskop | Extension lengths

Steel shaft

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen
Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen
Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

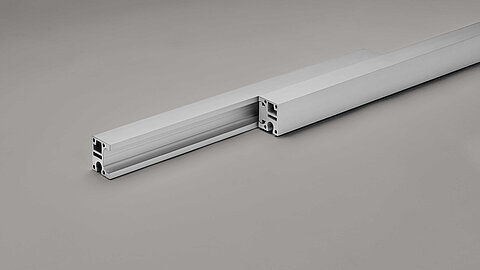

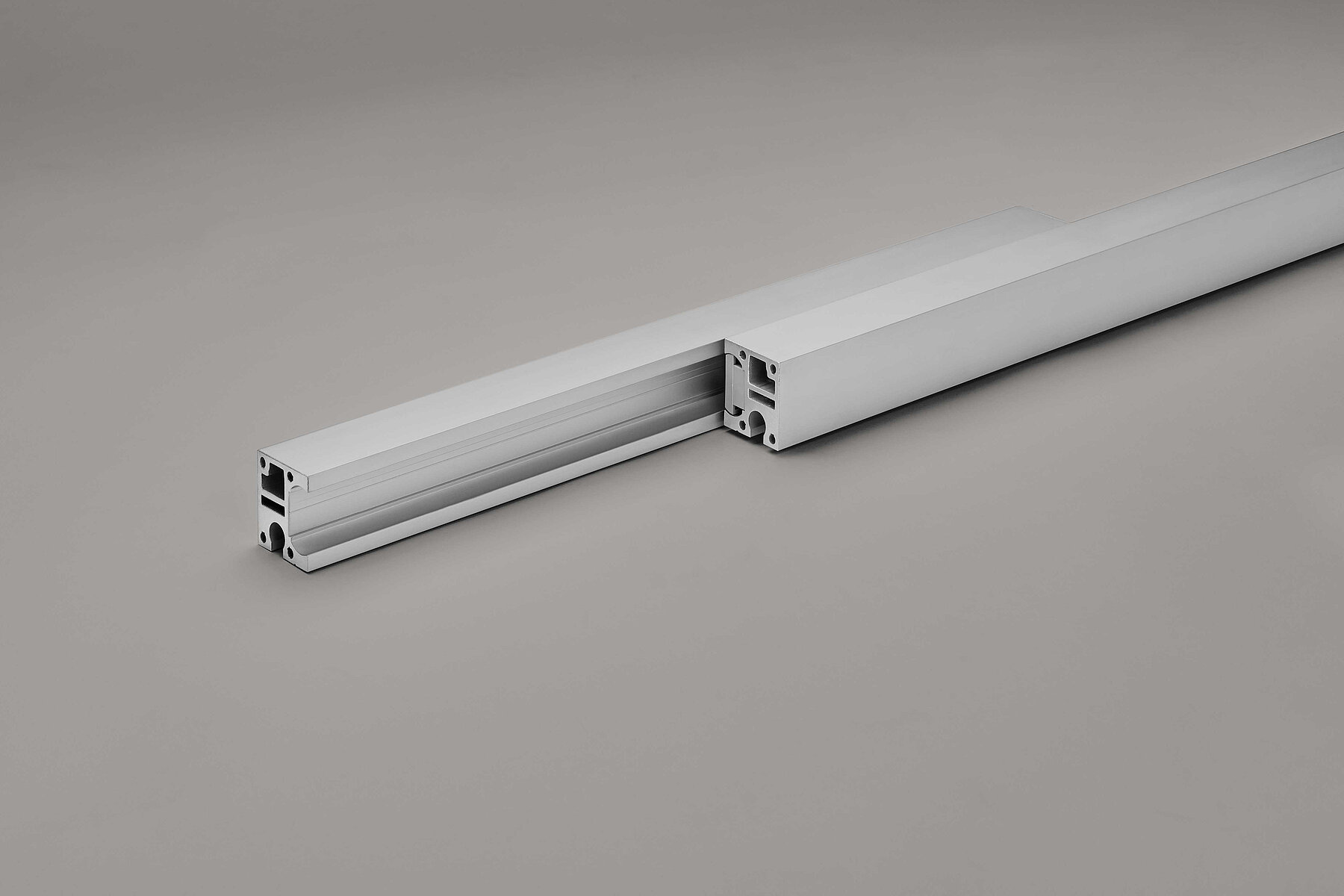

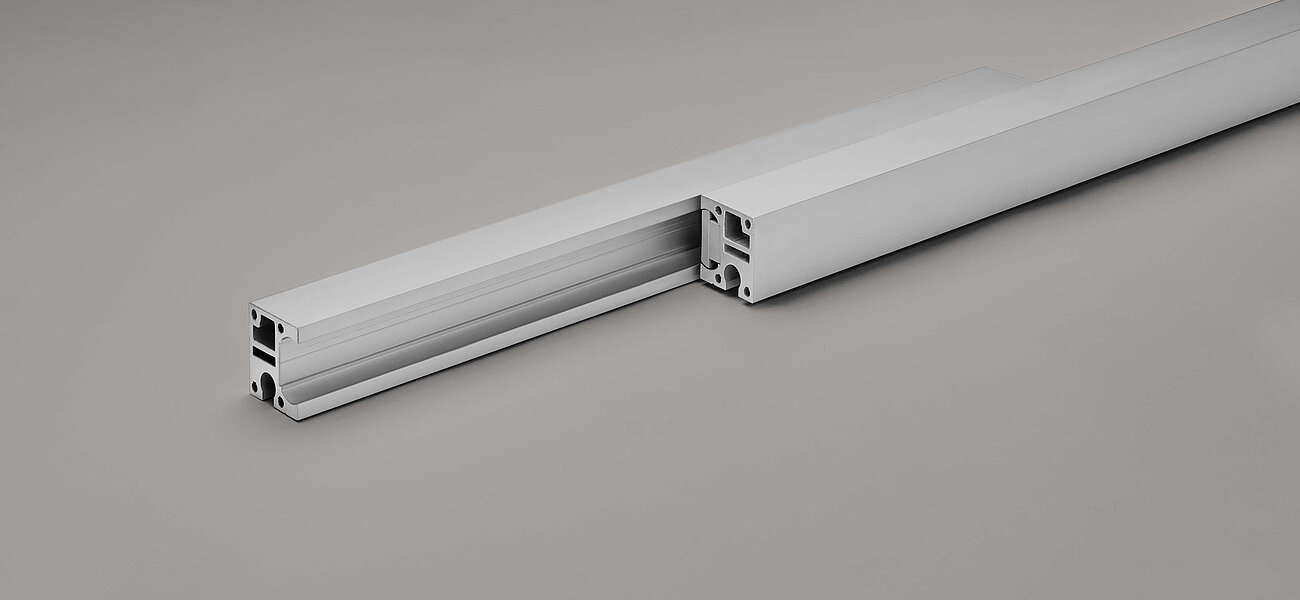

Product images
