Alu Glide 55

For compact central foot tables

Benefits

Material

Aluminum – the slide system is available as a raw or anodized version. Precise profile geometries optimize the handling and ensure a high level of safety.



Load Capacities

The ALU GLIDE 55 standard slides are dimensioned for up to 90 kg under a uniformly applied load. Loads are efficiently absorbed through the use of one direction of motion per movement direction. All specifications are always dependent on the material thickness and the tensile and flexural strength.



Slide

Thanks to the innovative angled design, the slide system allows the height to be planned to the centimeter.



Synchronous Design

The ALU 55 LIGHT slide system is available in a synchronous design, a synchronous design with rope brake, synchronous design with Comfort brake or without any additions.



Accessories

Round off your product with matching movement and convenience accessories: It can be combined with matching accessories such as the FM Folding mechanism or, for wooden frames, with the FFM flat folding mechanism.
Please contact us.



Technical details

Type1Length2Table insertsInstallation heightLoad capacity
55 Installation height
 xyz
AG55/460.AG460 mm1 x 500 mm56 mm90 kg
AG55/720.AG720 mm2 x 500 mm56 mm90 kg
AG55/980.AG980 mm3 x 500 mm56 mm90 kg
AG55/1200.AG1.200 mm4 x 500 mm56 mm90 kg



1) AG55 = Kombi | AG55-S = Synchron | AG55-SCB = synchronous with Comfort brake
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

The connection to the substructure is made via threaded holes in the center profile.

[Translate to English:] Auszugslängen

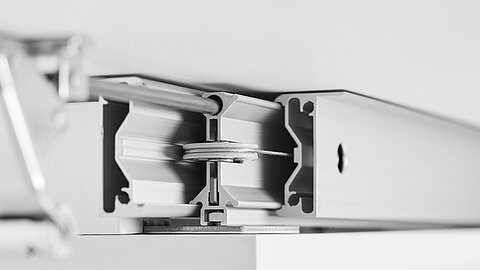

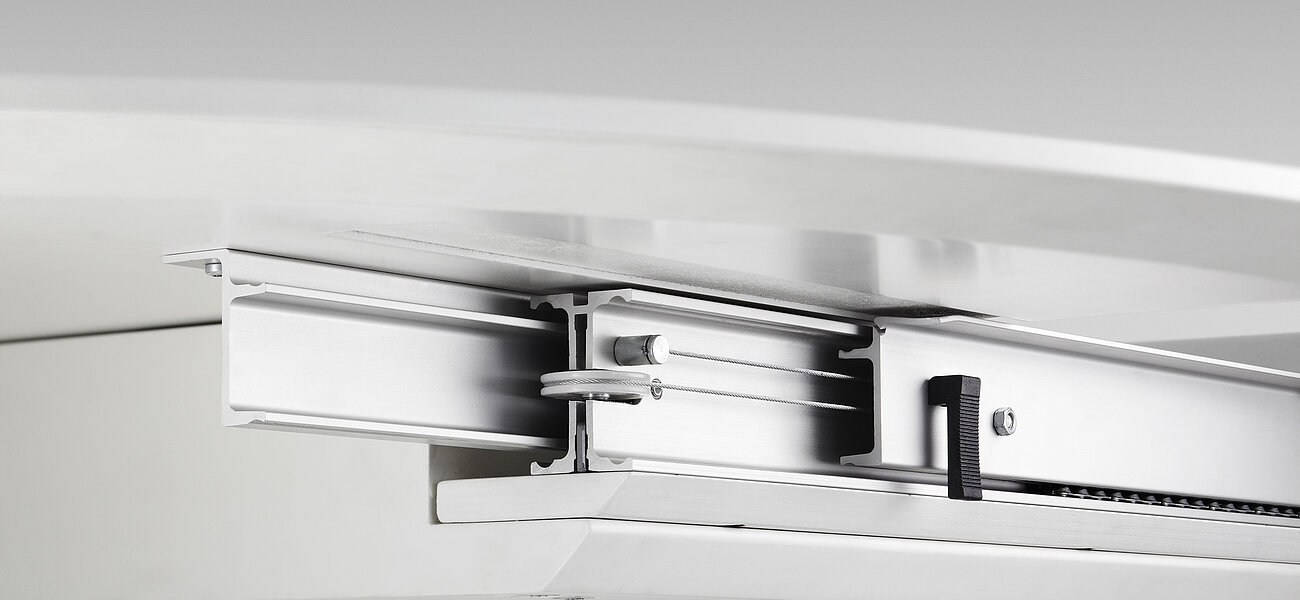

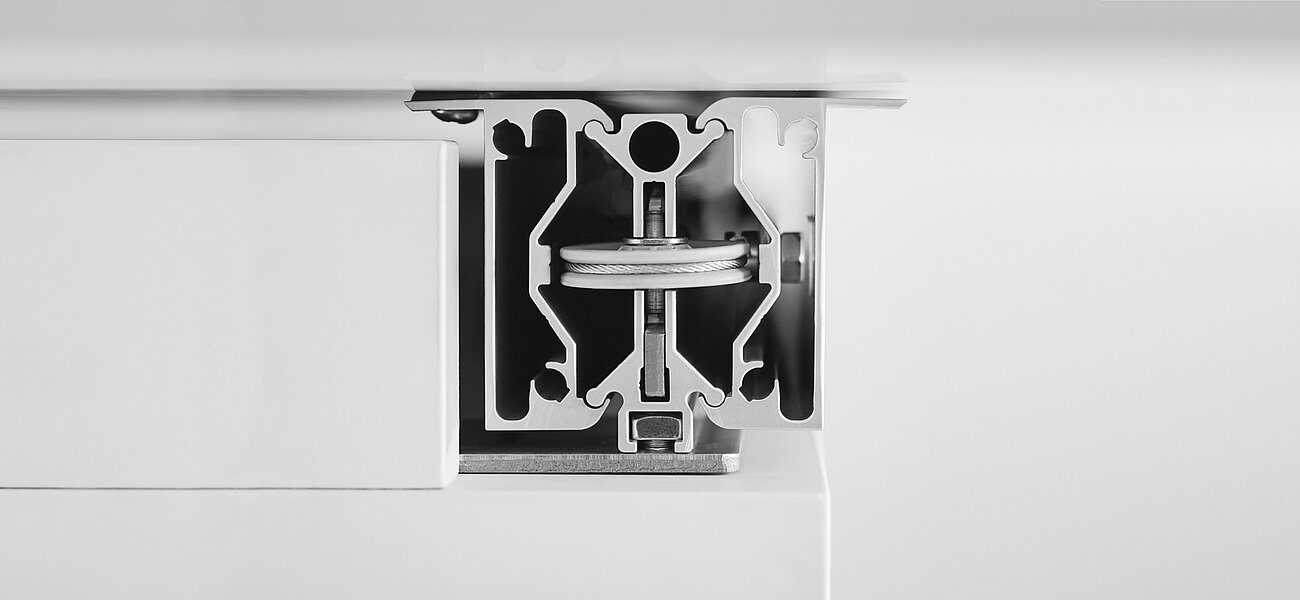

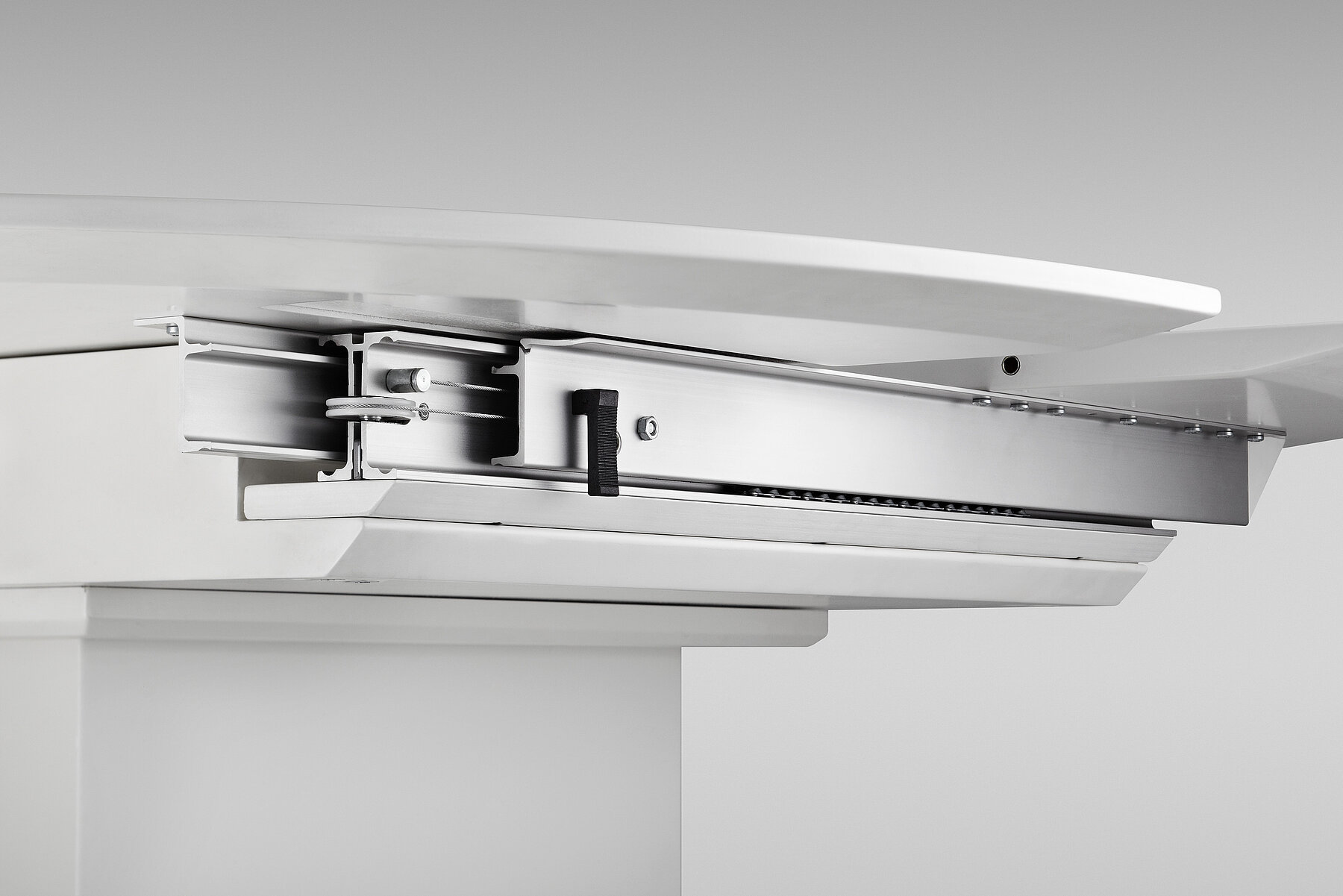

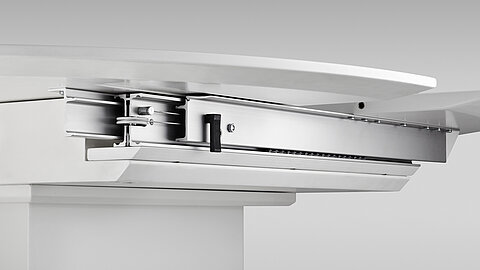

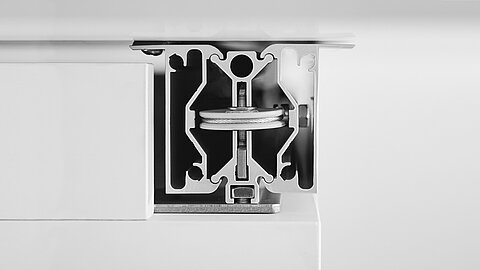

Product images
