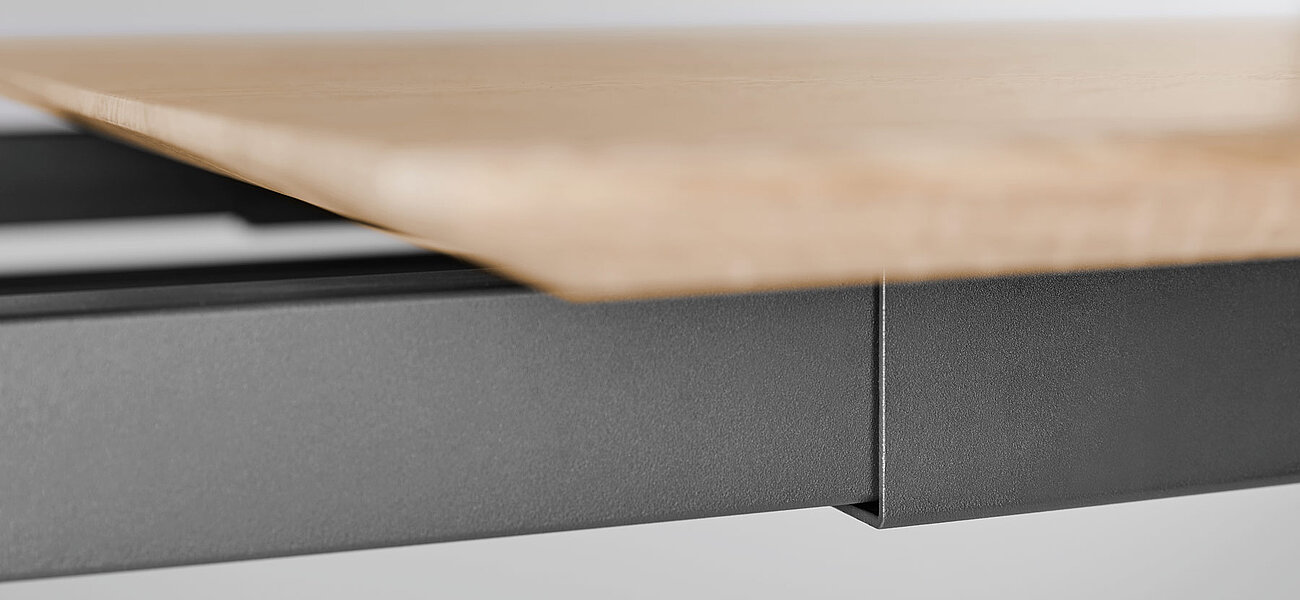

Alu Frontslide Tubular 55
This front pull-out meets the highest aesthetic demands
Benefits
Attractive table design

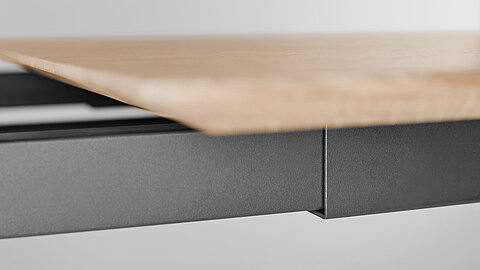

This front extension meets the highest aesthetic demands. Whether closed or open - the technology is (almost) invisible! Thanks to the internal groove strip, applications for various additional applications can be attached (folding mechanism, etc.). The modular structure with crossbars is also available for use as a frame with interfaces for front-end legs or central leg substructures. Powder-coated or anodized, this pull-out can be combined with all panel materials.
Profile and stability design
Develop your frame and rack solution
Outdoor
Outdoor compatible
Material
Aluminium - anodized or powder-coated - available in various colors. The precise profile geometry optimizes handling and a high level of safety.
Load capacities
The Alu Frontslide Tubular 55 standard extensions are designed for 90 kg with a uniform load. All specifications are always dependent on the material thickness as well as the tensile and bending strength.
Folding inserts
Folding inserts
1 x 500 mm / 2 x 500 mm / 1 x 1000 mm
Recommended table length
Recommended table length X 1600 - 2200 mm (closed)
Installation height
ca. 56 mm
Accessories
Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop.
Technical drawings

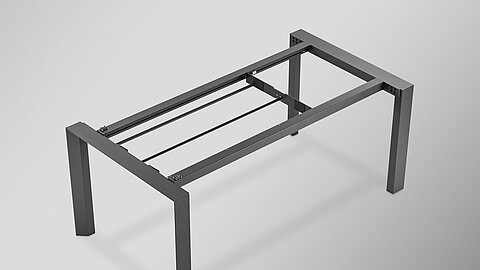

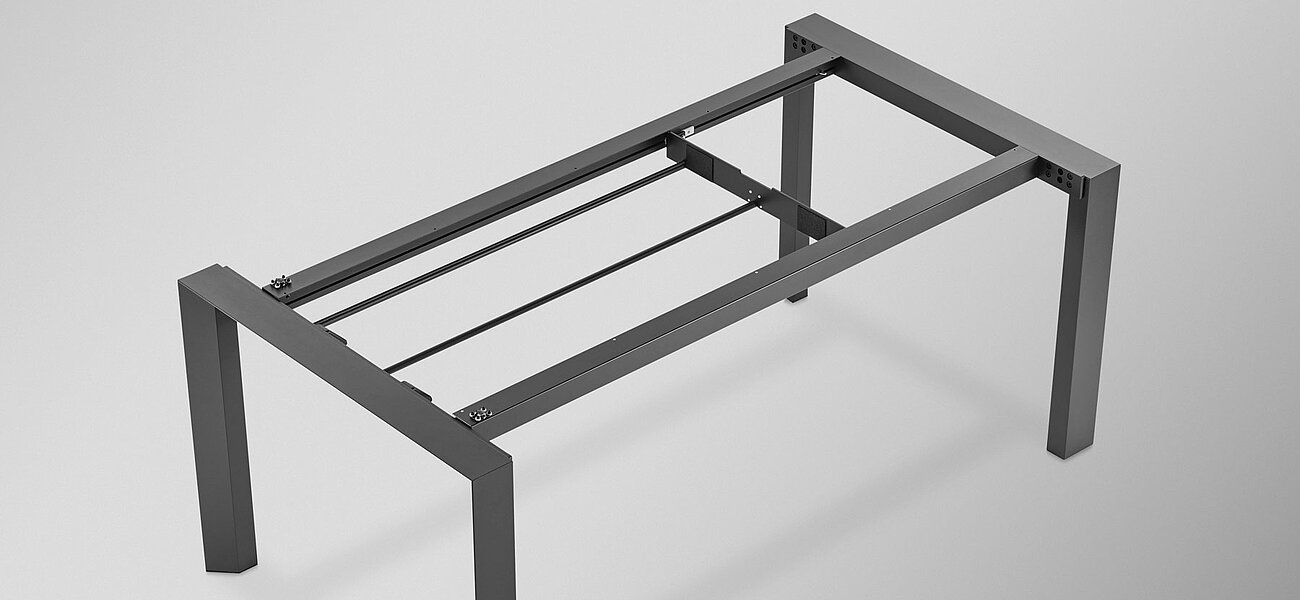

Frame construction | Open

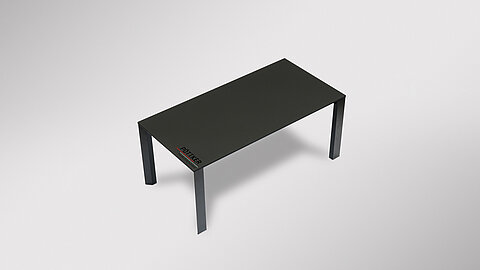

Frame construction | Closed

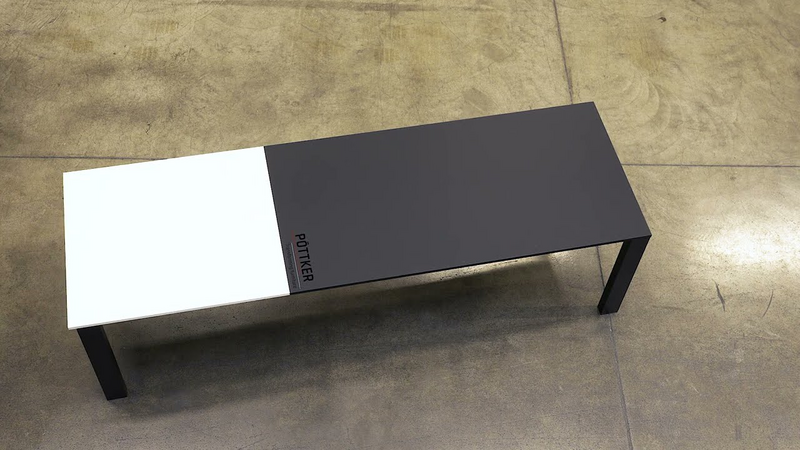

Videos
Einstellungen anpassen
Product images
