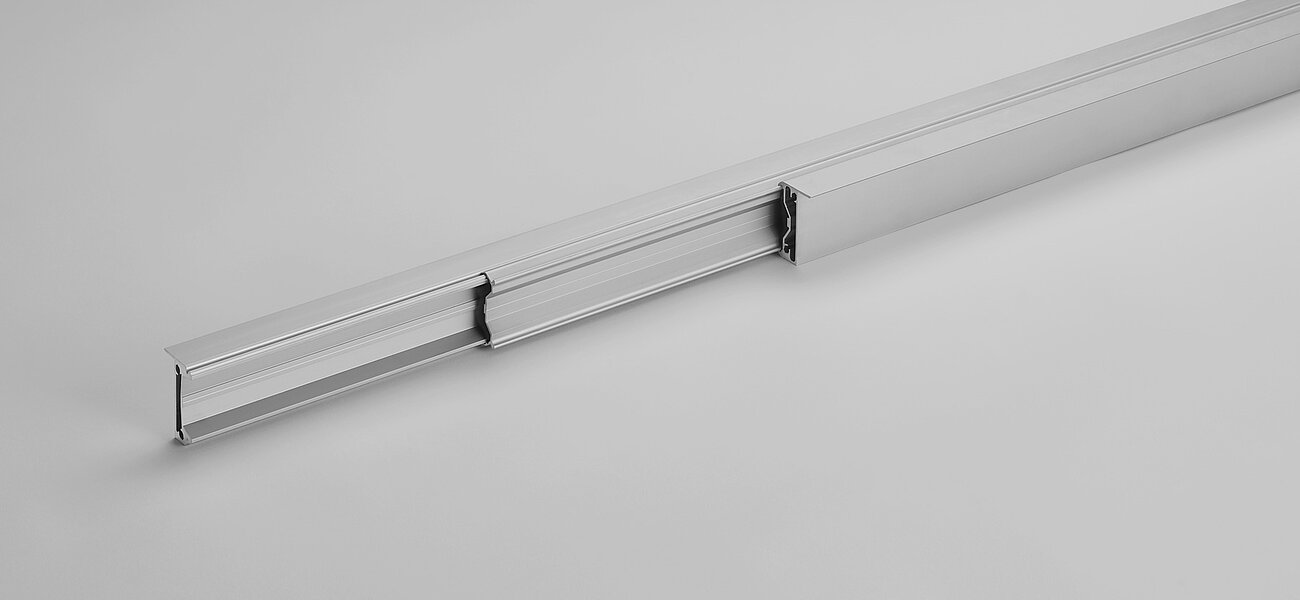

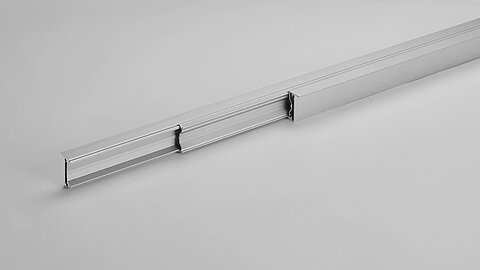

Alu Frontslide Glide 55

Benefits

Aluminium - available press-finished or in various anodized shades.
The precise profile geometry optimizes handling and a high level of safety.

Designed for tables with and without functions. The low installation height enables a particularly attractive table design.

The Alu Frontslide Glide 55 standard slides are designed for 90 kg under a uniformly applied load and an installation height of only about 52 mm.

Outdoor compatible

Round off your product with matching movement and convenience accessories:
Can be combined with matching accessories such as the FM/ FM Stop folding mechanism or, for wooden frames, the FFM flat folding mechanism.

Type¹	Length²	Way of travel	Installation height	Load capacity

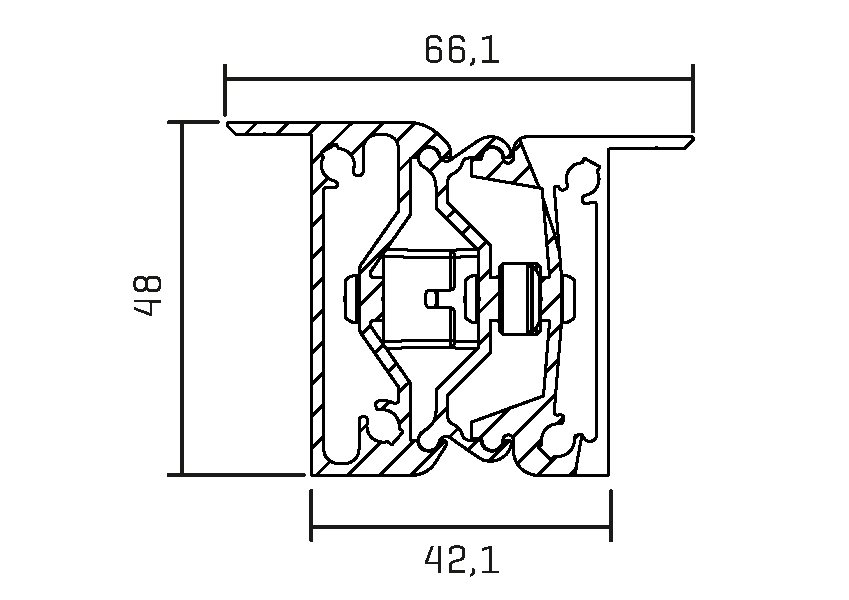

52 Installation height

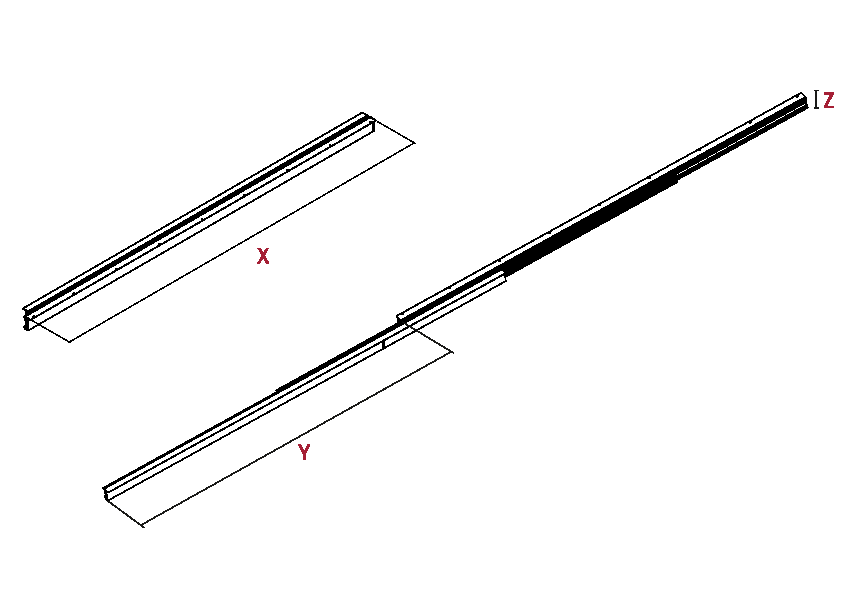

	x	y	z
FG55/940.AG	940 mm	ca. 948 mm	ca. 52 mm	90 kg
FG55/1200.AG	1.200 mm	ca. 1.288 mm	ca. 52 mm	90 kg
FG55/1315.AG	1.315 mm	ca. 1.320 mm	ca. 52 mm	90 kg
FG55/1315.AG	1.400 mm	ca. 1.385 mm	ca. 52 mm	90 kg
FG55/1315.AG	1.600 mm	ca. 1.460 mm	ca. 52 mm	90 kg
FG55/1815.AG	1.815 mm	ca. 1.460 mm	ca. 52 mm	90 kg

1) FG55 = Frontslide Glide
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Installation height
