Alu Classic Glide 55

For tables without frame constructions with telescopic technology

Benefits

Material

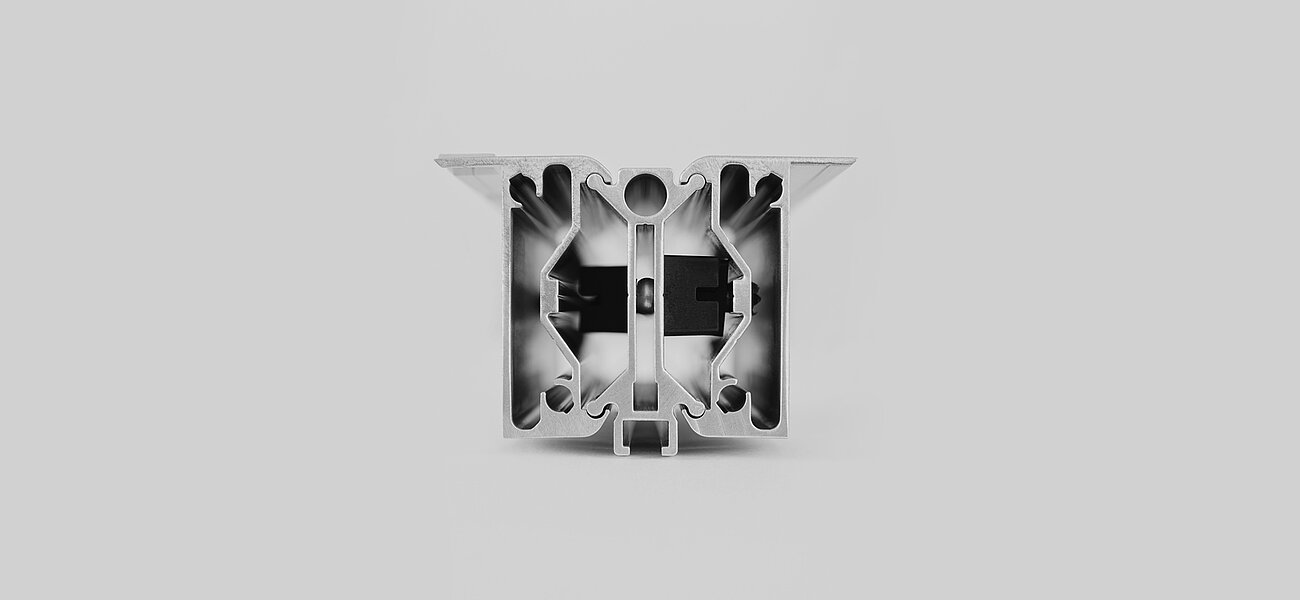

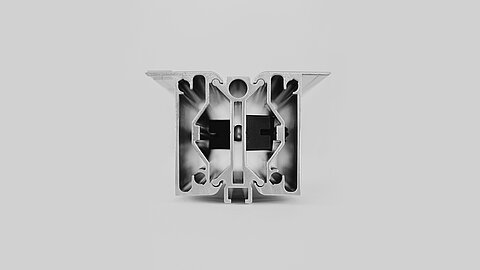

Aluminum – the slide system is available as a  raw or anodized version. Precise profile geometries optimize the handling and ensure a high level of safety.



Load Capacities

The Alu Classic Glide 55 standard pull-outs are designed for 90 kg with a uniform load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Extract

The CLASSIC pull-out system enables a height design that can be planned to the centimeter thanks to the innovative angled design.

Synchronous Design

The ALU CLASSIC GLIDE 55 pull-out system can be ordered as a synchronous version, a synchronous version with cable brake, a synchronous version with comfort brake or without all of these.



Accessories

Round off your product with suitable movement and comfort accessories: Our KOMBI pull-out system can be combined with suitable accessories such as the FM folding mechanism or, for wooden frames, with the FFM flat folding mechanism, for example. Contact us for more information.

Technical details

Type1Length2Table insertsInstallation heightLoad Capacities
55 Installation height
 xyz

CG-T2/660.AG

660 mm2 x 500 mm56 mm90 kg

C-T2/740.4

740 mm2 x 500 mm56 mm90 kg

C-T2/1070.4

1.070 mm2 x 500 mm56 mm90 kg

C-T2/1400.4

1.400 mm2 x 500 mm56 mm90 kg

CG-T3/560.AG

560 mm2 x 500 mm56 mm90 kg

C-T3/740.4

740 mm3 x 500 mm56 mm90 kg

C-T3/1070.4

1.070 mm3 x 500 mm56 mm90 kg

C-T4/650.4

650 mm4 x 500 mm56 mm90 kg



1)

CG = Classic Glide | CG-T1 = 1-way | CG-T2 = 2-way | CG-T3 = 3-way | C-T4 = 4-wayTeleskop
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

Videos

Inhalte von YouTube werden aufgrund Ihrer Cookie-Einstellungen nicht angezeigt.
Einstellungen anpassen

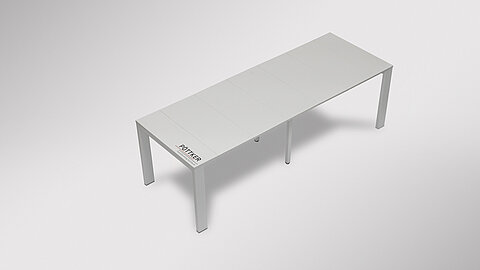

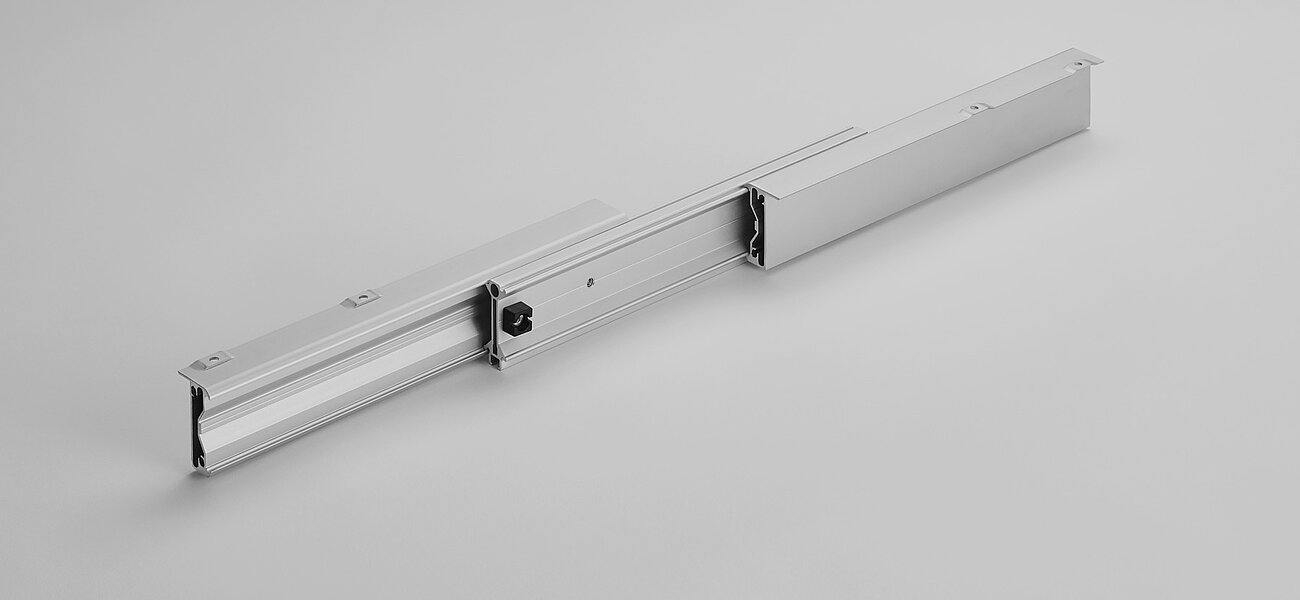

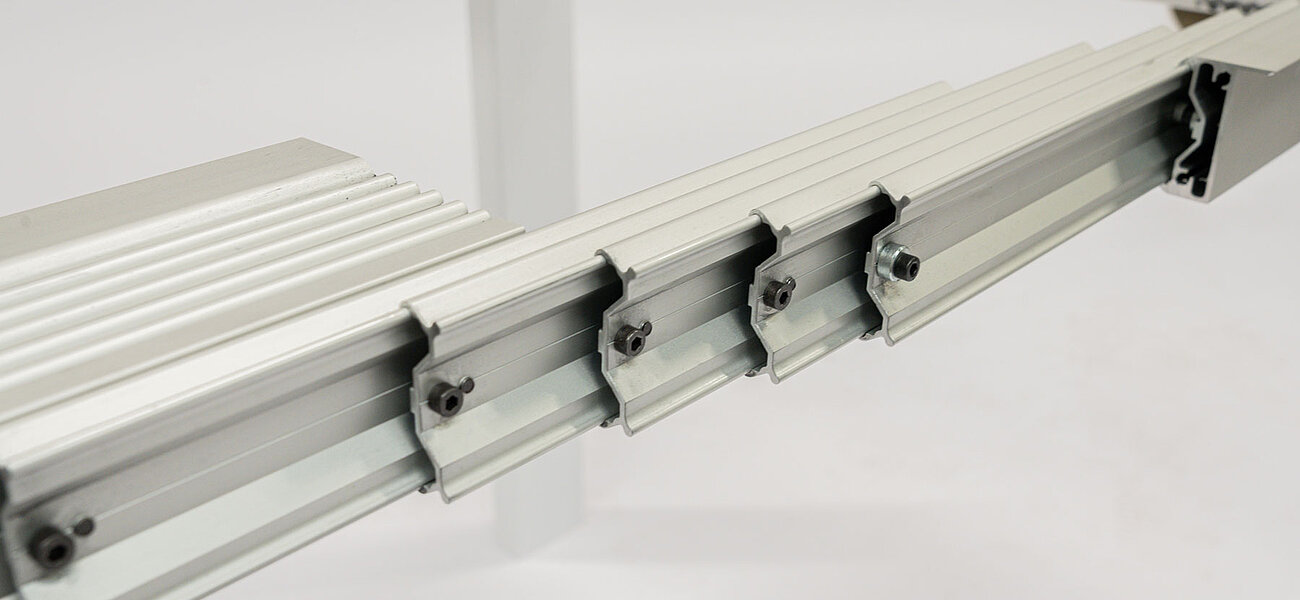

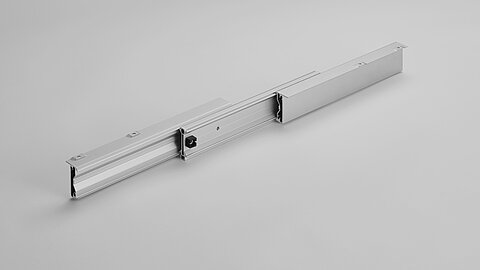

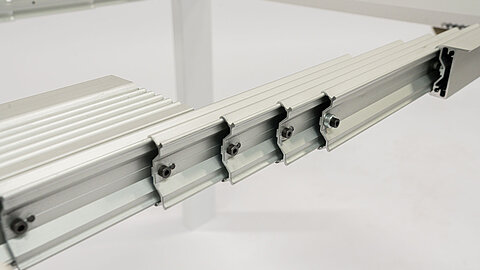

Product images
