ALU FRONTSLIDE COMPACT 77

For solid wooden tables and tables made of wood-based materials

Benefits

Material

Aluminum – the anodized outer profile can be used as a frame and is available in various anodized colors, or in a raw aluminum design. Can be combined with a 77 steel profile upon request. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety.

Load capacities

The ALU FRONTSLIDE COMPACT 77 standard slides are dimensioned for 115 kg under a uniformly applied load. All specifications are always dependent on the material thickness and the tensile and flexural strength.

Telescopic

The ALU 77 FRONTSLIDE slide system can be telescoped multiple times, if requested.

Accessories

Round off your product with matching movement and convenience accessories: Can be combined with matching accessories, such as the FM/FM Stop folding mechanism or, for wooden frames, also with the FFM flat folding mechanism. Please contact us.

Technical details

Type1Length2table insertsInstallation heightLoad capacity
77 Installation height
 xyz
A7F/940.A7940 mm948 mm75 mm115 kg
A7F/1200.A71.200 mm1.288 mm75 mm115 kg
A7F/1315.A71.315 mm1.320 mm75 mm115 kg
A7F/1400.A71.400 mm1.385 mm75 mm115 kg
A7F/1600.A71.600 mm1.460 mm75 mm115 kg
A7F/1815.A71.815 mm1.460 mm75 mm115 kg

1) A7F = Alu 77 Frontslide
2) This overview shows a few examples of our possible dimensions. Please contact us for other dimensions.

Technical drawings

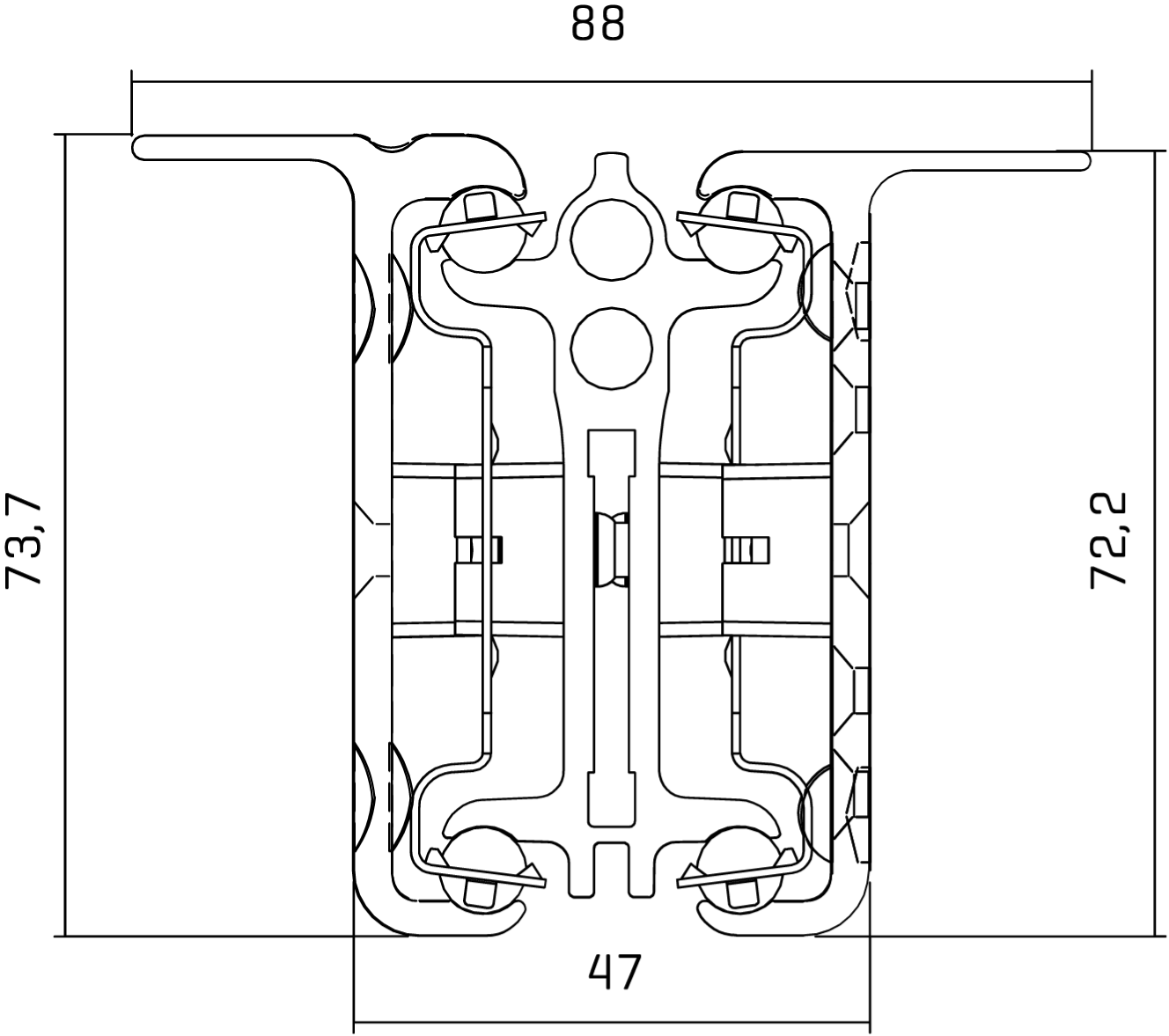

Installation height 77

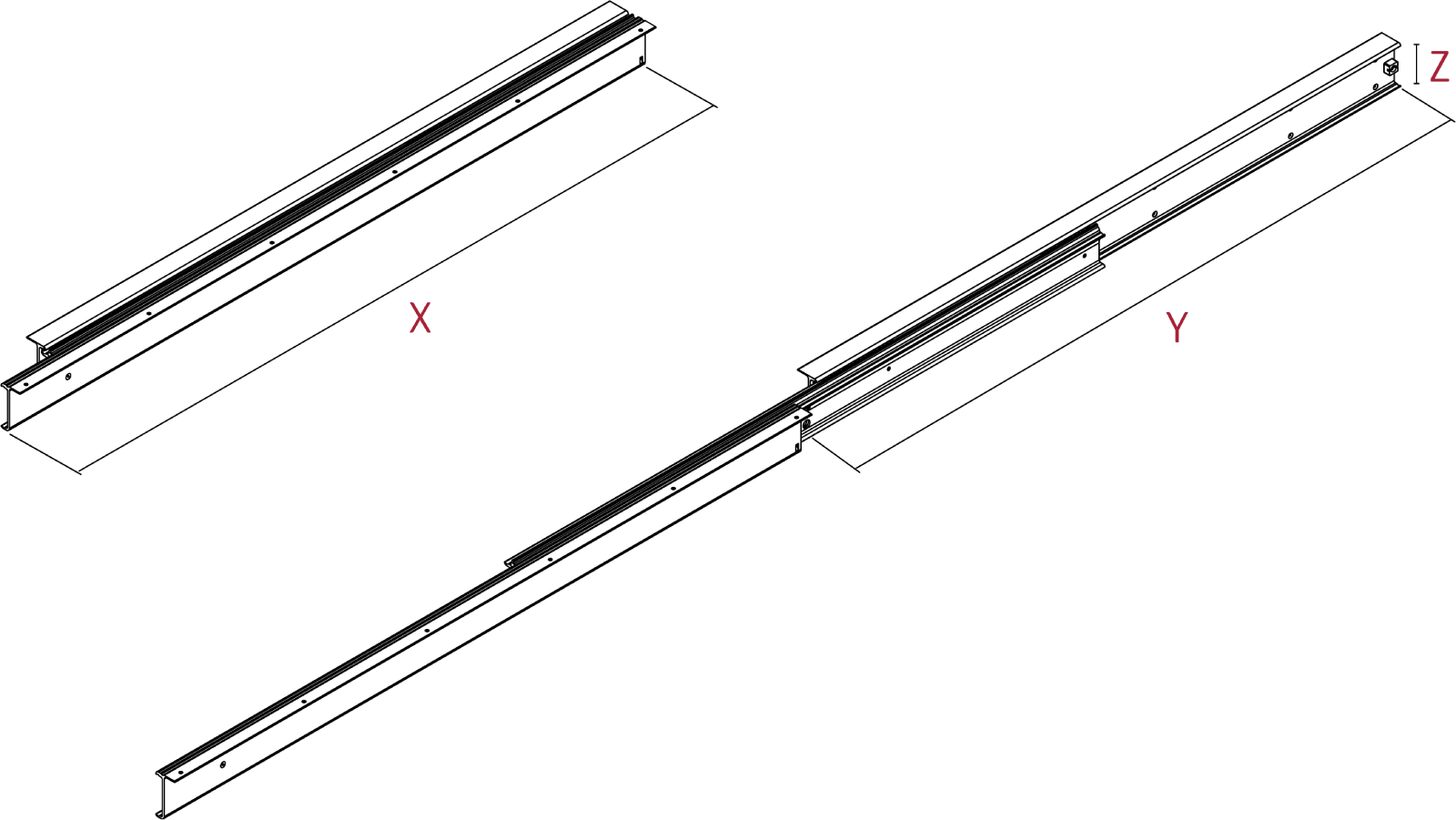

Extension lengths

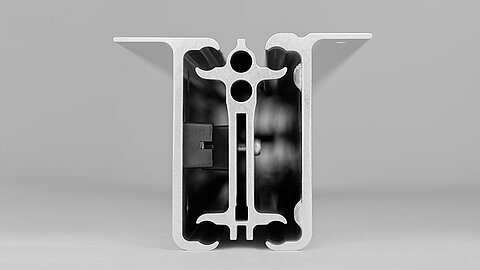

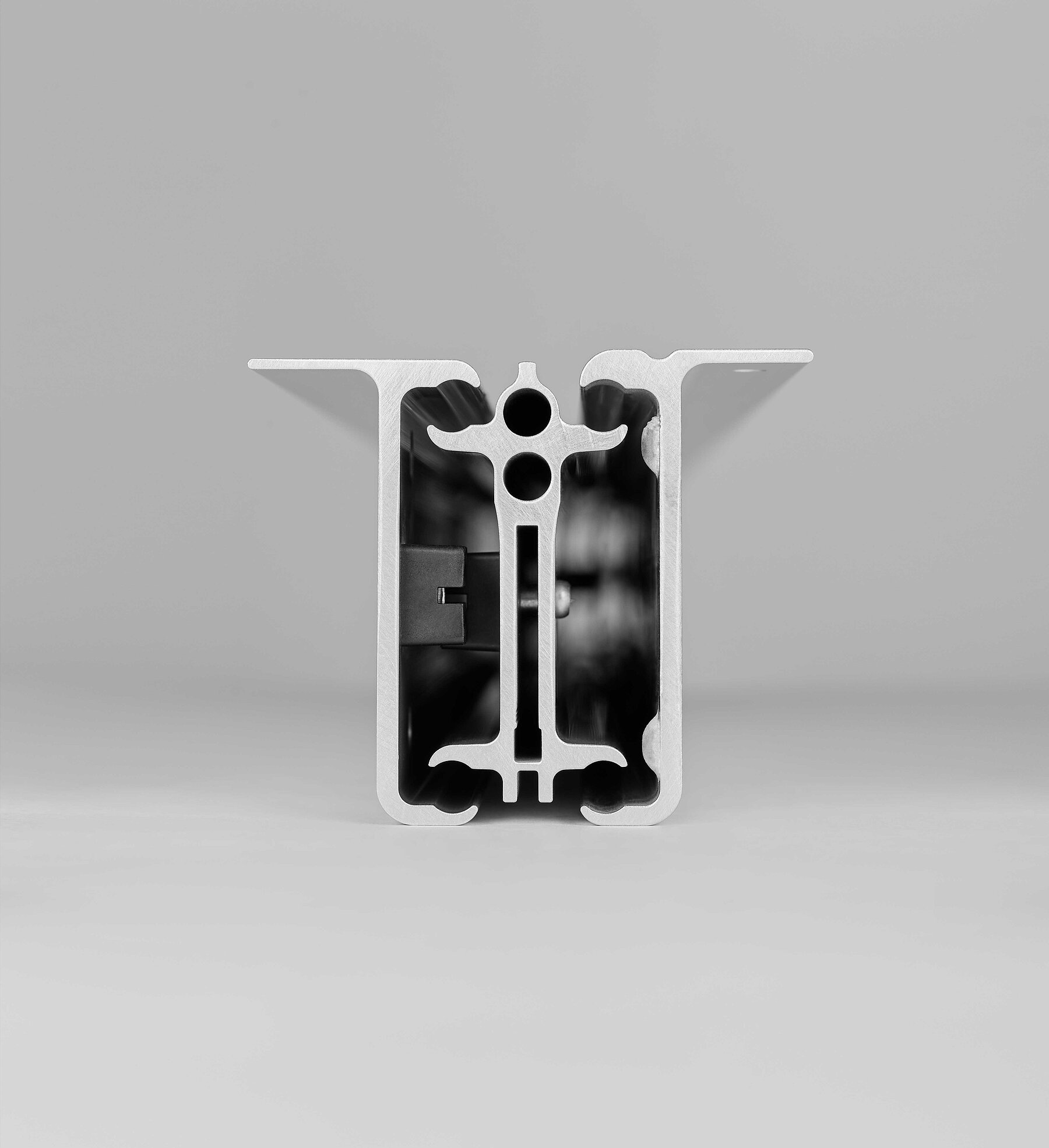

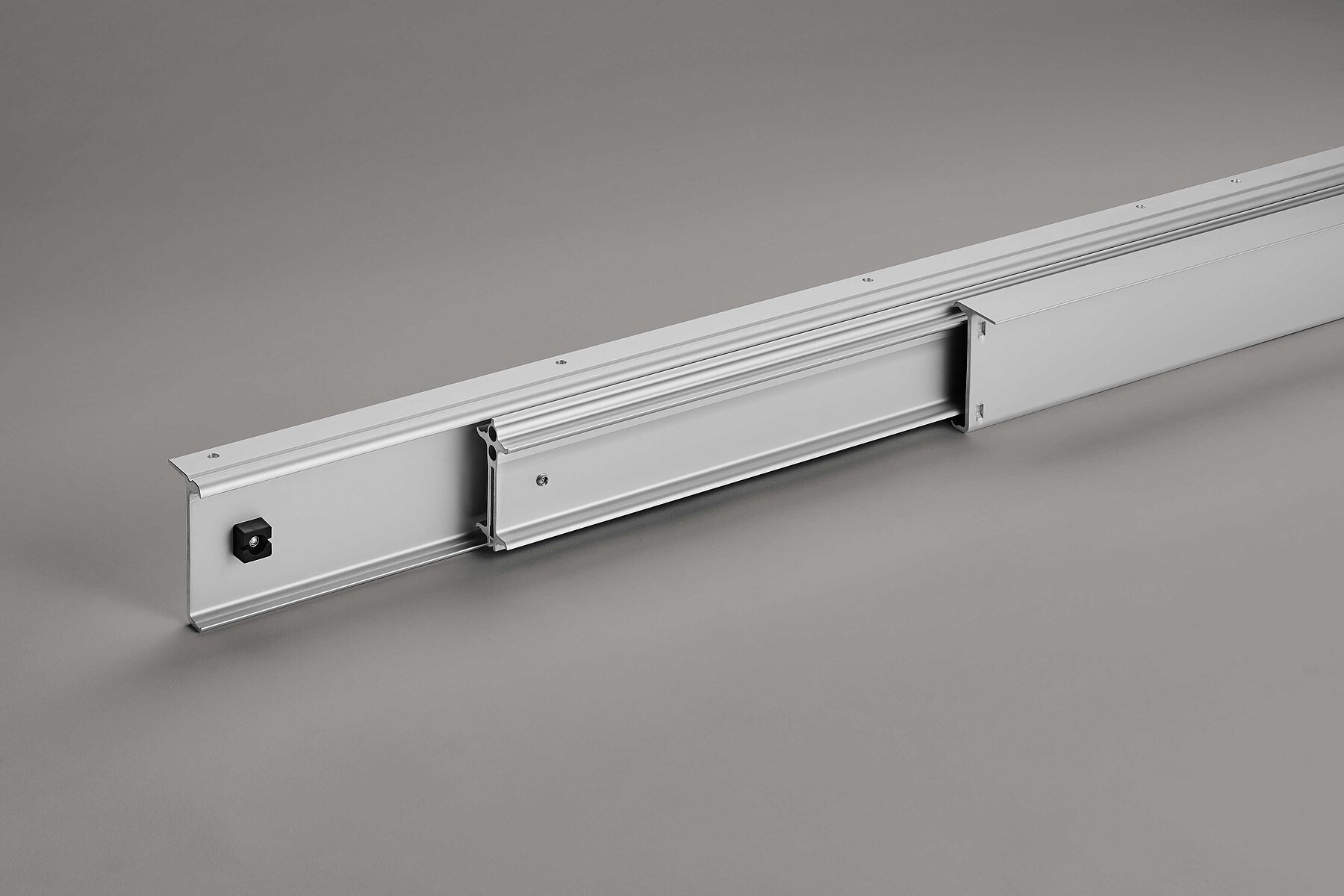

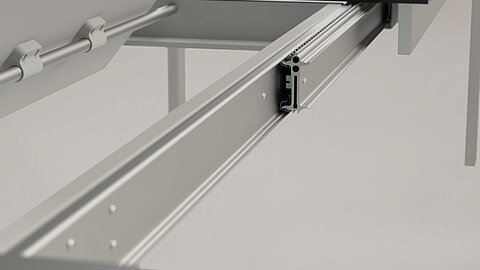

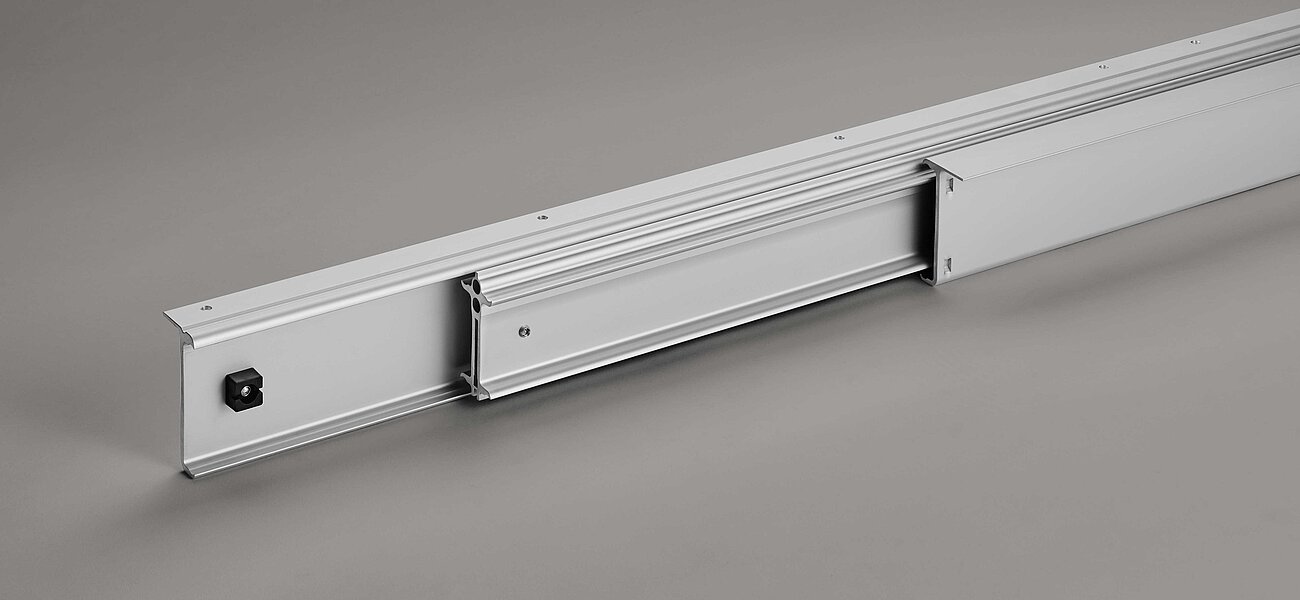

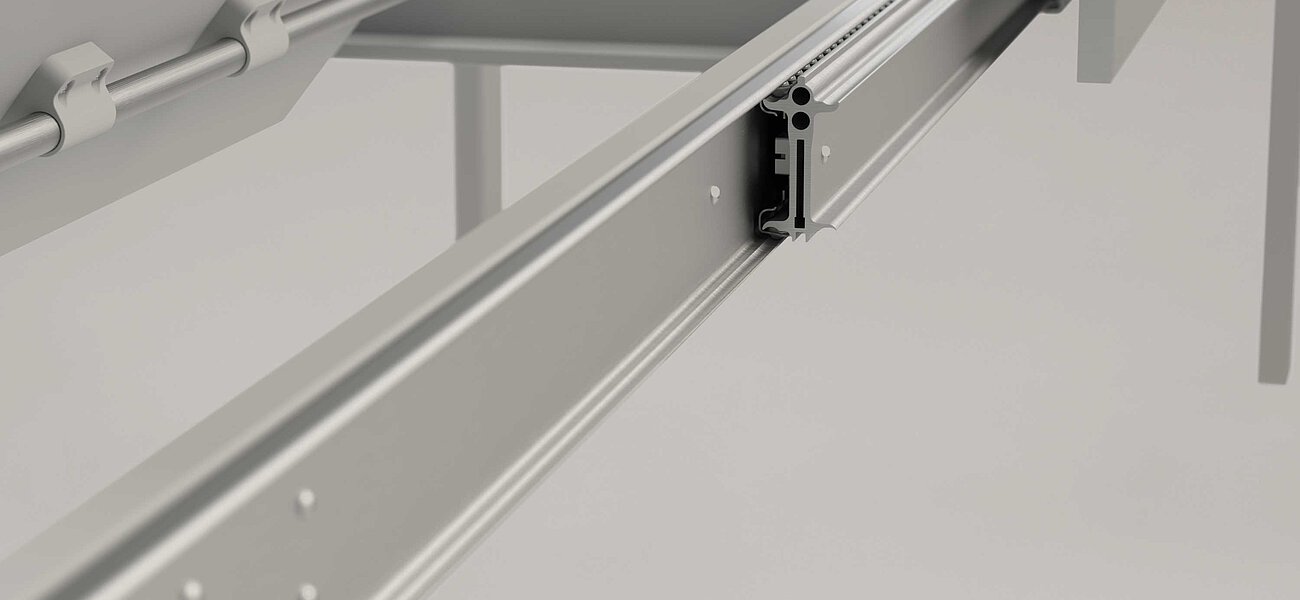

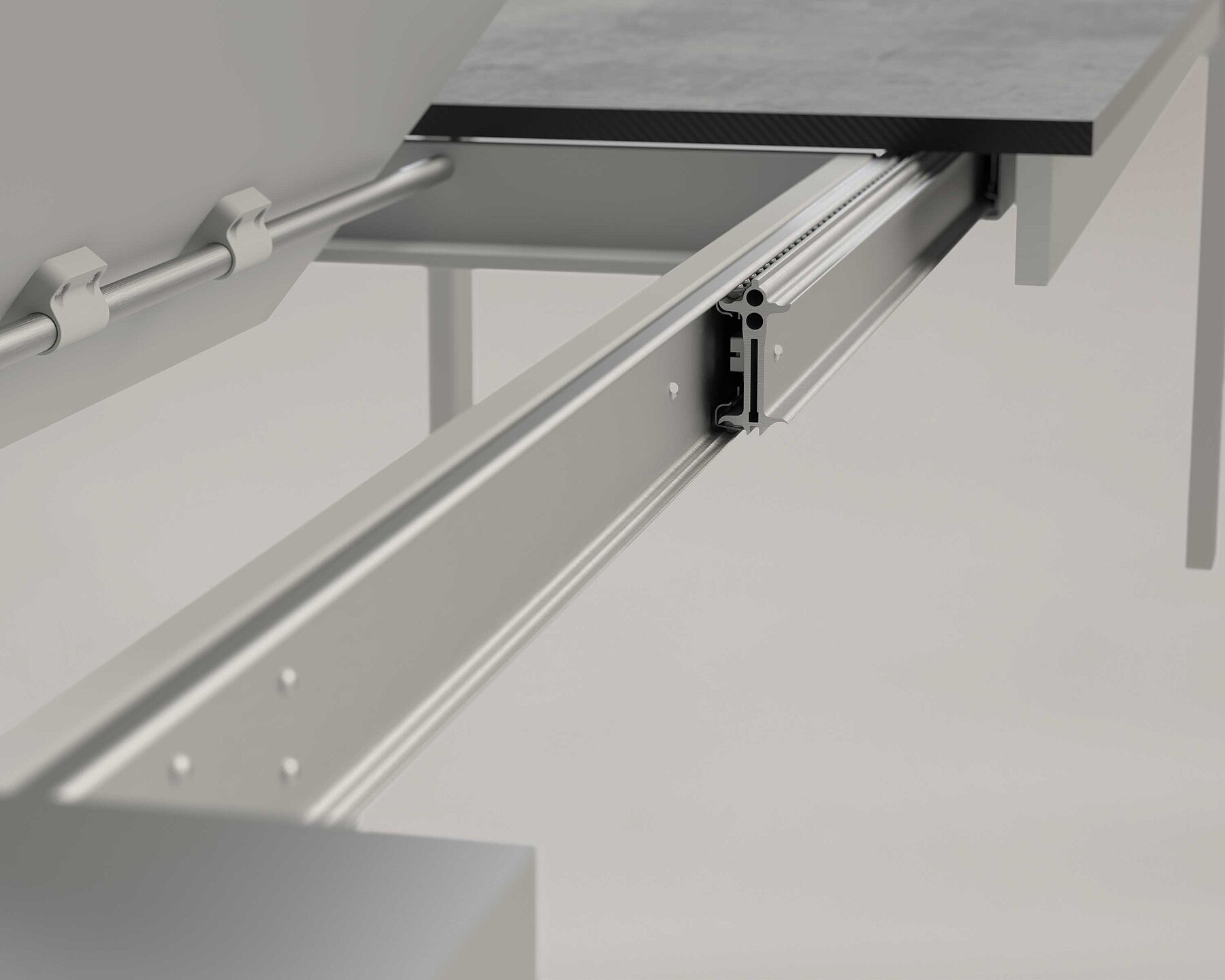

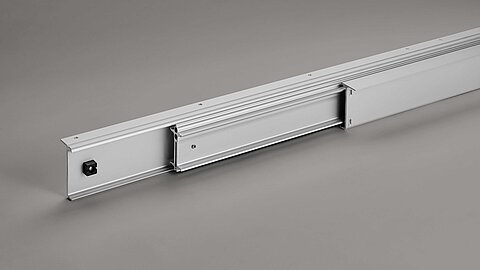

Product images
