ALU SLIDER 55

For tables with slider function

Benefits

Material

Aluminum – All profiles are available mill-finished or in various anodized colors. The rounded cutting edges and the precise profile geometries optimize the handling and provide a high level of safety. Material processing: anodized.

Load capacities

The ALU 55 SLIDER standard slides are designed for 90 kg under a uniformly applied load. All specifications always depend on the material thickness and the tensile and flexural strength.

Flexible

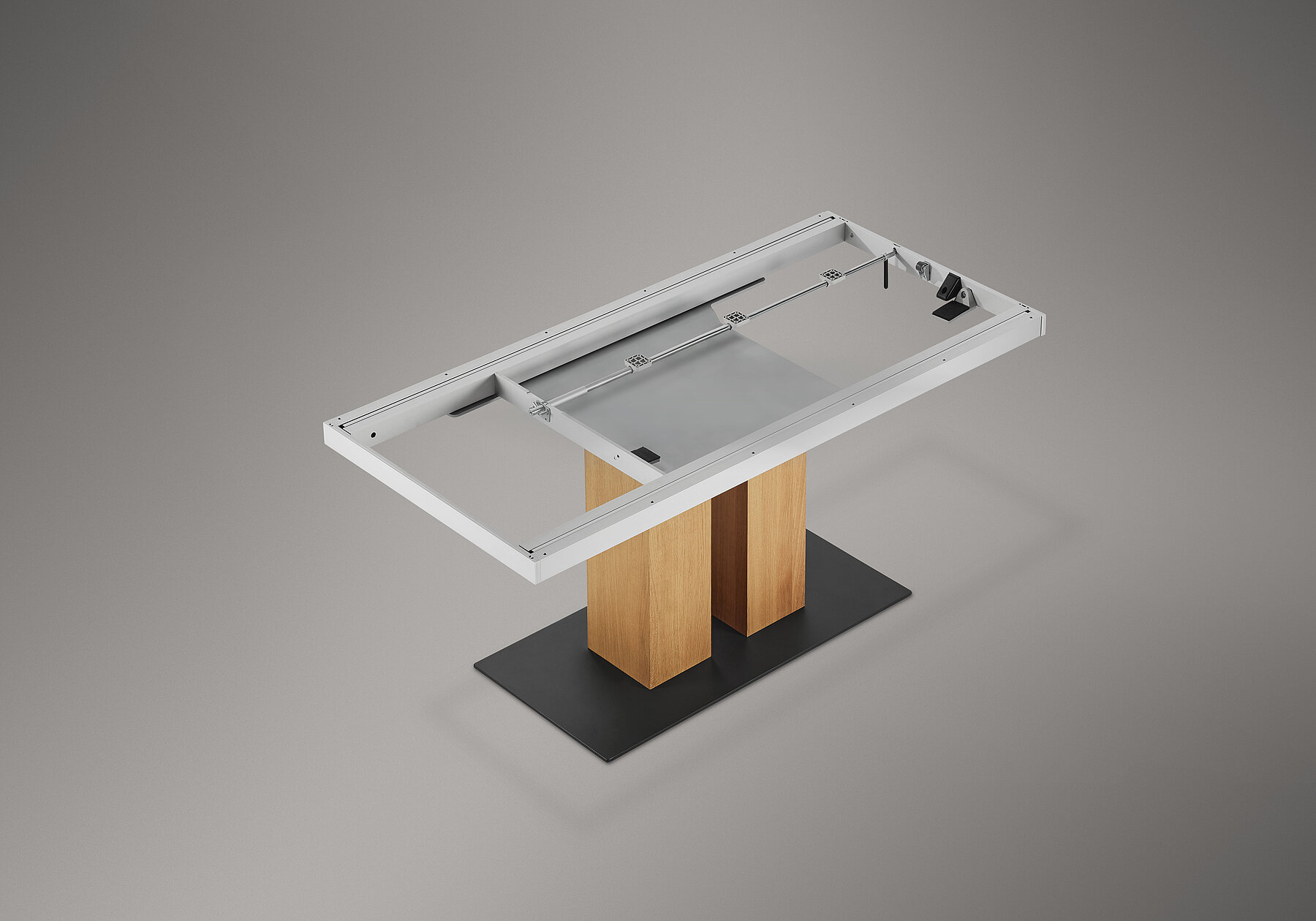

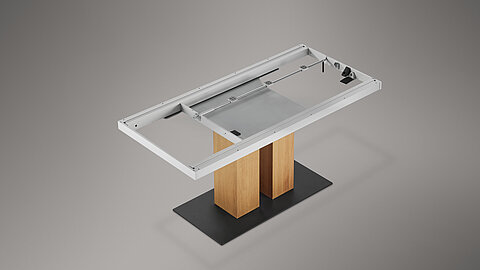

The ALU 55 SLIDER slide system is suitable for tables with a central base unit and bracket leg. The ALU 55 SLIDER thread positions for the connection to the substructure can be individually selected.

Outdoor

Outdoor compatible (without brake)

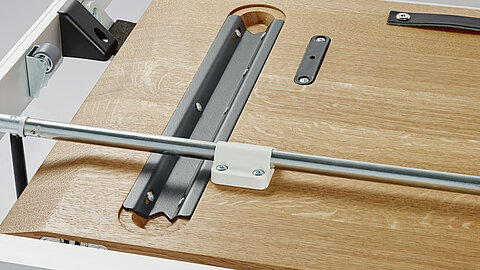

Brake & Accessories

Optimize the ALU 55 SLIDER slide system with a high-quality rope brake. Round off your product with matching movement and convenience accessories: Can be combined with matching accessories such as the FM/FM Stop folding mechanism or, for wooden frames, with FFM flat folding mechanism. Please contact us.

Installation height

about 58 mm

Recommended table length

1,400 – 2,400 mm, closed

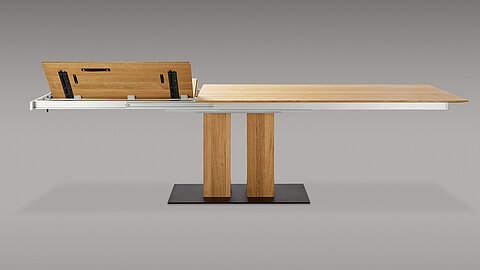

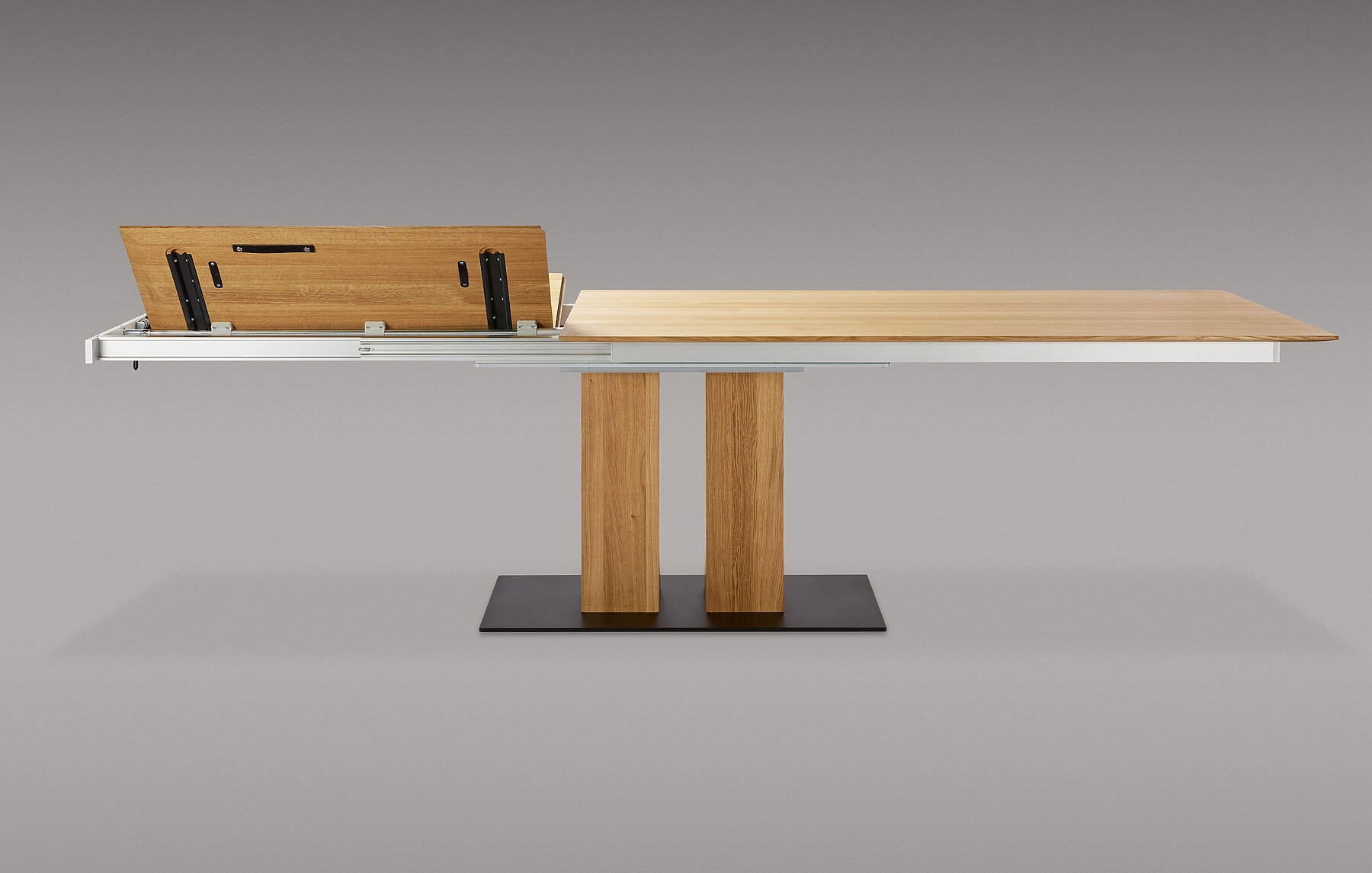

Insert sizes

1 x 500 mm / 1 x 800 mm / 2 x 500 mm / 1 x 1,000 mm

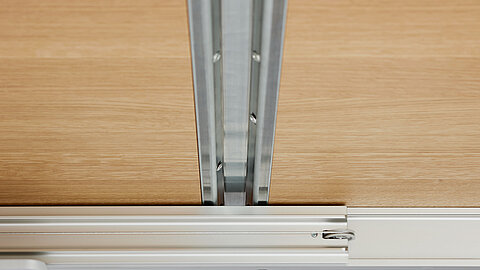

Profile and stability design

Develop your own frame and rack solution. For more information see here.

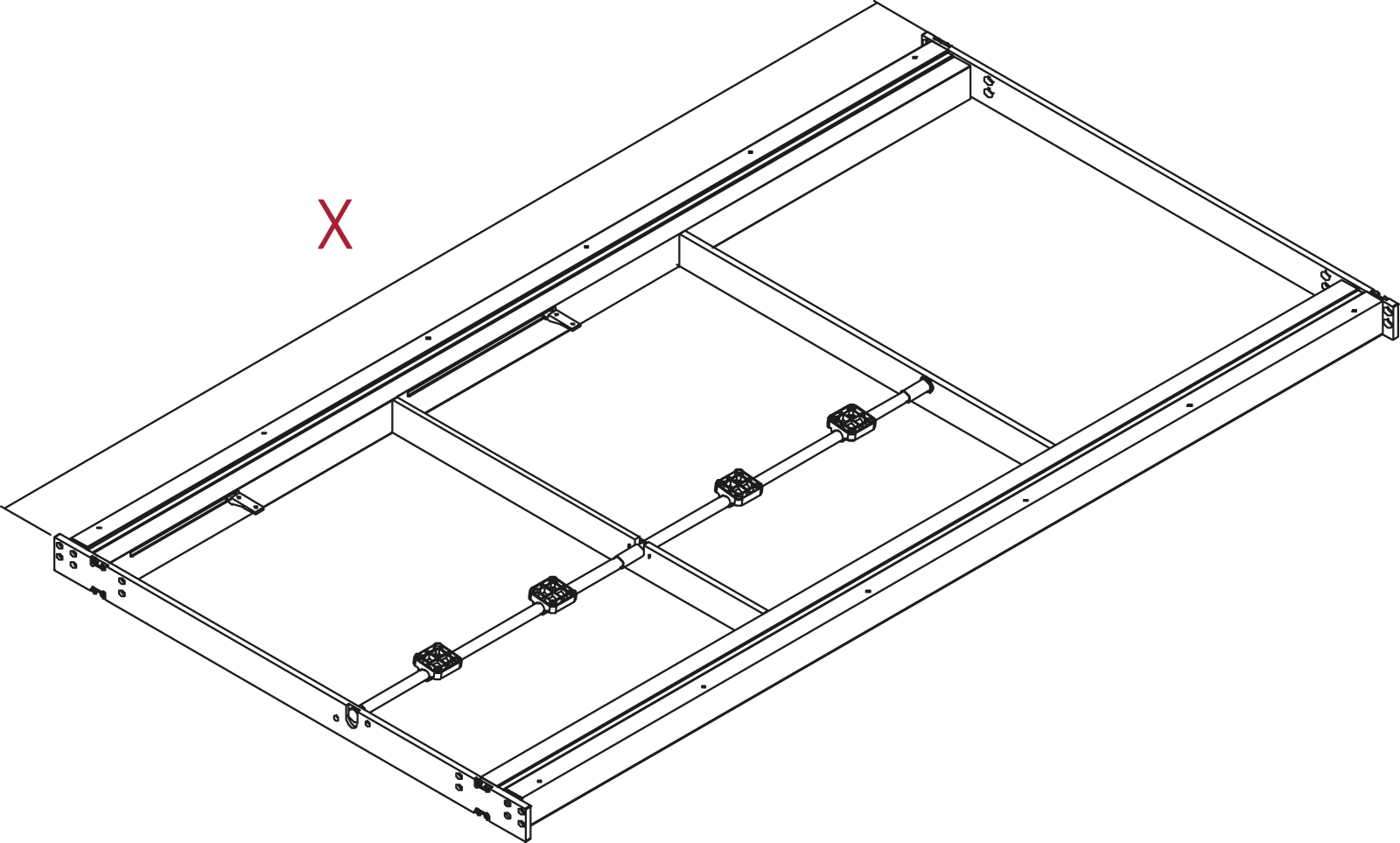

Technical drawings

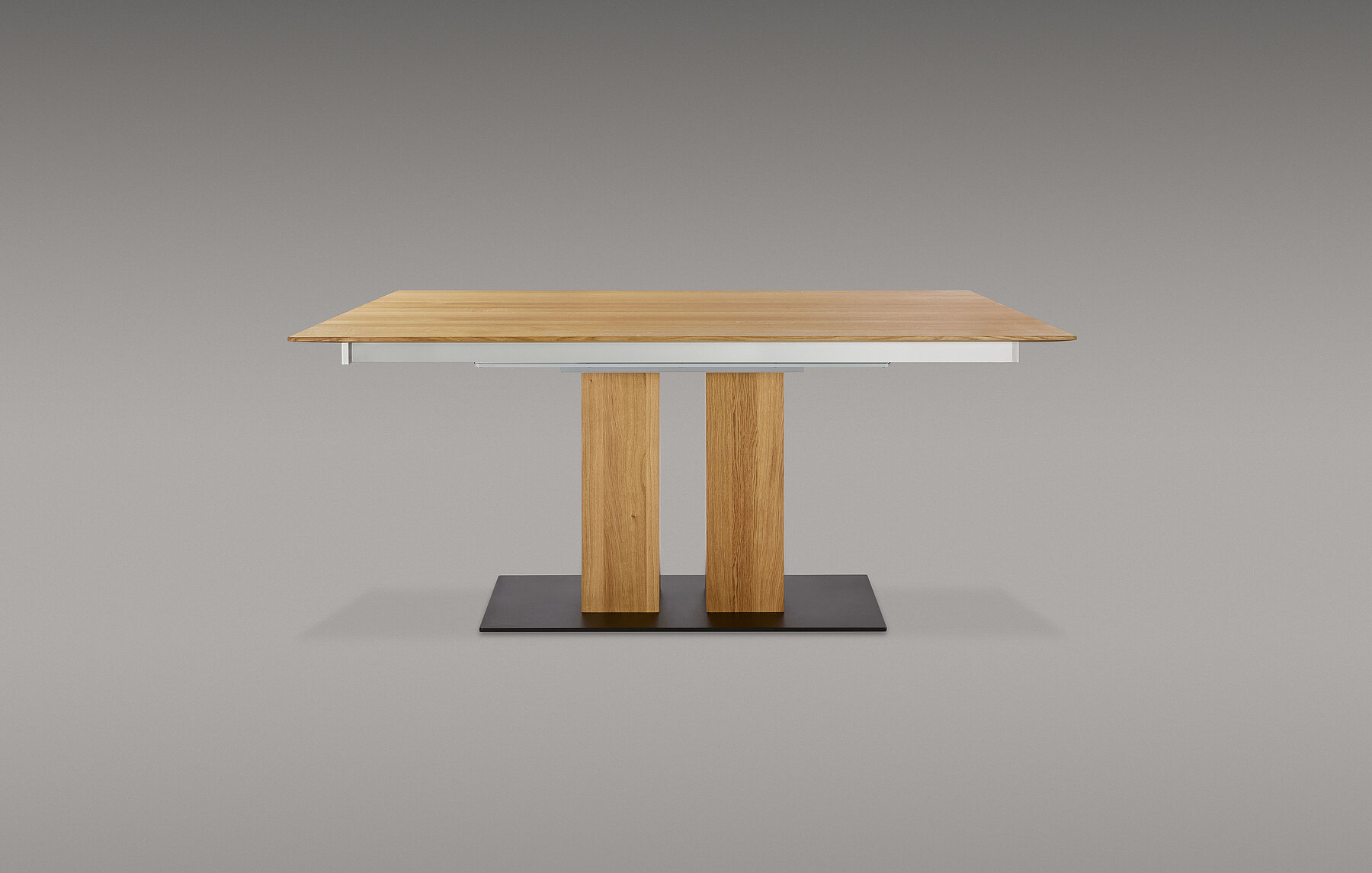

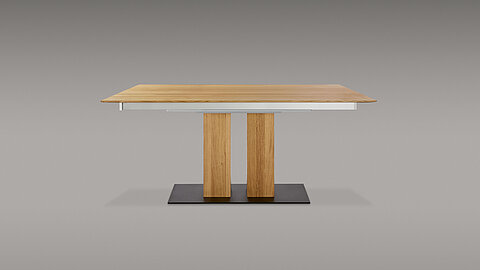

Frame construction | closed

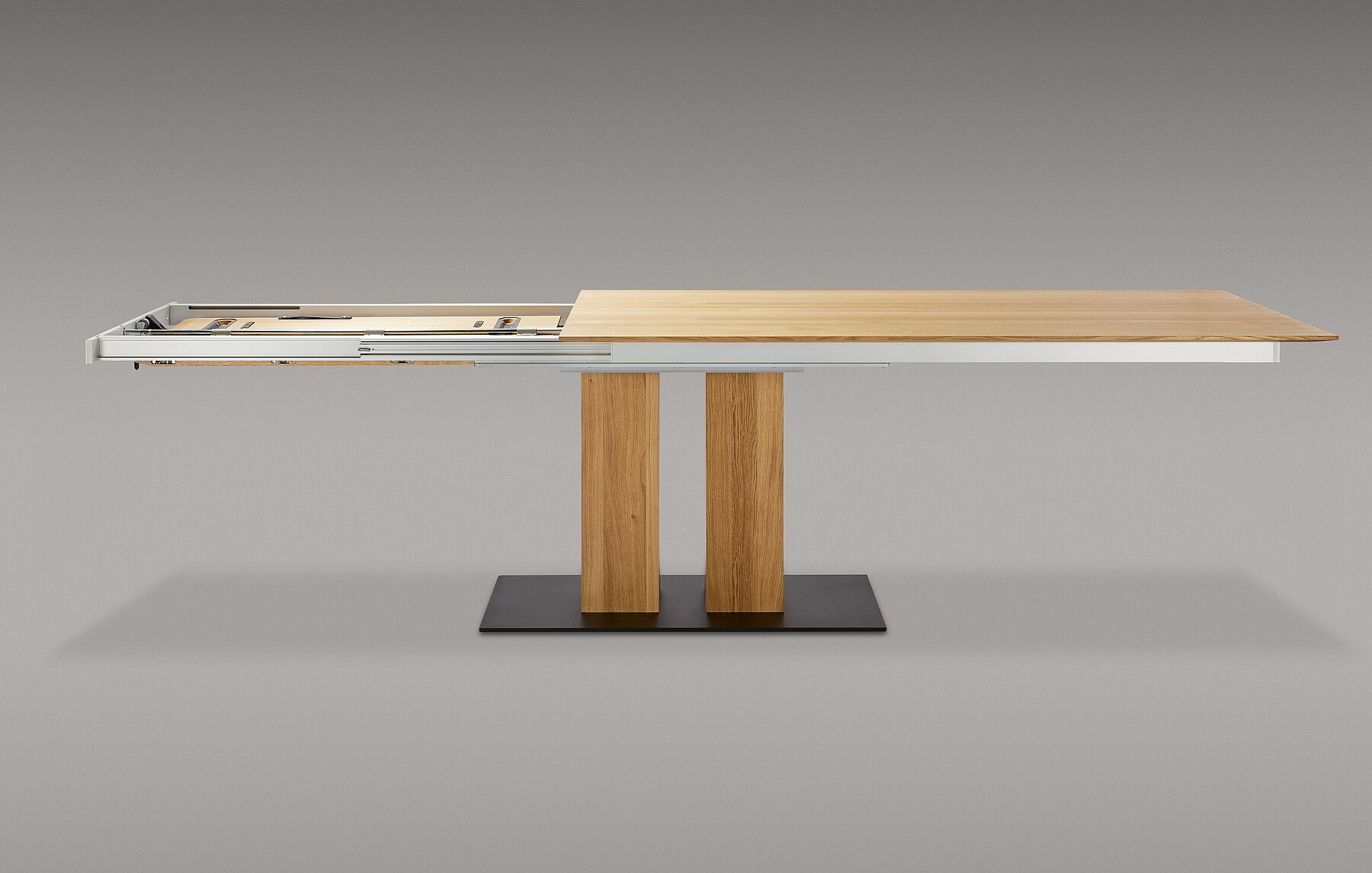

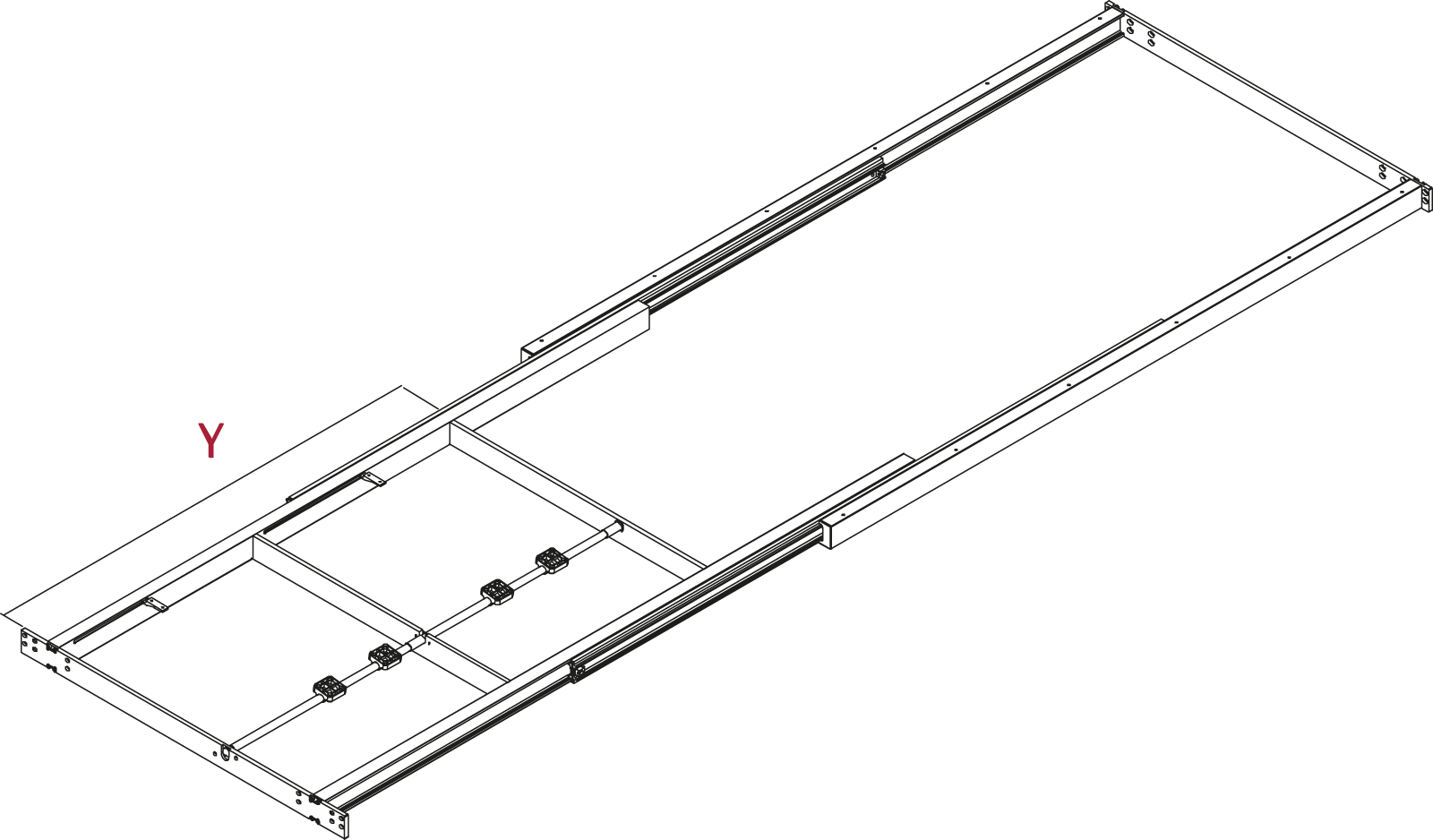

Frame construction | open
